Gateway 7400 - Manual (Page 82)

74 Replacing and Adding System Components
6 Carefully remove the fan from the chassis.
7 Disconnect the fan power cable from the connector on the system board.
Note where the connector was attached.

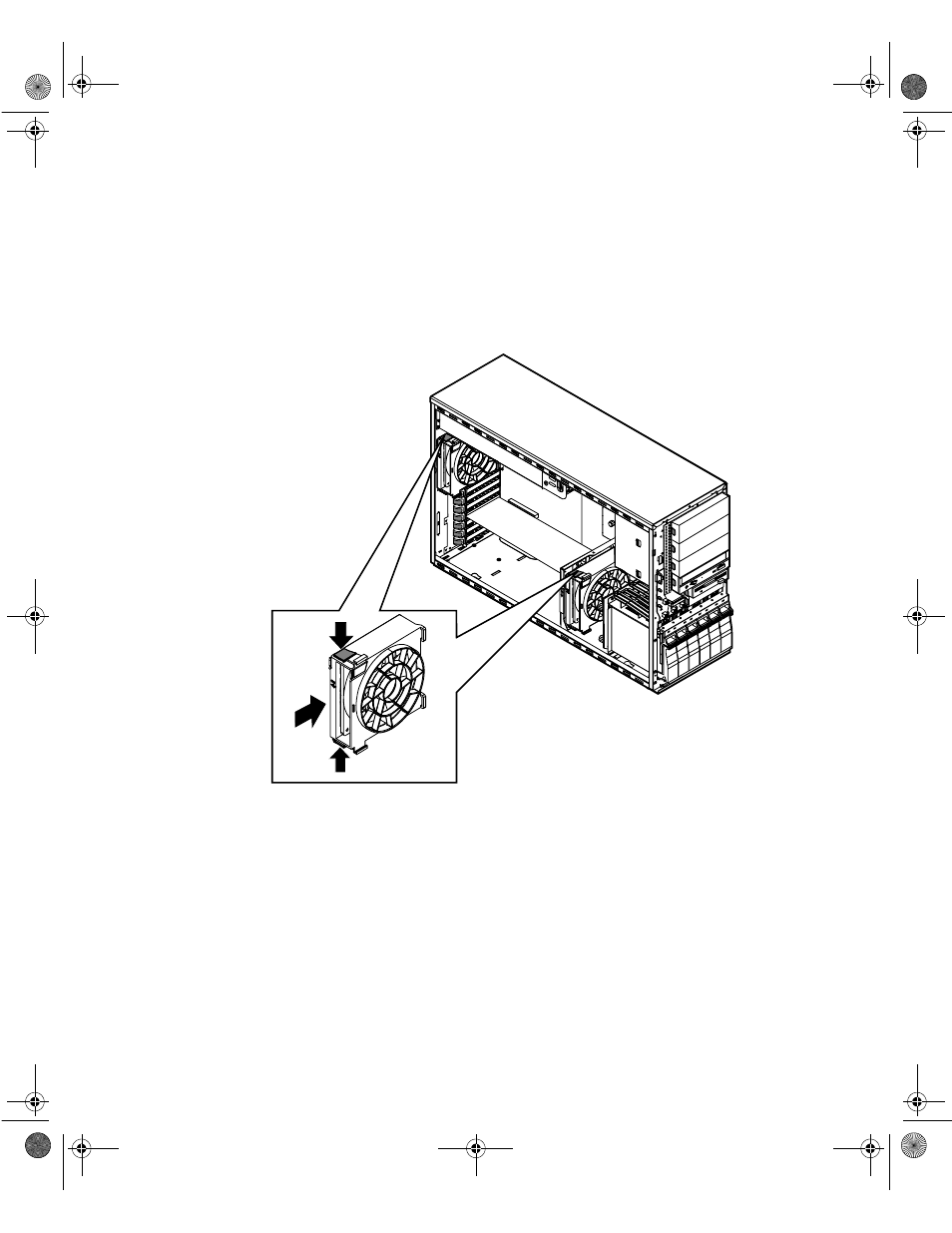

8 Place the new fan bracket unit into the chassis by engaging the two
retaining tabs with the tabs on the back panel or the hot-plug cage and
the release tabs with the appropriate slots.
9 Connect the fan power cable to the appropriate connector on the system
board.
10 Replace the bezel. (See “Replacing the bezel” on page 28.)
11 Close the case. (See “Closing the case” on page 27.)
12 Reconnect the power cord, the modem cord, and all other peripherals,
then turn on the system.
