Vertical search function – Furuno CH-300 User Manual
Page 94
5. MENU OPERATION
5-8
When you find a target of interest on the horizontal display, simply press the
function key programmed for VER. SEARCH to get a cross-sectional view of
the vertical plane. This mode is useful for evaluating fish school concentration
and location of the targeted fish school or for assistance in navigation.

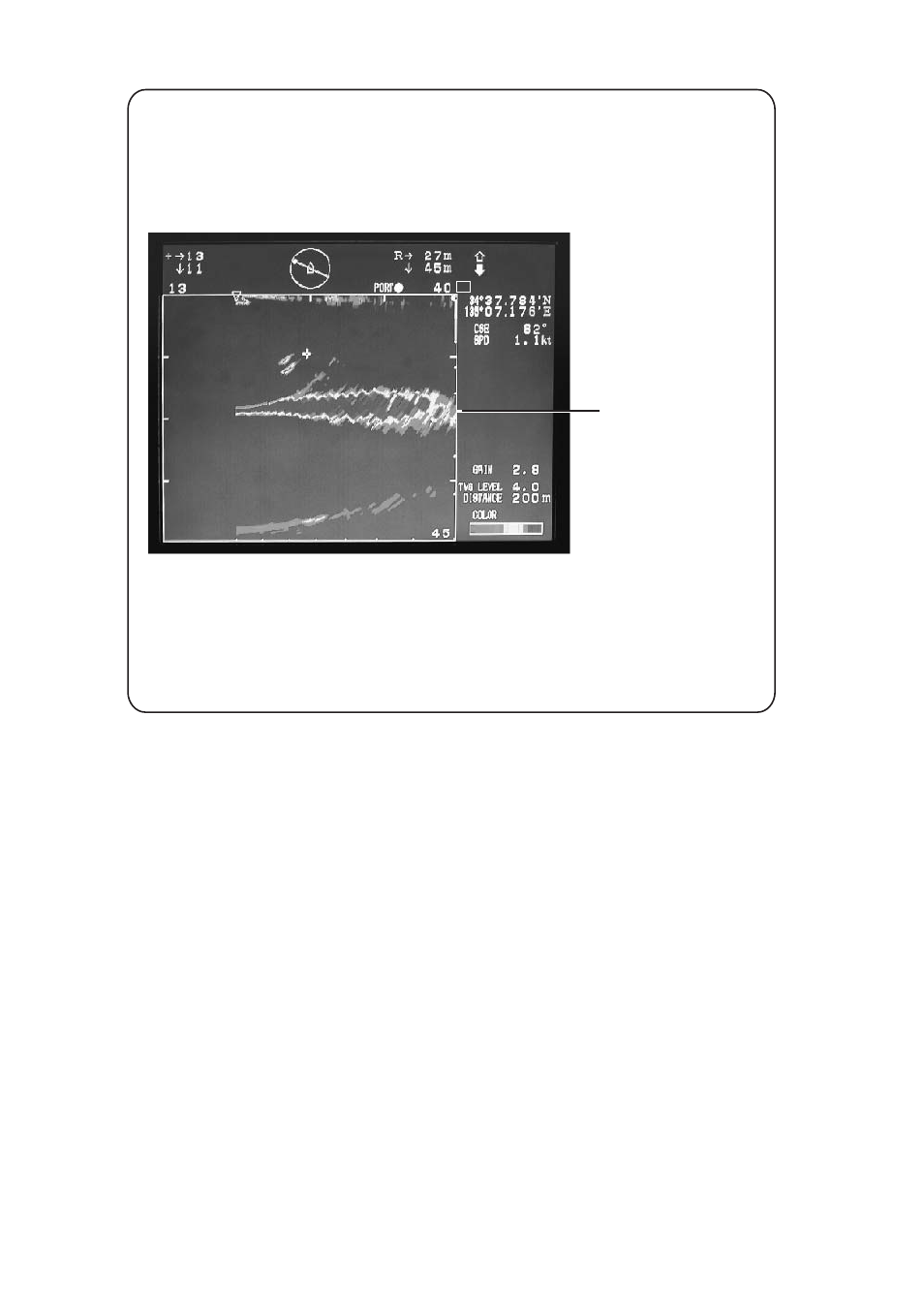

VERTICAL SEARCH FUNCTION
The vertical search picture is drawn using the following specifications:
- Horizontal range:
Same as set on horizontal mode
- Vertical range:
Same as set on horizontal mode
- Train marker:
Train angle at the moment function key is turned on
- Vertical scan display range: 0-90 degrees (own ship position shifted leftward)
Fish
School
HI
