System configuration, Viii – Furuno CH-300 User Manual
Page 10
viii

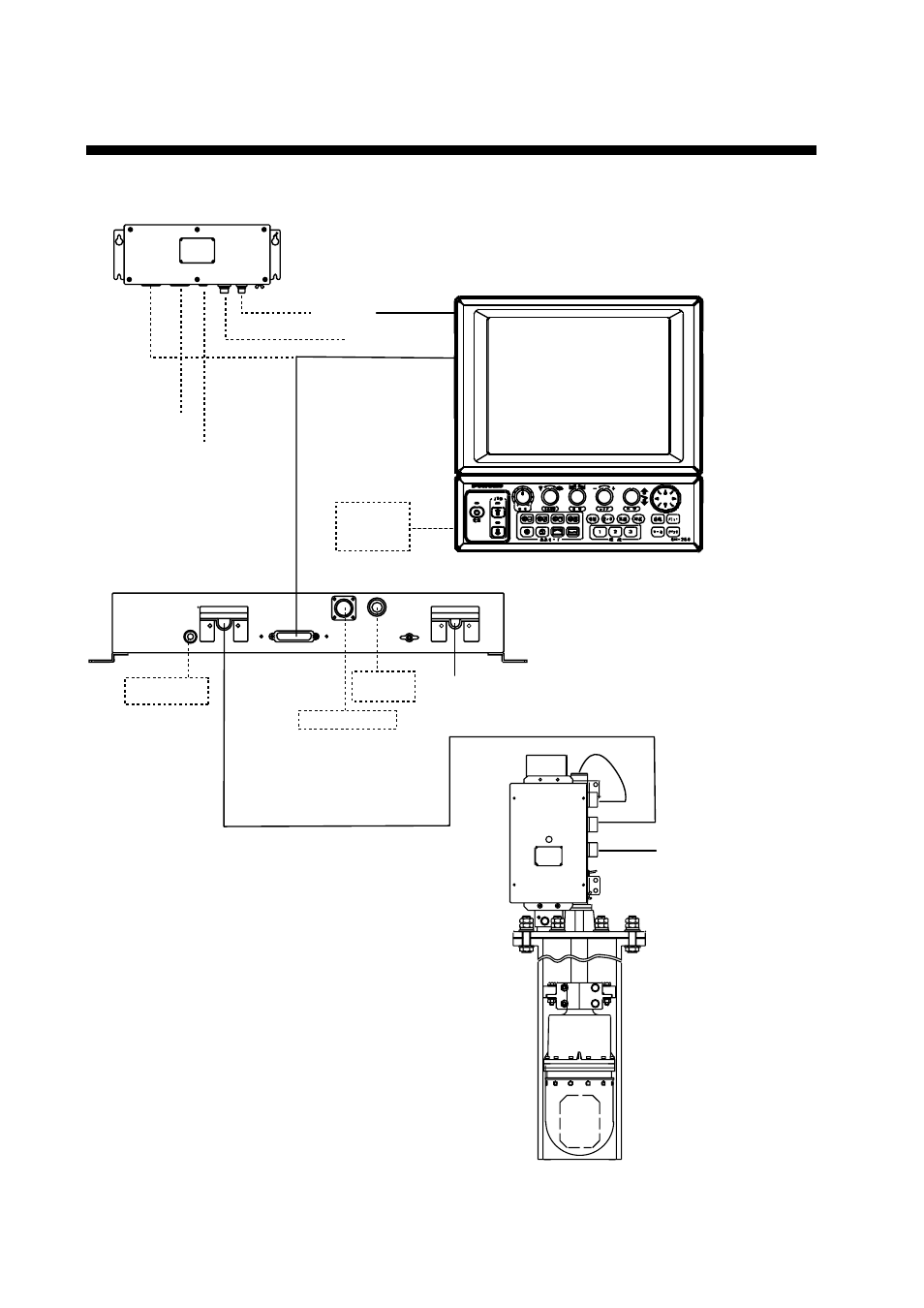

SYSTEM CONFIGURATION
Note 1: MU-100C is the standard supply
monitor unit. An external monitor
may be connected via the
interface unit (option). The drawing
above shows the system configuration
with the MU-100C.
Note 2: For blackbox type, MU-100C is
not supplied. Connect external
monitor (user supply) and control
unit to the interface unit.
When Monitor MU-151C is connected,
this interface is not necessary.
INTERFACE UNIT IF-8000
SPEAKER
HULL UNIT
CH-304
CH-305
12-24 VDC
12-24 VDC
Speaker
Motion Sensor
VGA Ext.
Monitor
Control Unit
Display
Unit
Navigator
CONTROL UNIT/MONITOR UNIT CH-302/MU-100C
TRANSCEIVER UNIT
CH-303
Remote
Controller
CH-256
Satellite
Compass
CONTROL UNIT CH-302
MONITOR UNIT
MU-100C
System configuration
