2. HORIZONTAL MODE
2-25
2.15.2 Sample displays
This section provides various examples of horizontal mode displays. The appearance of
actual fish echoes will vary according to factors such as transmission frequency, gain and
TVG settings, and bottom composition and contour.

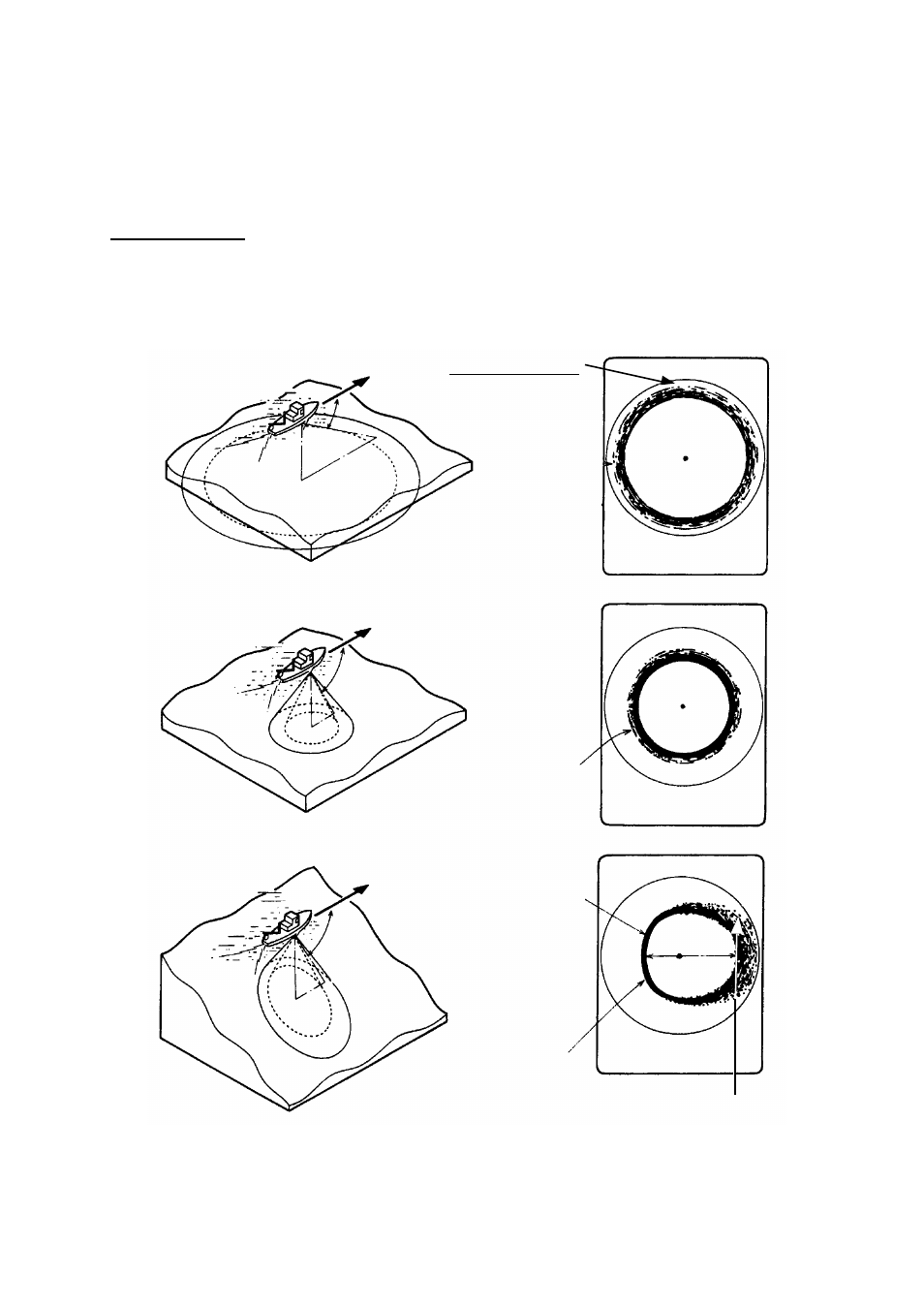

Bottom echoes
When the tilt angle is changed, the bottom echo illustrated below will appear on the display.
When the tilt is decrease (toward 0
°), the bottom trace becomes winder and weaker. By
observing the bottom condition on the display, the skipper can prevent net damage.
(A) Flat bottom
Tilt angle: 10
°
to 15
°
(B) Flat bottom
Tilt angle: 20
°
or more
(C) Sloping bottom
Tilt angle: 20
°
or more
Bottom
Shallow bottom
is displayed in
a strong color
and with a
short tail.
Bottom is displayed
narrower and in
stronger colors when
compared to (A).
Decreased tilt angle
Only half of
vertical beam width
captures the bottom.
The deeper, sloping
bottom echo is displayed
in a weak color and
with a long tail.
Bottom echoes
