Page 116
6. MAINTENANCE, TROUBLESHOOTING
6-8
6.9 Test
Pattern
A test pattern can be displayed to check for proper display of colors.
1. Press the MENU key to open the menu.
2. Press ▲ to choose MENU, and then press ► to choose SYS.
3. Press ▼ to choose GO TO SYS MENU.
4. Press ◄ to choose YES.

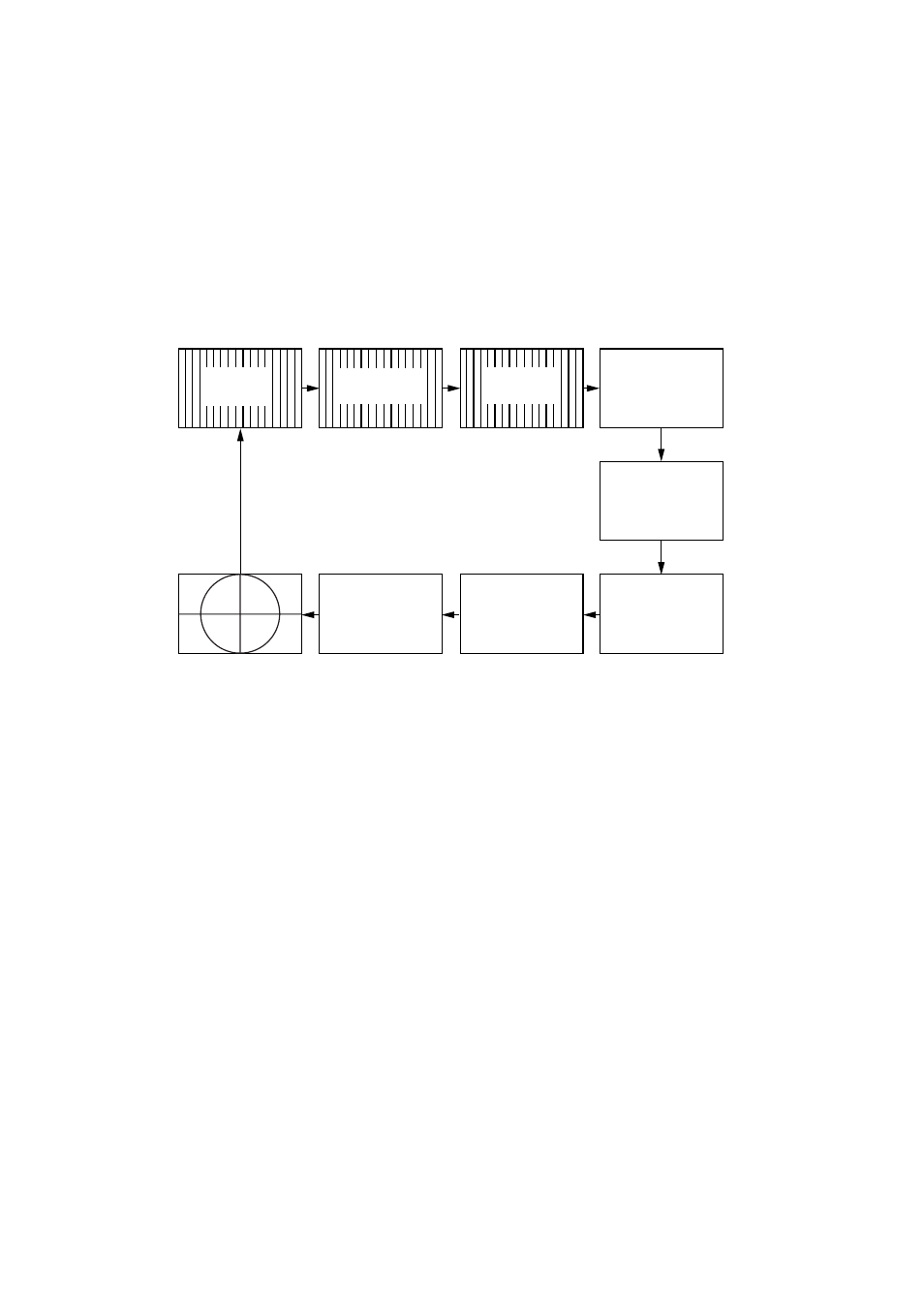

5. Choose TEST PATTERN and press ► to display the test pattern. Press ► again to
change the test pattern. The pattern changes in the sequence shown below with each
press of ►.
BLUE
GREEN
BLACK
WHITE
RED
16 tones
of RED
16 tones
of GREEN
16 tones
of BLUE
Test pattern
To quit the test pattern, press the MENU key.
