1. OPERATIONAL OVERVIEW
1-8

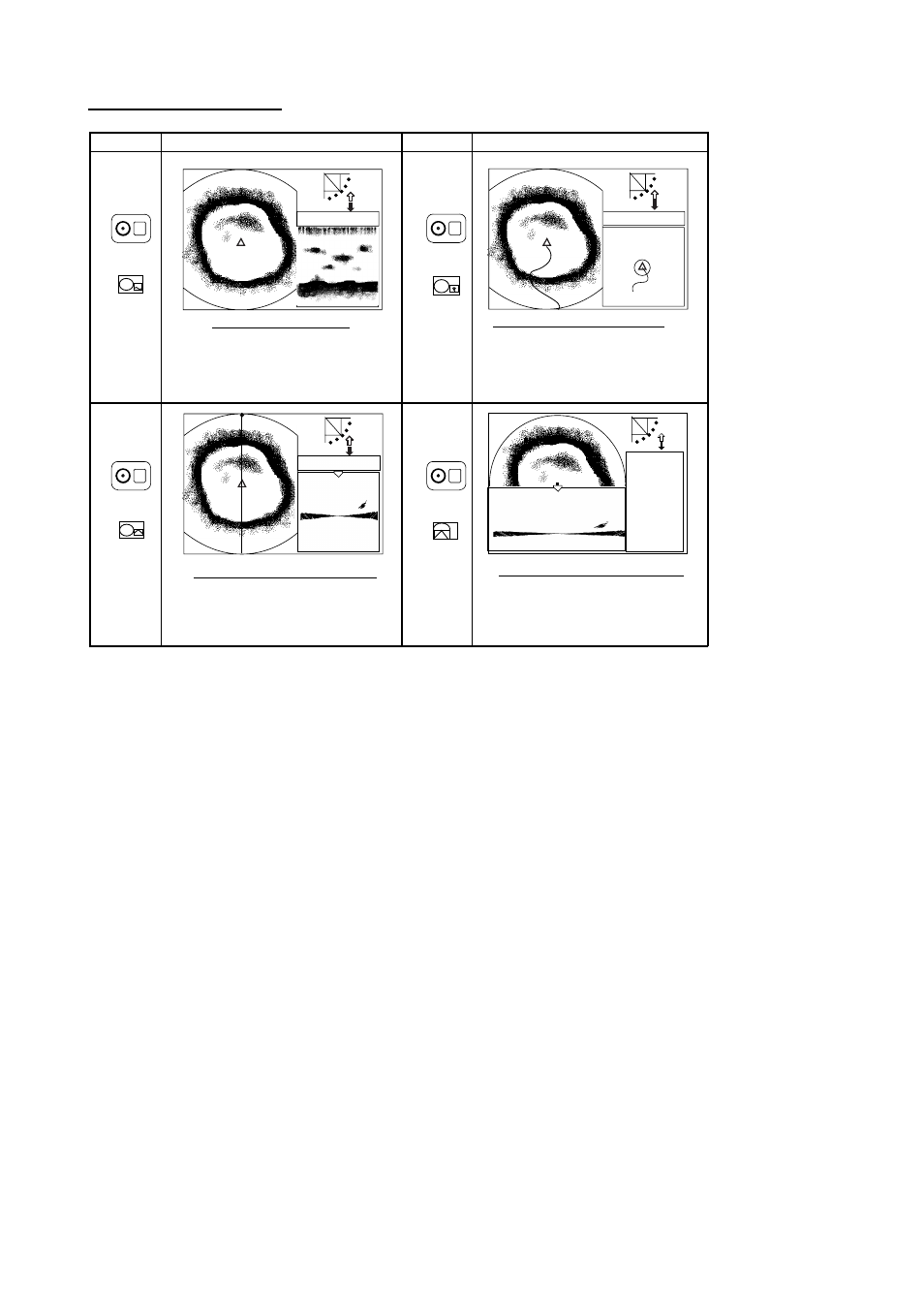

Combination displays
Key Key
NAV DATA
HORIZONTAL/HISTORY
The horizontal picture appears in the main
window; the history picture in the sub
window. Useful for showing history of fish
movement, distribution. (Chapter 2)
Display
NAV DATA
HORIZONTAL/VIDEO PLOTTER
The horizontal picture appears in the main
window and the video plotter picture, which
traces ship's track, in the sub window.
(Chapter 2)
NAV DATA
HORIZONTAL/VERTICAL SCAN HORIZONTAL/VERTICAL ZOOM
The horizontal picture appears in the main
window; vertical zoom picture in the sub
window. (Chapter 3) The horizontal picture appears in the main
window; the vertical fan picture in the sub
window. (Chapter 3)
Display
+
Choose
+
Choose
+
Choose
+
Choose
NAV DATA
