3. VERTICAL SCAN MODE
3-17
Horizontal
Display
(main
window)
/////
/////
LO
HI FORE AFT
Vertical
Scan
Display
(sub
window)
34
°
12. 343' N
134
°
34. 213' W
CSE 357 °
SPD 9.9 kt
DEP 35.1 m
TMP 12.3
°
C
30
25
R 60 m
T 40
°
→1
6
↓
13
B 288
°
+
100 100
100

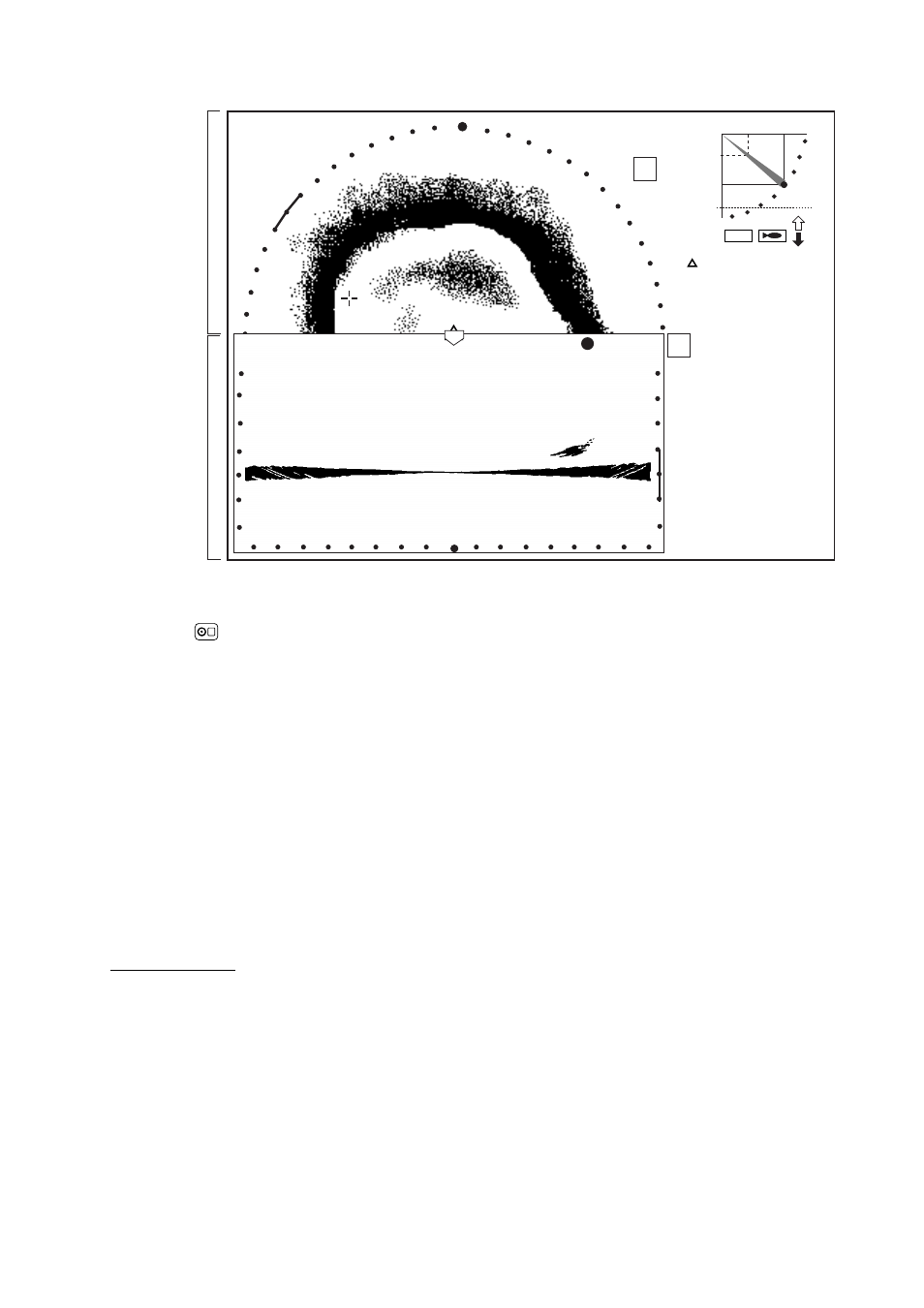

Horizontal/vertical scan display (upward-downward direction)
Press the key to choose and display the horizontal/vertical scan display. The horizontal
display appears in the main window; the vertical scan display in the sub window.
The displays are independent of each other so you can adjust them as desired. Press the
MAIN/SUB
key to choose the window to adjust. Each pressing of the key momentarily
displays MAIN WINDOW CONTROLLABLE or SUB WINDOW CONTROLLABLE at the top
of the screen. A red cursor appears in the sub window when it can be controlled. The
following controls are operative on either window: SECTOR, TRAIN, RANGE, TILT, FAST
LF/HF, MIX, SCAN
, FULL/HALF and CUSTOM MODE.
Note:
R/B, EVENT or TARGET controls may only be operated from the main window.
When you attempt to operate them from the sub window the message SELECT MAIN
WINDOW appears.
TRAIN control
For horizontal display: Sets training center direction.
For vertical scan display: Sets direction of bearing cursor shown on the horizontal mode
display.
