23

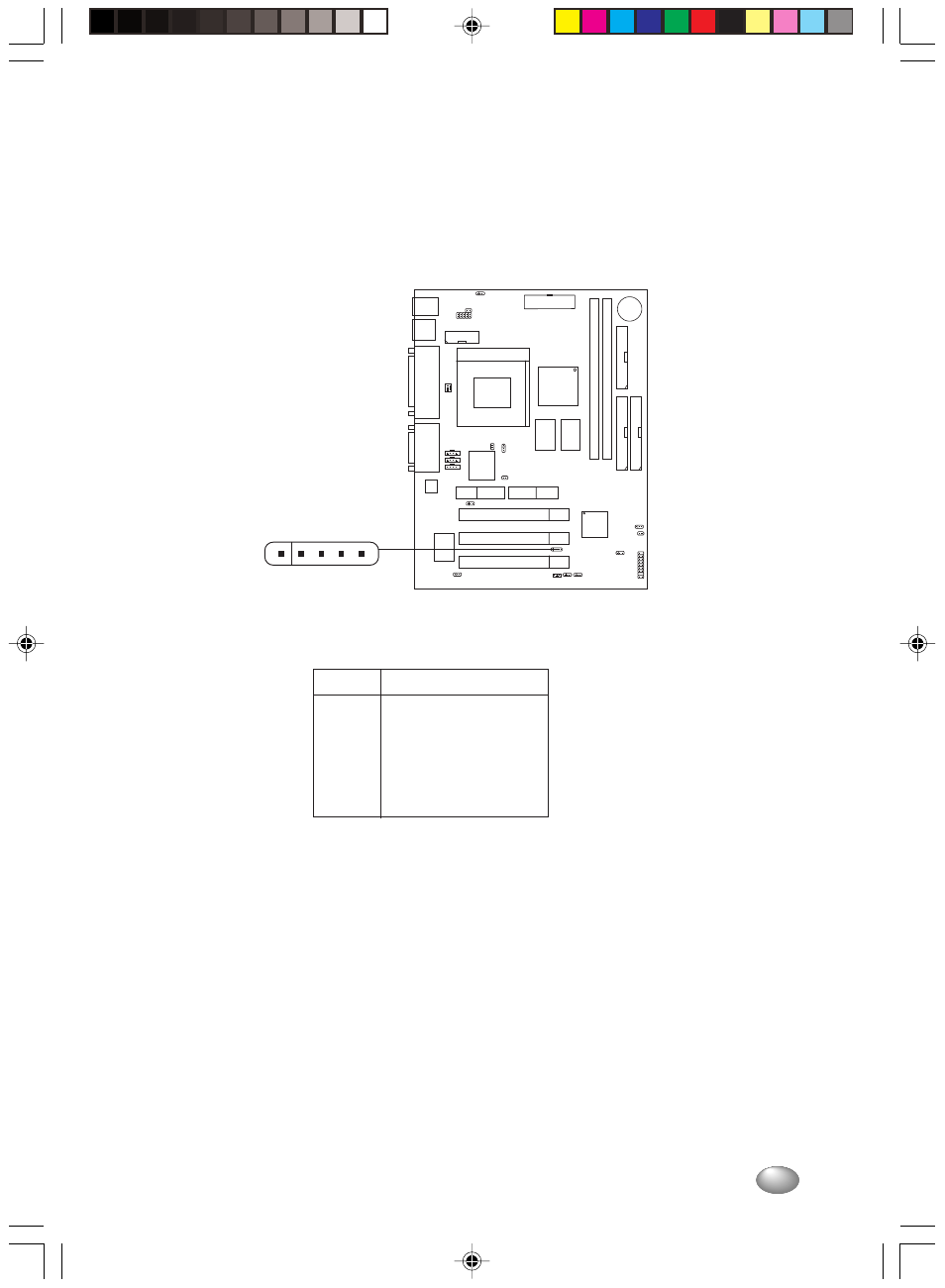

1.11 MODEM WAKE UP CONNECTOR: JMDM1
The JMDM1 connector is for used with Modem add-on card that suppor ts the
Modem Wake Up function.
JMDM1
1 5
Note: Modem wake-up signal is active “low”.
Note: To be able to use this function, you need a power supply that provide enough
power for this feature. (Power supply with 750ma 5V Stand-by)
PIN SIGNAL
1 NC
2 GND
3 MDM_WAKEUP
4 NC
5 5VSB
