Theory of Device Operation

4-16

C141-E088-03EN

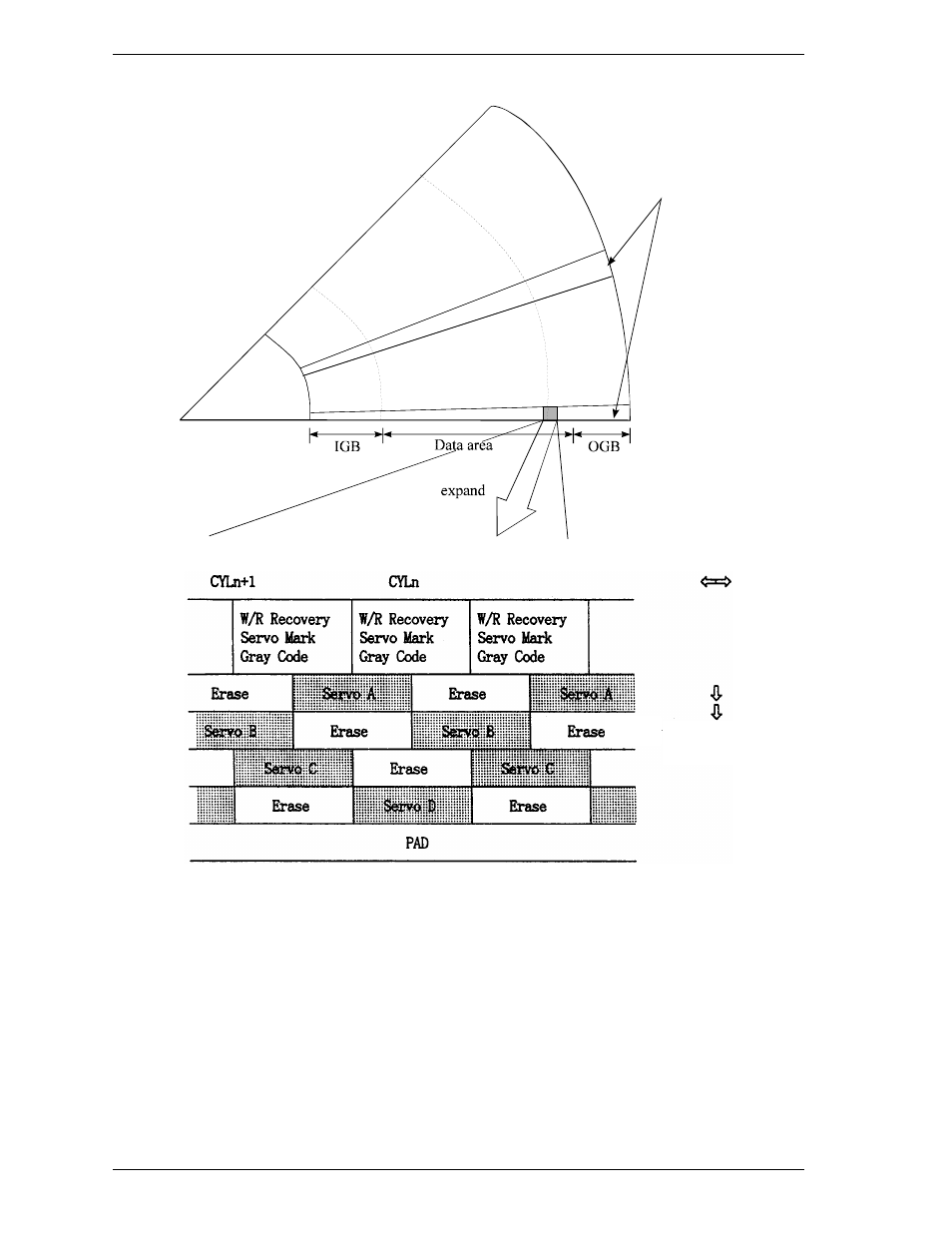

Figure 4.7 Physical sector servo configuration on disk surface

Servo frame
(66 servo frames
revolution)

Circumference

direction

Diameter
direction

Erase: DC erase area

CYL-n (n: even number)
