10 host terminating an ultra dma data out burst – FUJITSU MHK2090AT User Manual
Page 187
Interface
5-114
C141-E088-03EN
5.6.3.10 Host terminating an Ultra DMA data out burst
5.6.3.2 contains the values for the timings for each of the Ultra DMA Modes.
Note:
The definitions for the STOP, DDMARDY- and HSTROBE signal
lines are no longer in effect after DMARQ and DMACK are
negated.

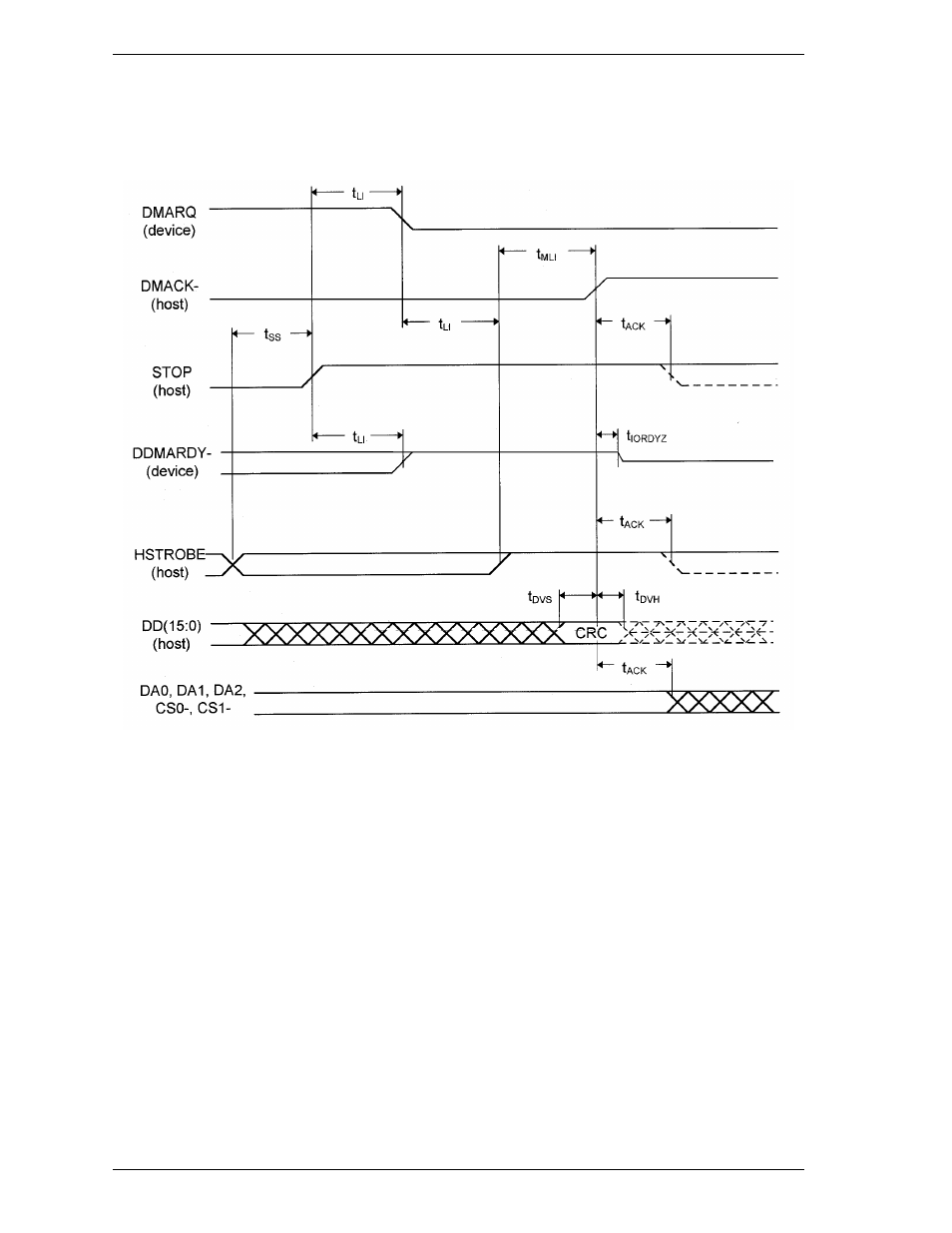

Figure 5.20 Host terminating an Ultra DMA data out burst
