Installation Conditions

3-2

C141-E088-03EN

3.1 Dimensions

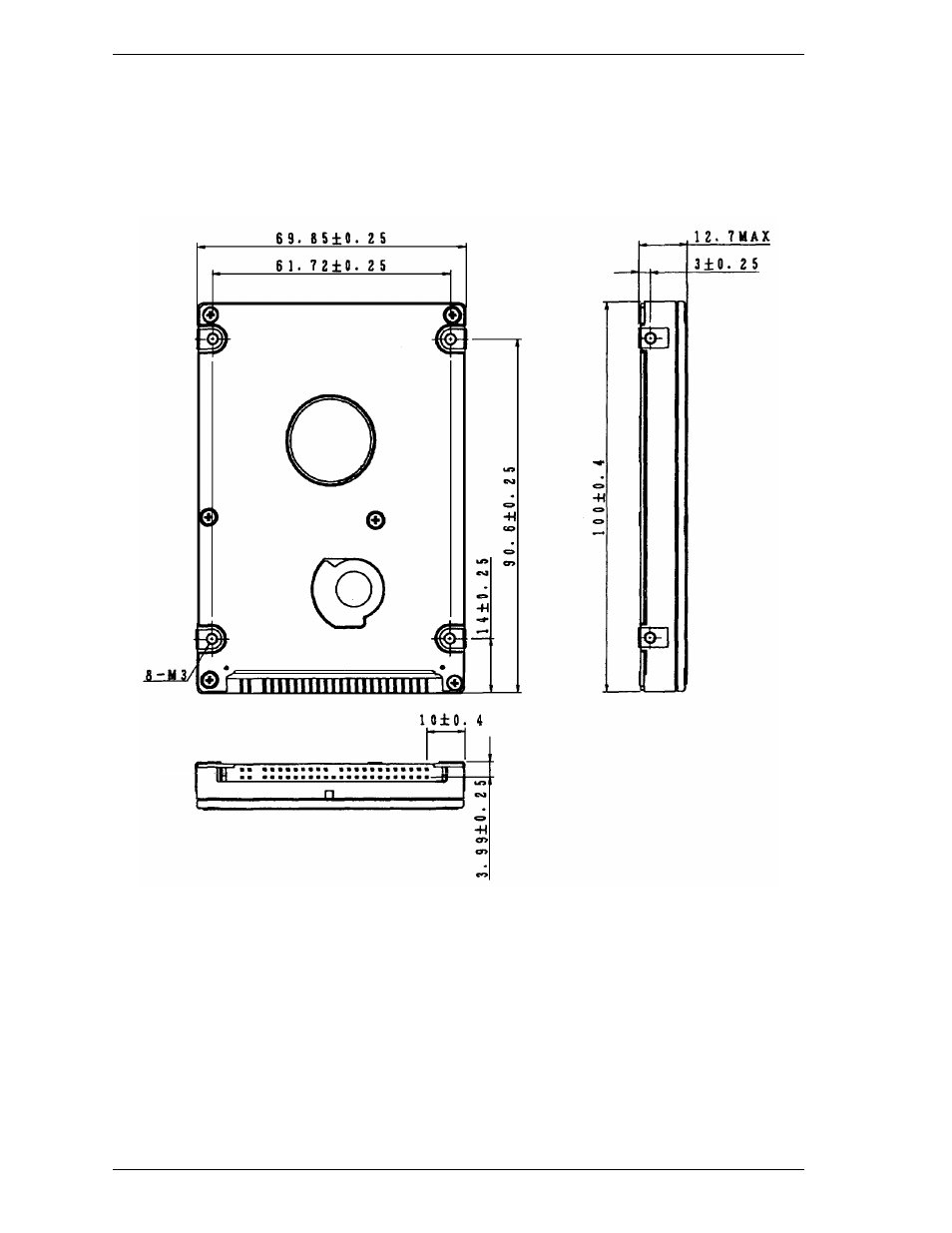

Figure 3.1 illustrates the dimensions of the disk drive and positions of the
mounting screw holes. All dimensions are in mm.

Figure 3.1 Dimensions (MHJ series) (1/2)
