FUJITSU MHK2090AT User Manual
Page 43
Installation Conditions
3-6
C141-E088-03EN
Because of breather hole mounted to the HDD, do not allow this to
close during mounting.
Locating of breather hole is shown as Figure 3.4 in both MHJ series
and MHK series.
For breather hole of Figure 3.4, at least, do not allow its around
φ
3
to block.

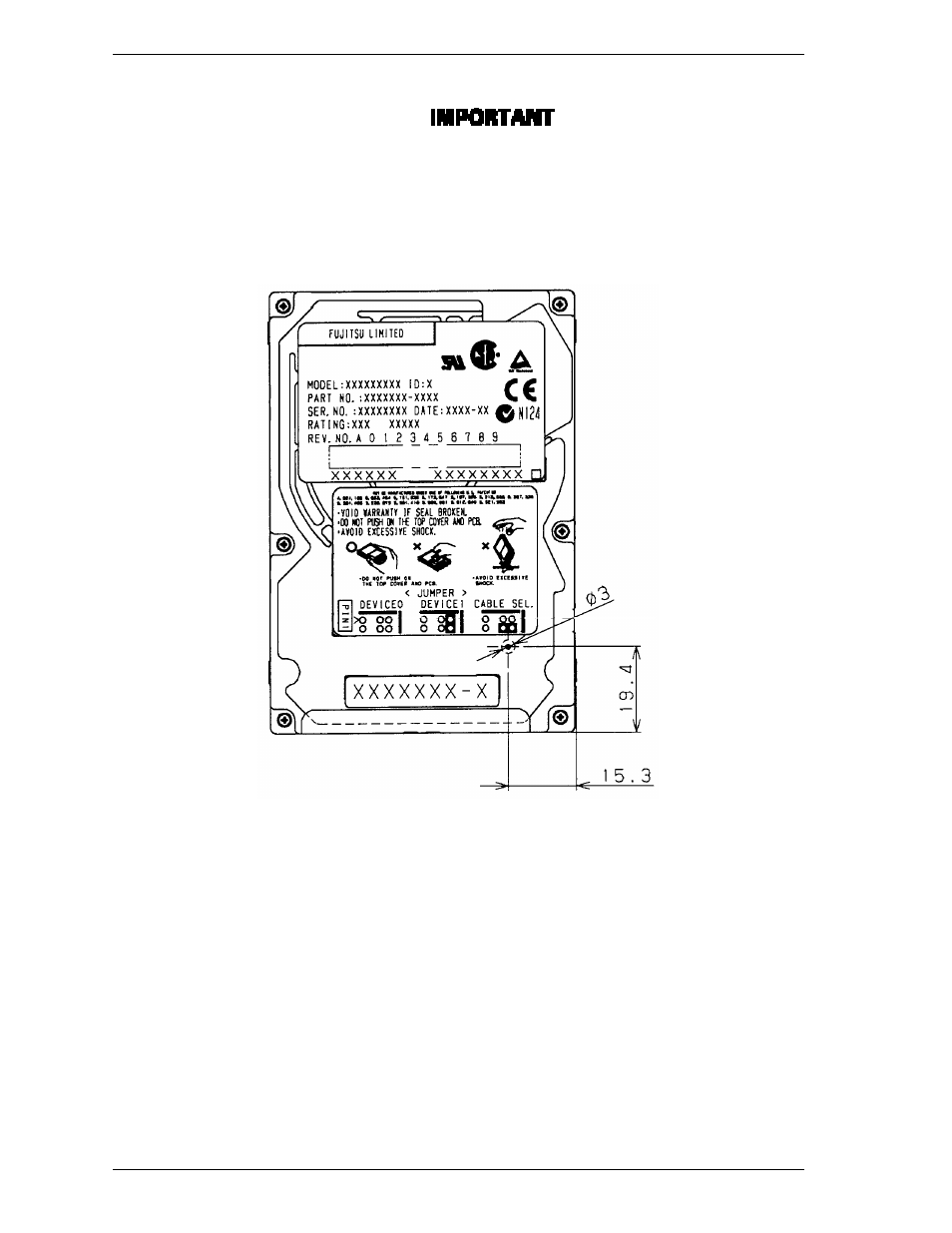

Figure 3.4 Location of breather
