Page 54

Installation Conditions

3-10

C141-E239

3.3.2 Signal segment and power supply segment

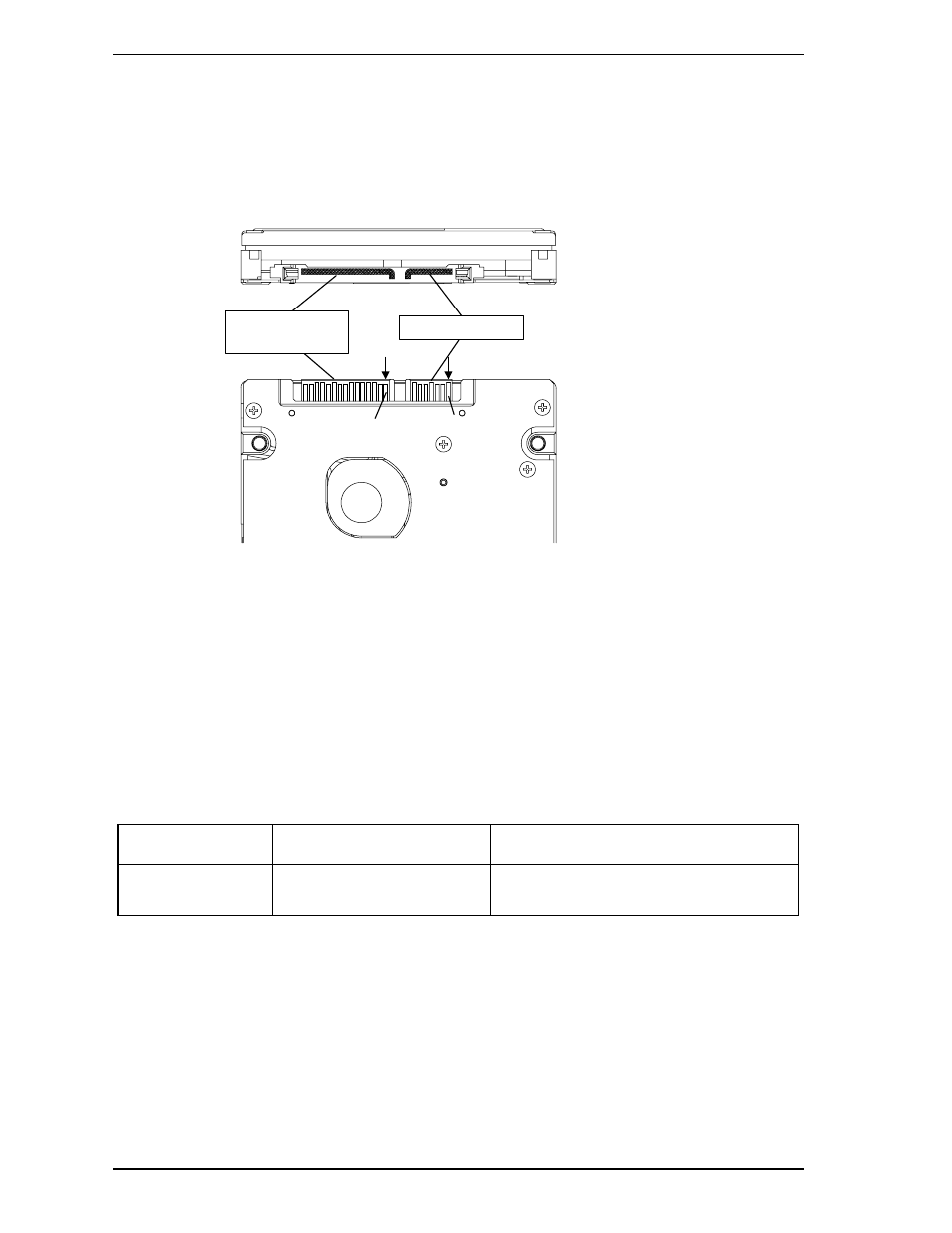

Figure 3.9 shows each segment of the SATA interface connector and pin
numbers.

Power supply

segment

P1 pins in the power

supply segment

S1 pins in the signal

segment

View from the
connector side

View from the
PCA side

Signal segment

Figure 3.9 Power supply pins (CN1)

3.3.3 Connector specifications for host system

Table 3.2 lists the recommended specifications for the host interface connectors.

Table 3.2 The recommended connector specifications for the host system

Segment Name

Model

(Manufacturer)

SATA interface
and power supply

Host receptacle

67492-0220 (Molex) or compatibles
