FUJITSU MHV2160BT User Manual
Page 48
Installation Conditions
3-4
C141-E239
(2) Frame
The MR head bias of the HDD disk enclosure (DE) is zero. The mounting frame
is connected to Signal Ground (SG).
IMPORTANT
Use M3 screw for the mounting screw and the screw length should
satisfy the specification in Figure 3.3.
The tightening torque must be 0.49N•m (5kgf•cm).
When attaching the HDD to the system frame, do not allow the
system frame to touch parts (cover and base) other than parts to
which the HDD is attached.
(3) Limitation of mounting
Note) These dimensions are recommended values; if it is not possible to satisfy
them, contact us.
Screw
Screw
Details of A
3.0 or less
3.0 or less
Frame of system
cabinet
Frame of system
cabinet
B
PCA
A
2
2.5
2.5
2.5
2.5
DE
Side surface
mounting
Bottom surface mounting

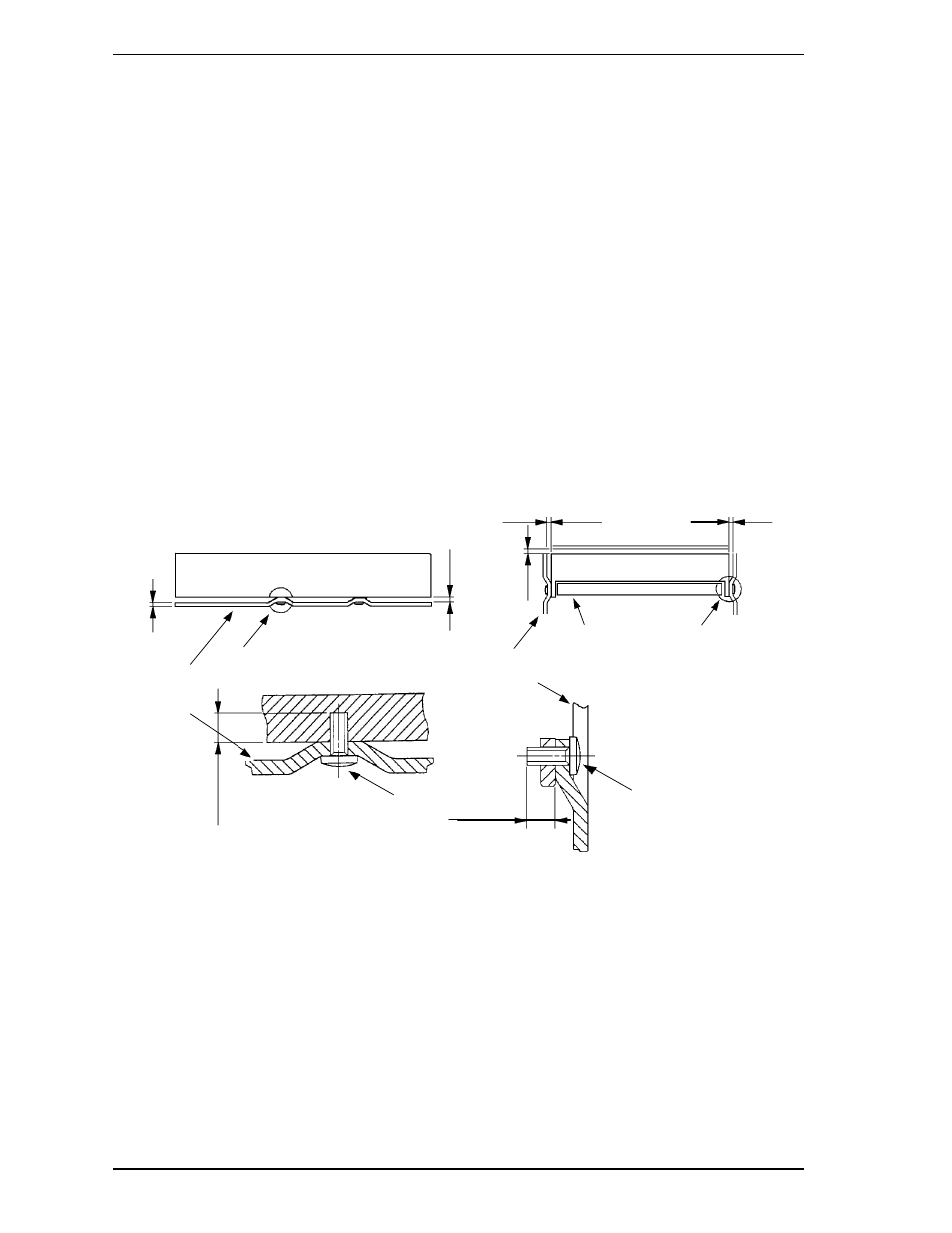

Figure 3.3 Mounting frame structure
