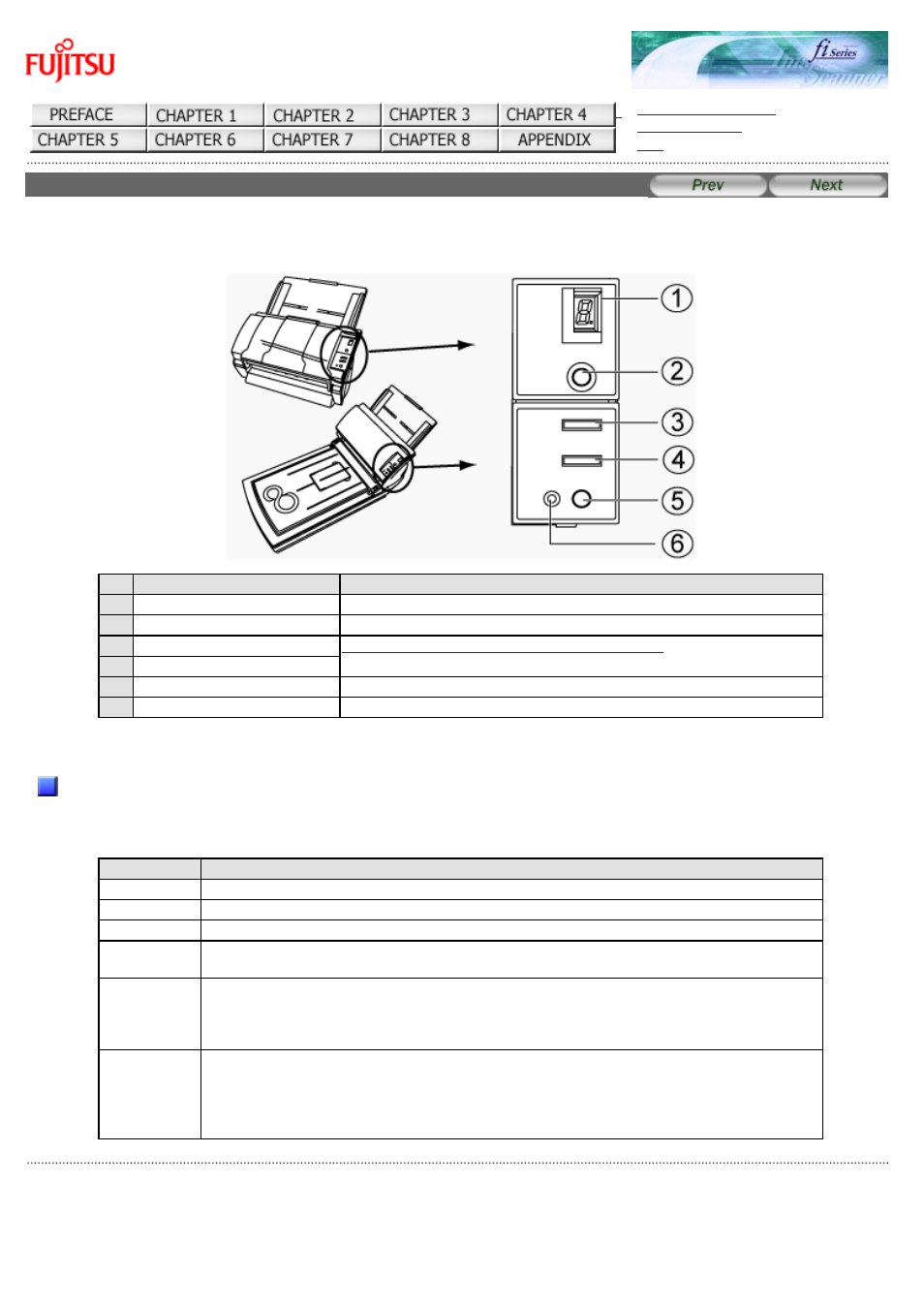

1.3 Functions of the operator panel
The operator panel is located on the right side of the scanner. This panel comprises of a Function Number display,
four buttons and a LED.
No. Name Function
1 Function Number display Indicates the function Number and error status.
2 Function Button Changes the Function activated by the Send to button (*).
3 Send to Button Launches the linked application software (*).
4 Scan Button
5 Power Button
Turns the scanner ON and OFF.
6 LED Lights when the scanner is turned ON.
*About the settings on the launcher, refer to FUJITSU TWAIN32 scanner driver help.
Indications on the Function Number display
Indication Function
8 Blinks only one time upon turning on the scanner.
P Indicates that the scanner has been turned ON and is being initialized.
0 Indicates that initialization will soon end.
1
Indicates that initialization has ended successfully. The scanner is now in "Ready
Status".
U
Indicates that a temporary error occurred when documents were being scanned. A
number appearing in alternation following the U (i.e., 1 or 2, etc.) refers to the type
of error.
To return the scanner to the ready status ("1"), press "Scan" or "Send to" button.
E
Indicates that a device (hardware) alarm has occurred during scanning of
documents. "E" and the alarm Number (0 to 9, A,c,d and F) will appear alternately.
To return the scanner to the ready status ("1"), press "Scan" or "Send to" button. If
this alarm occurs, turn the power off and on again. If the alarm continues after
turning the power on again, contact your service engineer.
