1. OPERATIONAL OVERVIEW
2
1.2 Controls
Power
switch
Control head
Card
slot
FR-2105 series radar display unit
HL
OFF
1
OFF
CENTER
4
EBL
7
TARGET
TRAILS
CANCEL
PANEL
BRILL
2
VECTOR
5
CHART
ALIGN
8
CU, TM
RESET
0
MODE
3
LOST
TARGET
6
MARK
9
A/C
AUTO
ENTER
TARGET
CANCEL
TARGET
DATA
ACQ
AUDIO
OFF
RADAR
MENU
PLOT
MENU
NAV
MENU
BRILLIANCE
A/C RAIN
A/C SEA
GAIN
OFF
ON
VRM
STBY
TX
RANGE
OFF
ON
EBL
ON
OFF
ANTENNA
PM
TUNE
DEGAUSS ERROR
#1
#2
AIS
DATA
AIS
MENU
POWER

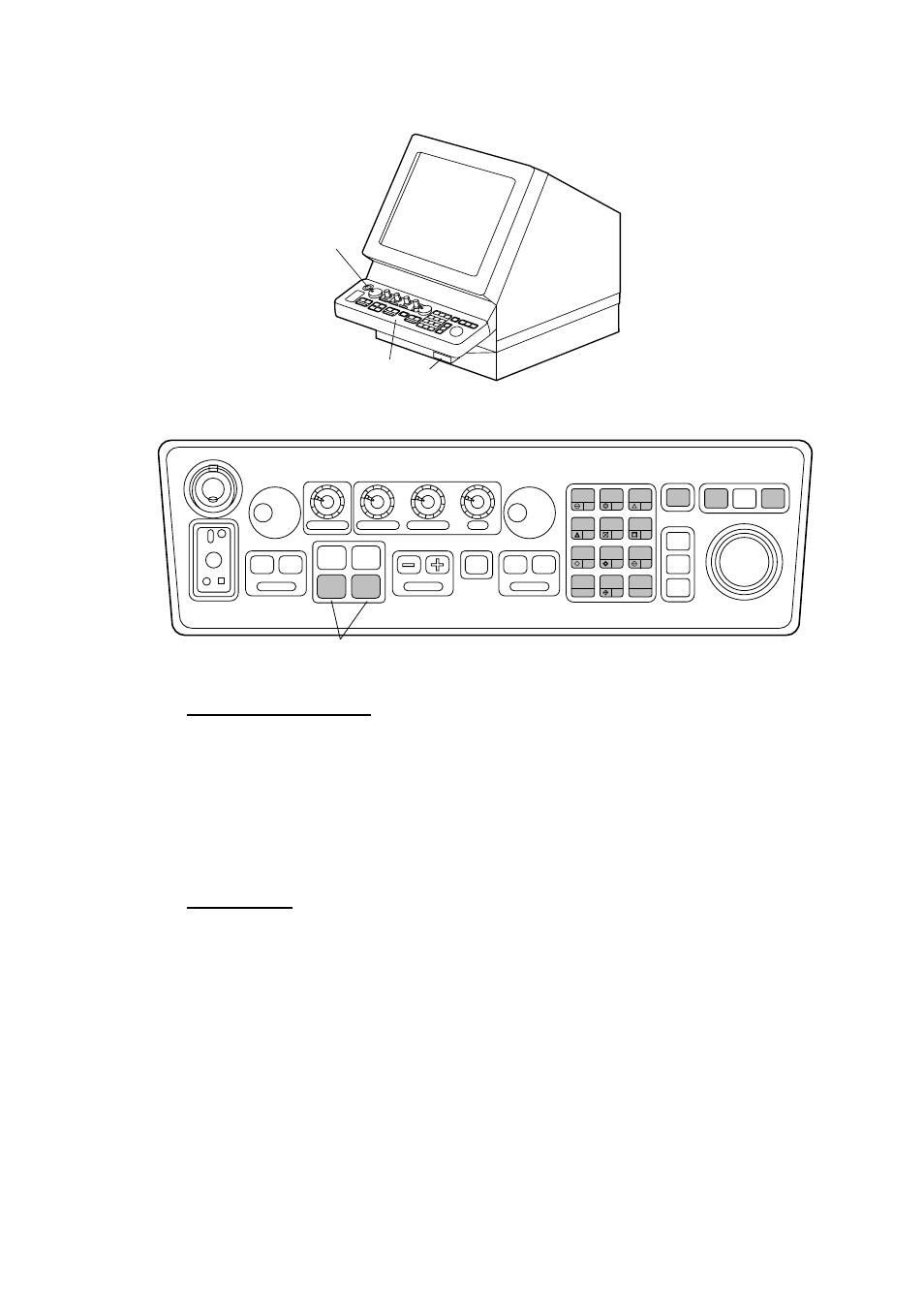

Function set and labels attached at installation
FR-2105 series control head (RP-250-related controls shaded in gray)
Video plotter controls
RADAR MENU: Open and close the radar menu.
NAV MENU:
Open and close the video plotter menu.
CHART ALIGN: Align video plotter display with radar display.
MARK: Enter
various
marks.
Numeric keys:
Enter data.
ENTER:
Terminate keyboard input.
AIS controls
AIS MENU:
Open AIS menu.
AIS DATA:
Display basic data for selected target.
AUDIO OFF:
Silence AIS-related alarms.
VECTOR:
Alternately display true and relative speed and course vector.
LOST TARGET: Erase AIS lost target marks. (ARPA lost target mark is also
erased.)
Note 1:
A single beep is produced to signify that the radar has accepted your
command. Two beeps sound in case of incorrect key operation.
Note 2:
When the NAV MENU key is pressed in the plotter/radar or plotter
mode, the message “Chart displayed is for reference only. Position
should be confirmed against nautical charts.” appears. Use the
electronic chart as an aid to navigation.
