VDO - UAIS VHF Data-link Own-vessel report
!AIVDO,x,x,x,x,s--s,x*hh
| | | | | | |
| | | | | | +--- 7
| | | | | +----- 6
| | | | +-------- 5
| | | +------------ 4
| | +-------------- 3
| +---------------- 2
+------------------ 1
1. Total number of sentences needed to transfer the message, 1 to 9
2. Message sentence number, 1 to 9
3. Sequential message identifier, 0 to 9
4. AIS channel Number
5. Encapsulated ITU-R M.1371 radio message
6. Number of fill-bits, 0 to 5
7. Checksum

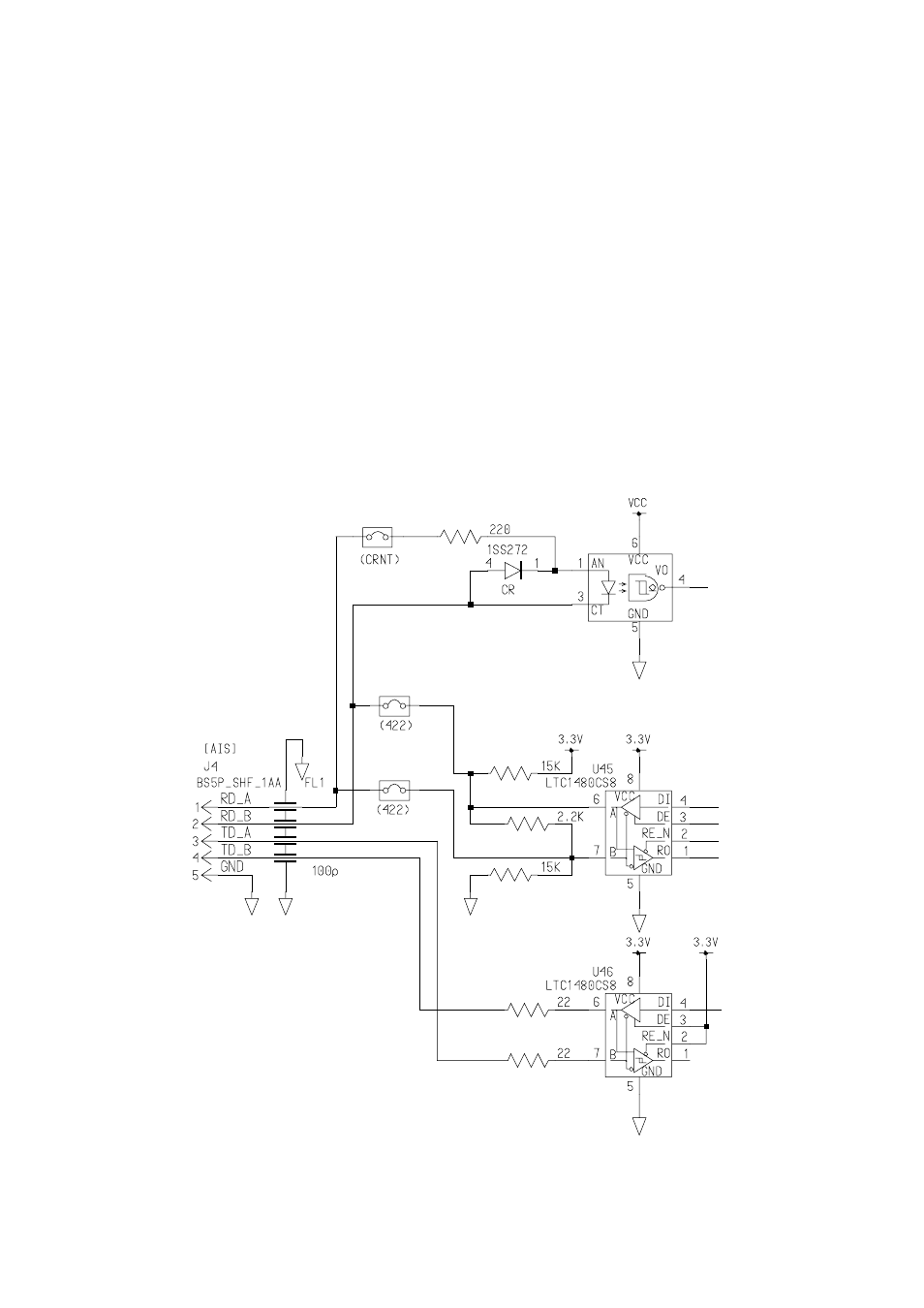

Schematic diagram
R138
JP2
JP3
JP4
R19
R11
R10
R13
R12
PC400
U61
7
Load requirements as listener
220 ohms
