1. OPERATIONAL OVERVIEW
5
1.5 Charts
This section shows you how to display charts and correct their position.
Both the chart card and memory card are susceptible to sunlight. Handle them
carefully, following the guidelines below.
•
Keep them away from direct sunlight and heat sources.
•
Keep cards away from water and chemicals.
•
Keep the connector free of foreign material.
•
Do not drop the cards.
1.5.1 Displaying a chart
To display a chart, do the following:
1. Insert the chart card in the upper slot.

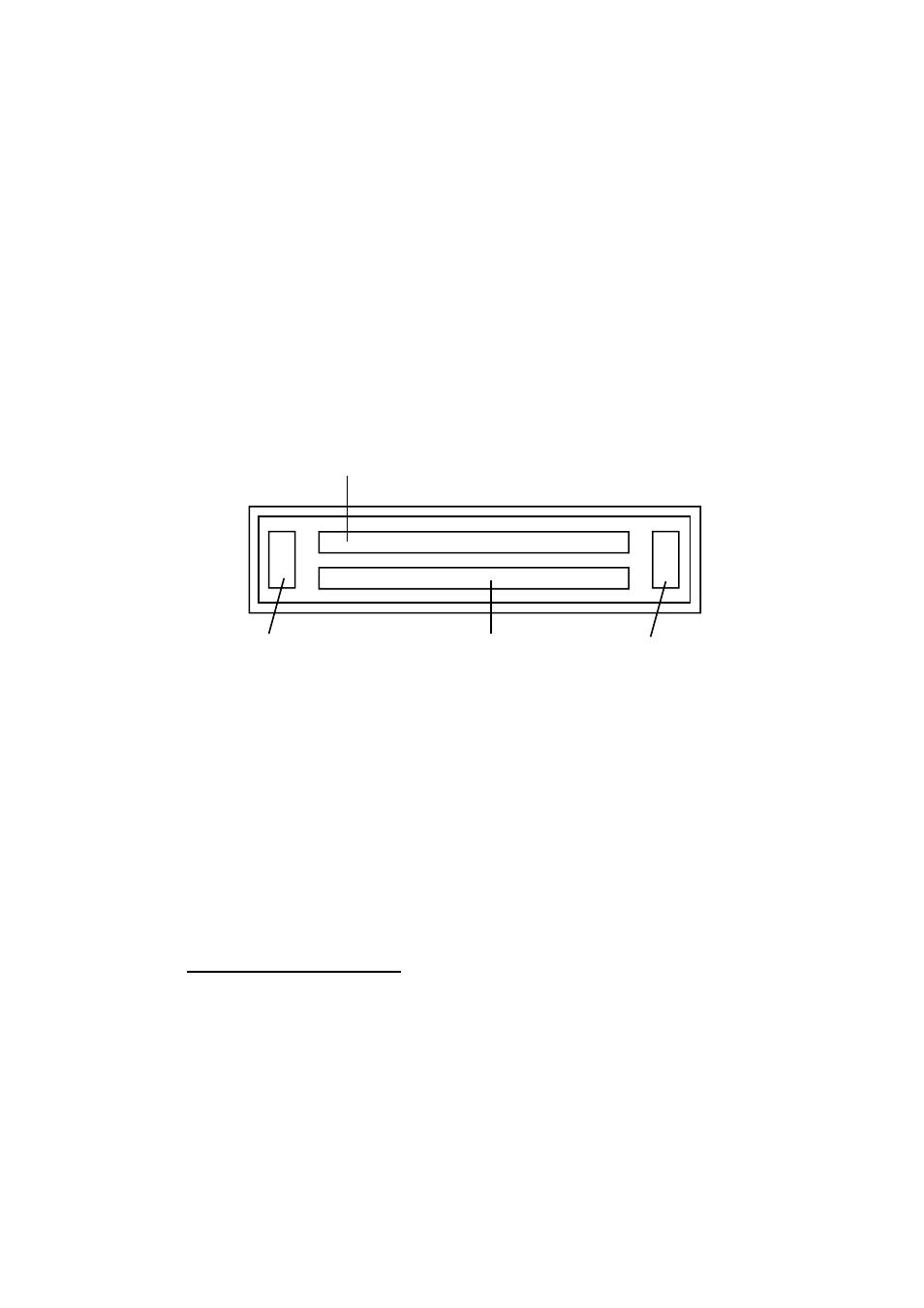

Eject button for
lower card Eject button for
upper card
Drive for chart card
Drive for RAM card
Card slots
2. Turn on the power switch.
3. After the radar is set in transmit status, choose the video plotter display or
the radar/video plotter display.
To eject a card, press the Eject button and pull out the card.
Note: If a card inserted after the power is turned on, change the range with the
[RANGE] key to display the chart.
1.5.2 Chart, cursor position correction
Chart position correction
There may be a case where the radar picture does not match the chart overlay.
This is due to an error in the position fixing system (GPS, Loran, etc.) or the
different coordinates between the position fixing system and the radar. In this
case, align the chart with the radar image as below. Note that track is neither
recorded nor plotted while chart position is being corrected.
1. Press the [CHART ALIGN] key. M. ALIGNING appears at the top of the
screen.
2. Rotate the trackball to shift the chart (or own ship) to the correct position.
3. Press the [CHART ALIGN] key again. MAN ALIGNED appears.
