9. INSTALLATION OF VIDEO PLOTTER KIT
49

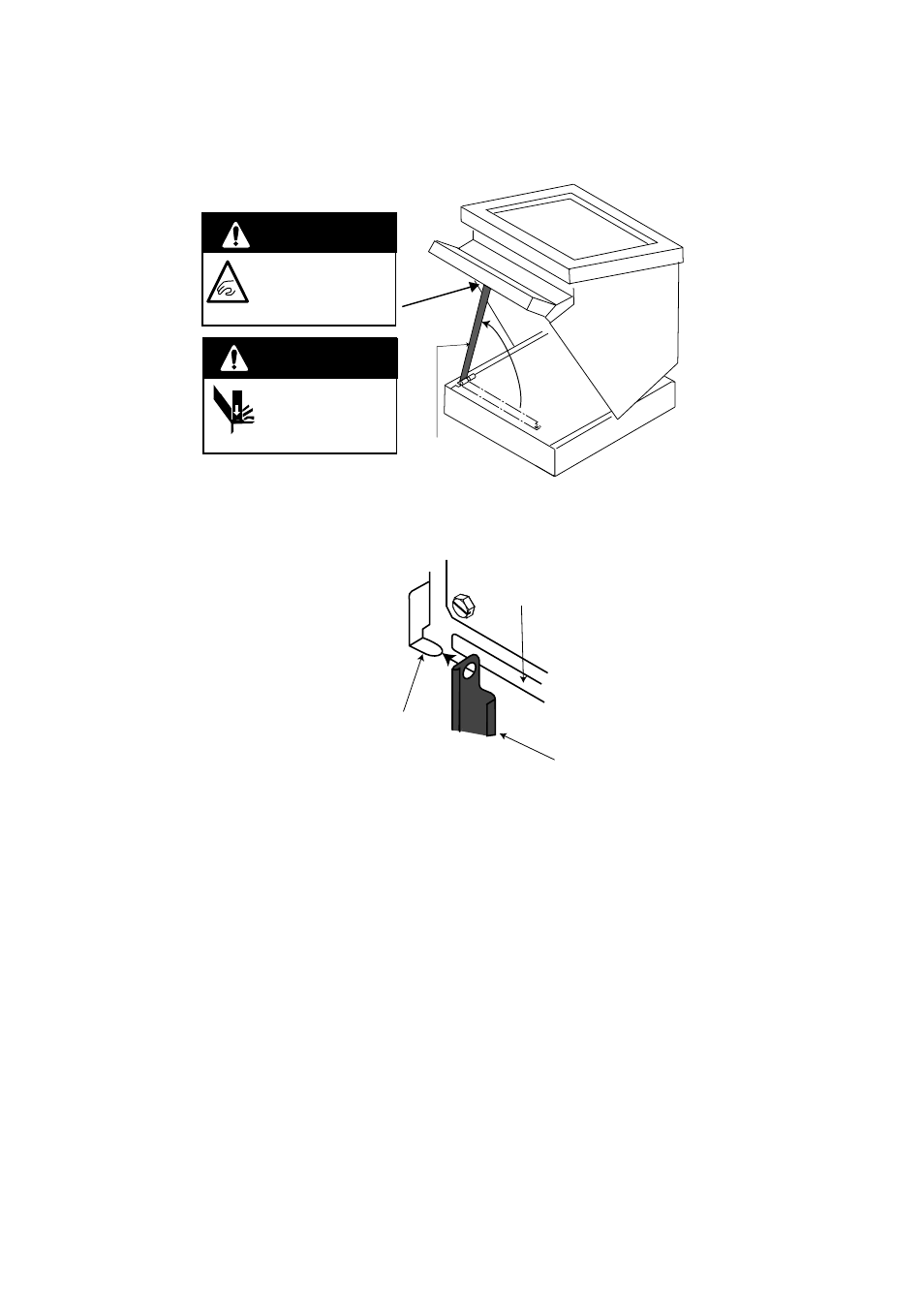

4. While raising the monitor until the CRT is horizontal as below, fix the stay as
follows:
a) Raise the stay as shown below.
Stay
HORIZONTAL
WARNING
Possibility of injury.
Hold handle when
mounting display unit.
Display unit may fall.
Lock stay before
servicing.
Two warning labels on
the underside of monitor
WARNING
Display unit, inside view
b) While pushing the stopper, set the catch on the display unit in the hole in the
stay.
Catch
Stopper
Stay
Setting catch to hole in stay
