Connecting a multiplexer or DVMRe and domes
Adhere to all installation guidelines while making connections, including your local codes and those provided
in

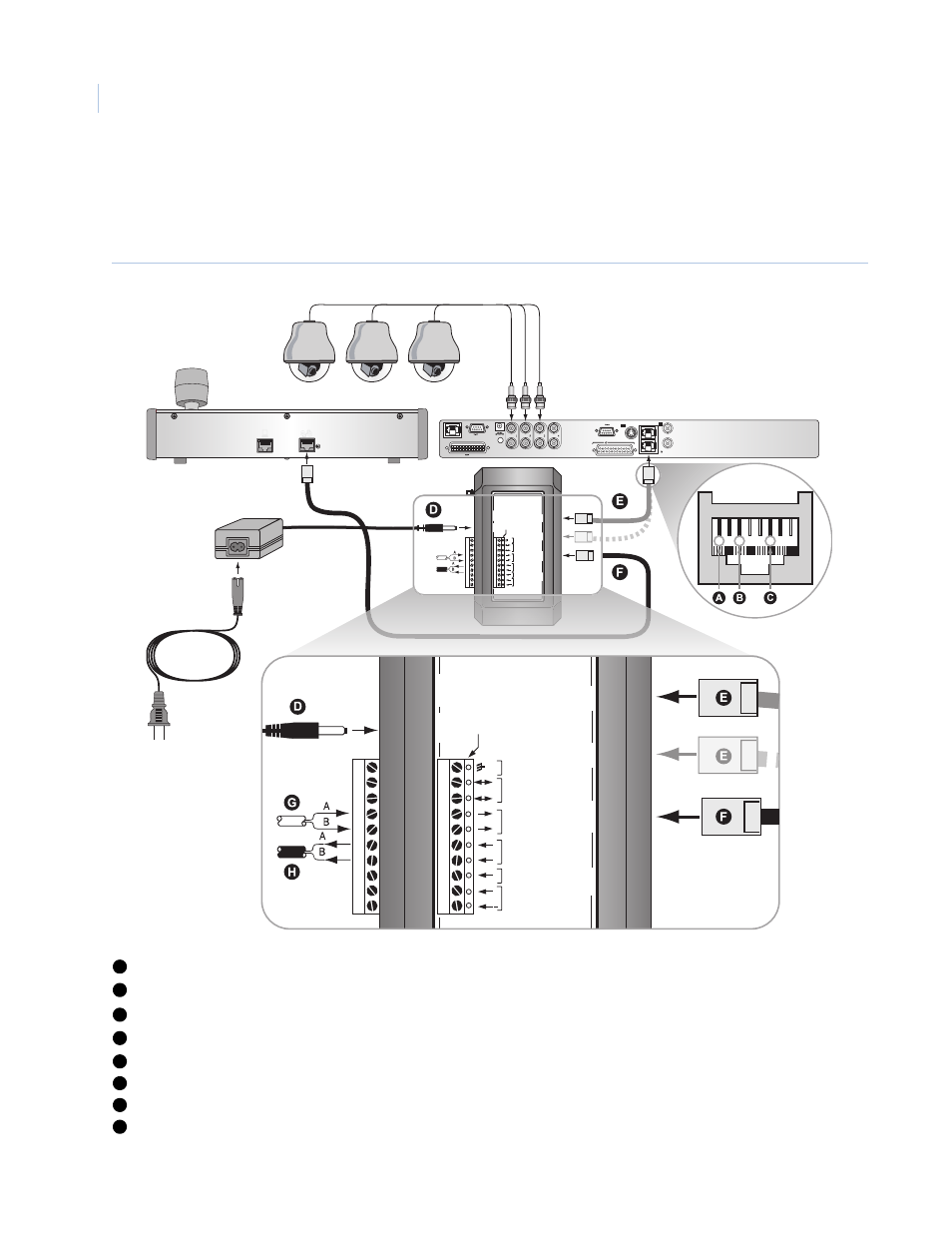

Figure 9. Connecting a keypad (KTD-405 shown) to a multiplexer or DVMRe (shown) and domes
PIN 1 to RS-485 shield (ground one end only)
PIN 3 to RS-485 A
PIN 6 to RS-485 B. (PINs 2, 4, 5, 7, and 8 are not connected.)
12 VDC (observe polarity, if provided transformer not used)
RS-485 OUT (data out to devices such as multiplexers or DVMRe’s; ground at mux/DVMRe)
KEYPAD IN (RS-422 and RS-485 data in from keypad; RS-422 data and power out to keypad)
RS-422 IN (data in from devices such as alarm units, ASCII converters, or keypads (see guidelines))
RS-422 OUT (data out to devices such as domes, switchers, or keypads (other than KTD-405s))
