17
2.2.2.1.2 Dry Contact #1 Or AC Output #1
1. The Dry Contact #1 connection is made to J34 pins 1, 2 or 3.
or
2. The AC Output #1 connection is made to J34 pins 2 or 3, 4, & 5.
(The N.O. lead was used in the example below.)

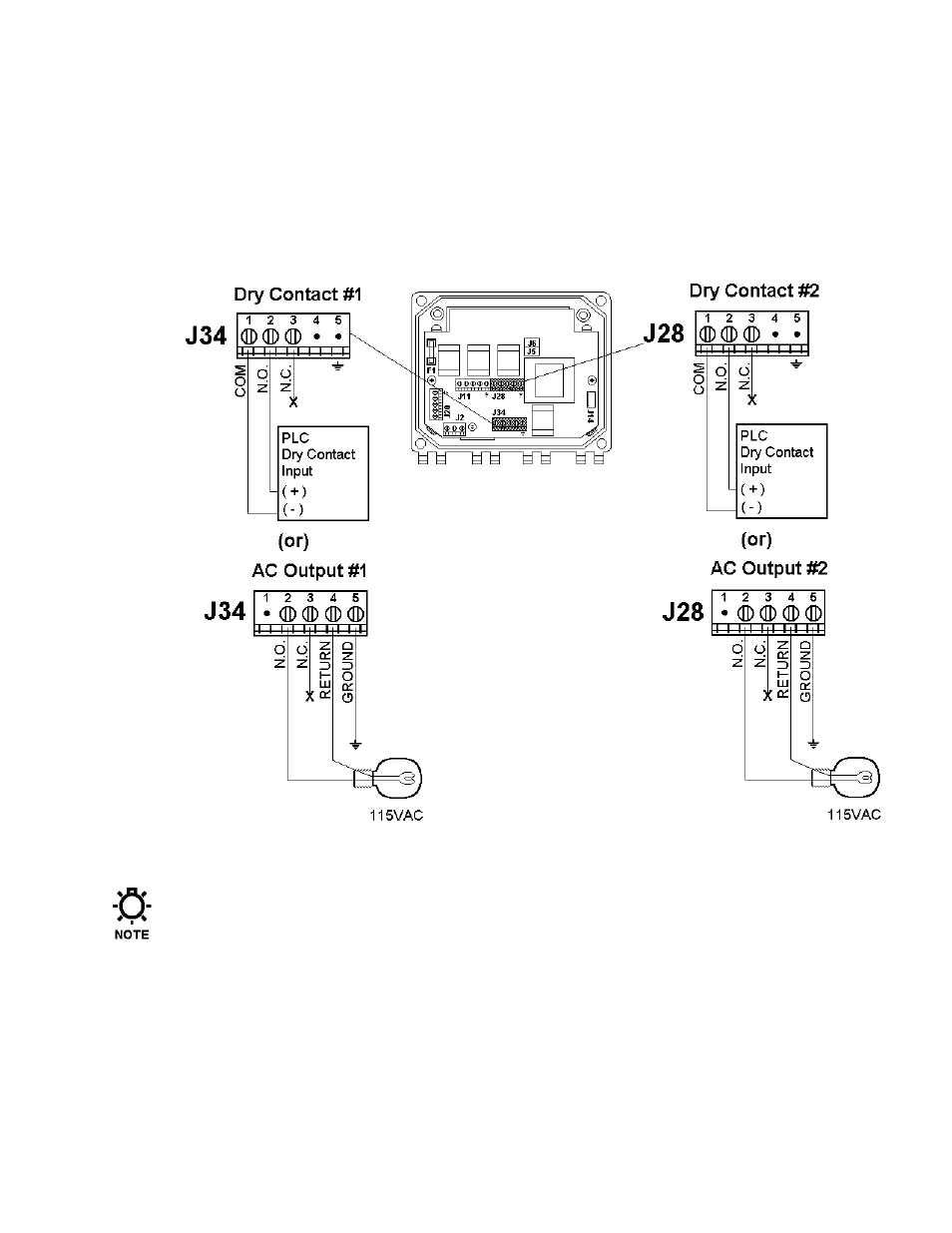

Figure 15 – Dry Contact & AC Output connections
If you order your DGF with one Dry Contact output and one AC Output, you will always
connect the Dry Contact output to J34, and connect the AC Output to J28.
