6
Figure 4 – Parts ListLocation
1. Locate a space approximately 3’ x 3’ that is convenient to system piping and to an electrical
outlet or power source.
2. Place the tank stand in the installation location with the front (pump head/wet end side)
facing out.
T
HE ASSEMBLY IS VERY HEAVY AND HELP MAY BE REQUIRED
.
DO
NOT
LIFT THE
STAND BY THE PLUMBING STACK
(
S
).
L
IFT THE UNIT BY THE METAL FRAME OF THE
STAND ASSEMBLY
.
USE
GLOVES
AS
THE
STAND
MAY
HAVE
SHARP
EDGES.
2.1.3 Plumbing
1. Attach the plumbing stack on the side of the stand to the closed loop system using a union
and shut off valve (not supplied).

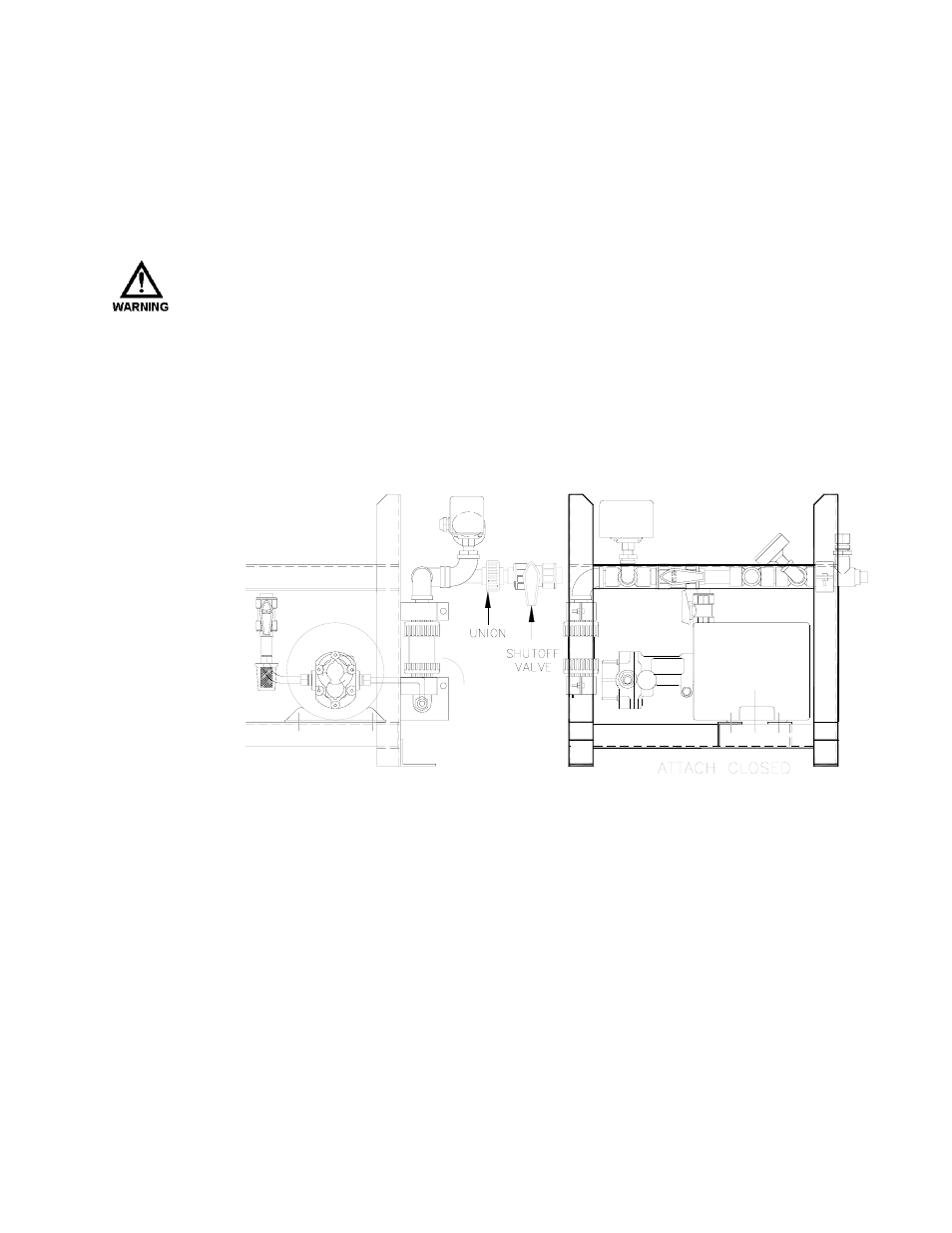

Figure 5 – Closed Loop Connection
