16
2.2.2.1.1 DGF Inputs (J14)
The inputs to the DGF are pre-wired at the factory and are connected to main circuit board at
J14, via a pre-wired harness with Molex connectors.

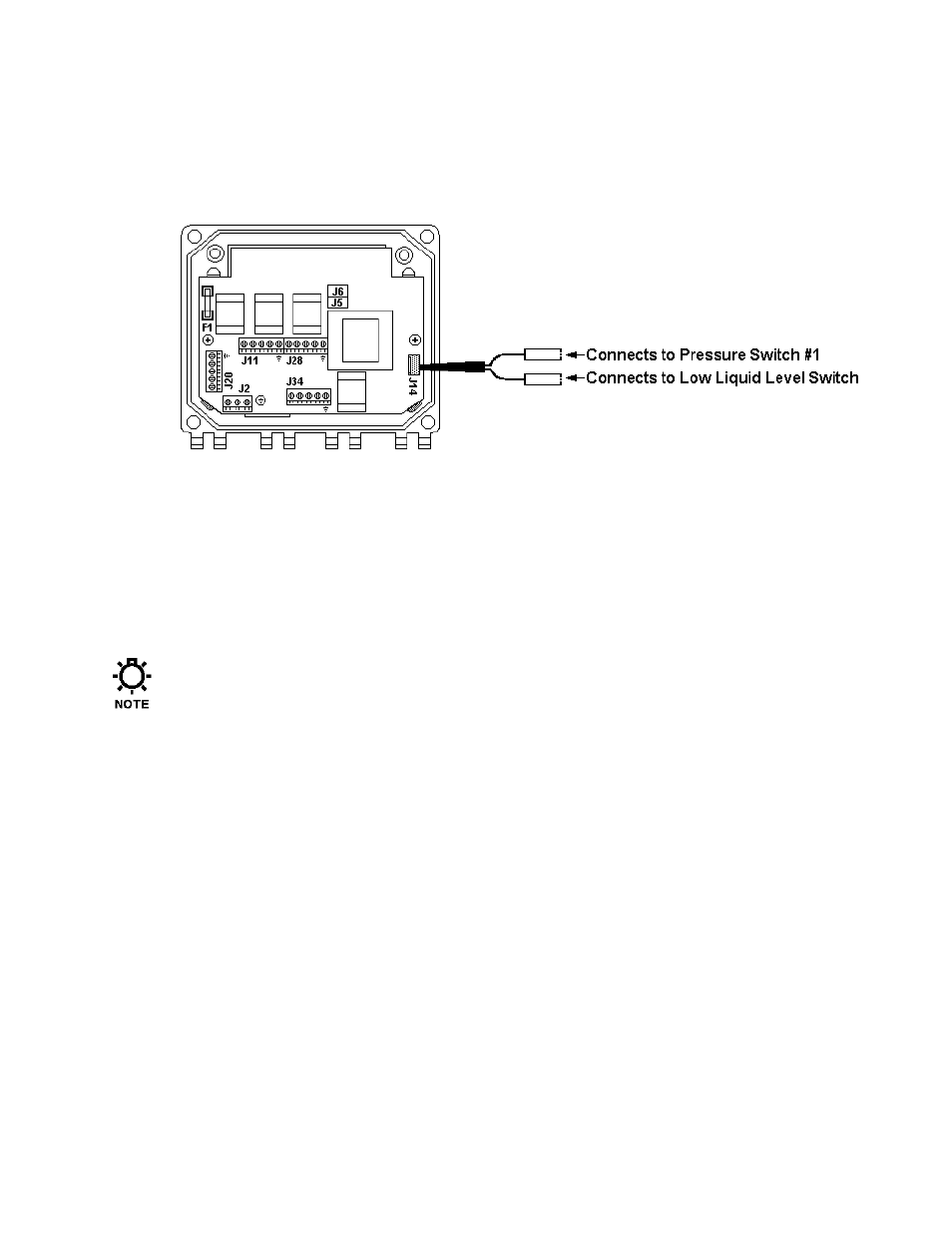

Figure 14 – DGF Inputs
1. Plug the 2-wire Molex connector tagged Level Wand into its mate on the end of the PVC
wand (low liquid level switch).
2. Plug the 2-wire Molex connector tagged Pressure Switch #1 into its mate on the pressure
switch attached to the closed loop system.
For the purpose of this manual, the DGF1 is used as the example. If you have a DGF2 there
is a connection for the second pressure switch on the same cable as the first switch.
