5
Figure 3 – Glycol Feeder Assembly
2.1.2 Pre–Assembly
1. Unpack all cartons and inspect for damage. If shipping damage is found, save all packaging
and notify the carrier immediately. Lay out and identify all parts.

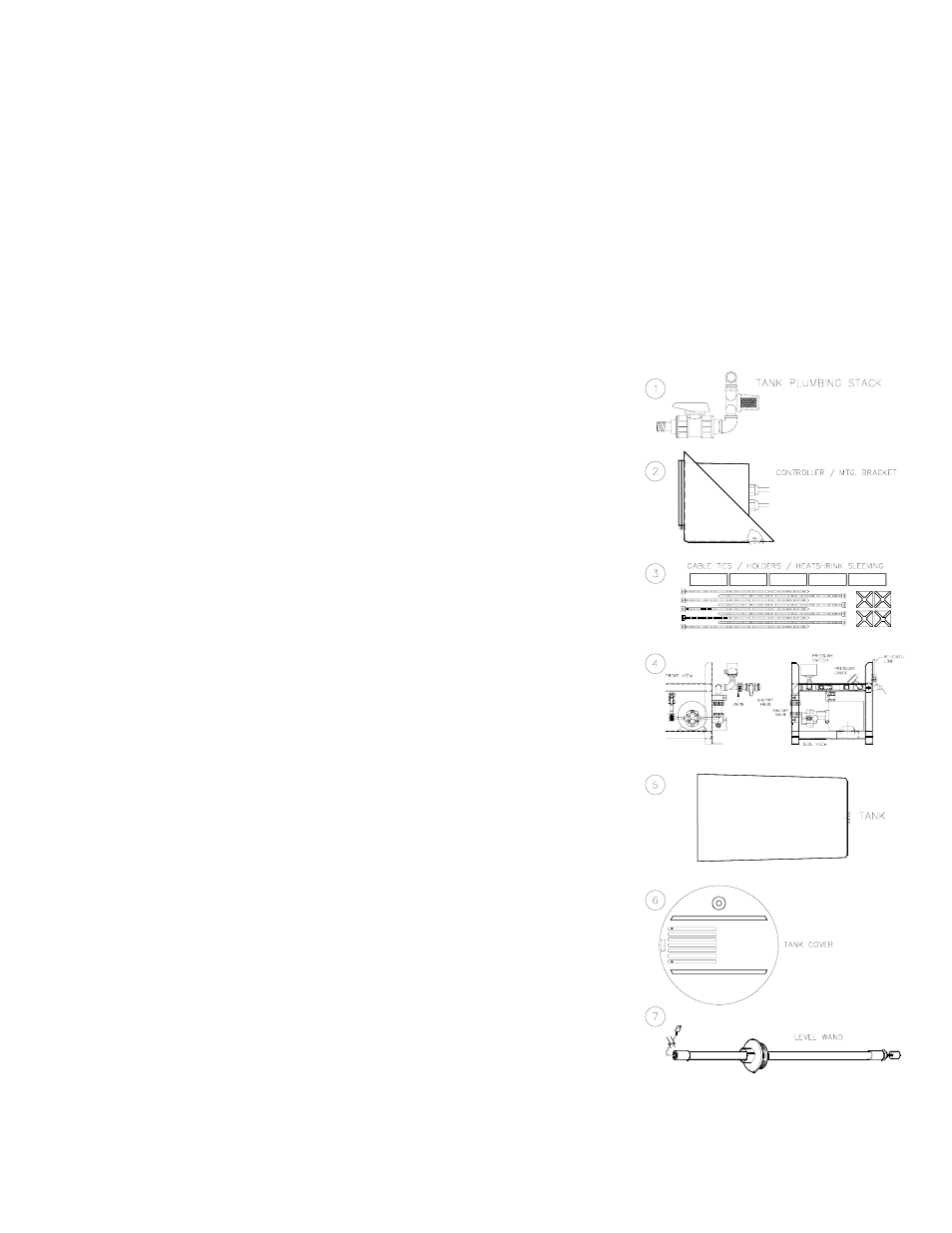

Parts List:
Item 1 : Tank Plumbing Stack.
Item 2 : Controller mounted on a bracket with two-cover
mounting screws attached.
Item 3: Package of Cable Ties & Cable Tie Holders.
Item 4: Pump/Stand assembly including stand, pump(s)
with tubing attached to both the suction and discharge sides,
stand plumbing assembly(s), pressure switch cable (attached
to switch) and re- circulation tubing (attached to the pressure
relief valve on the back end of the stand plumbing stack).
Item 5 : Tank with plumbing stack adapter attached.
Item 6 : Tank cover with two controller mounting screws
attached.
Item 7 : Level Wand
