15

2.2.2 115VAC/230VAC Conduit Connections

If your application requires 230VAC, or you did not order the 115VAC unit pre-wired, you
will hard wire the electrical connections as shown in the following paragraphs (refer to
Figure 13 – Main Circuit Board below for terminal locations).

2.2.2.1

Getting Around The Main Circuit Board

The Main Circuit board shown below (Figure 13 – Main Circuit Board) has all the possible
connection points shown. Remember that the main circuit board installed in your DGF will
include only the connection points for the options you ordered.

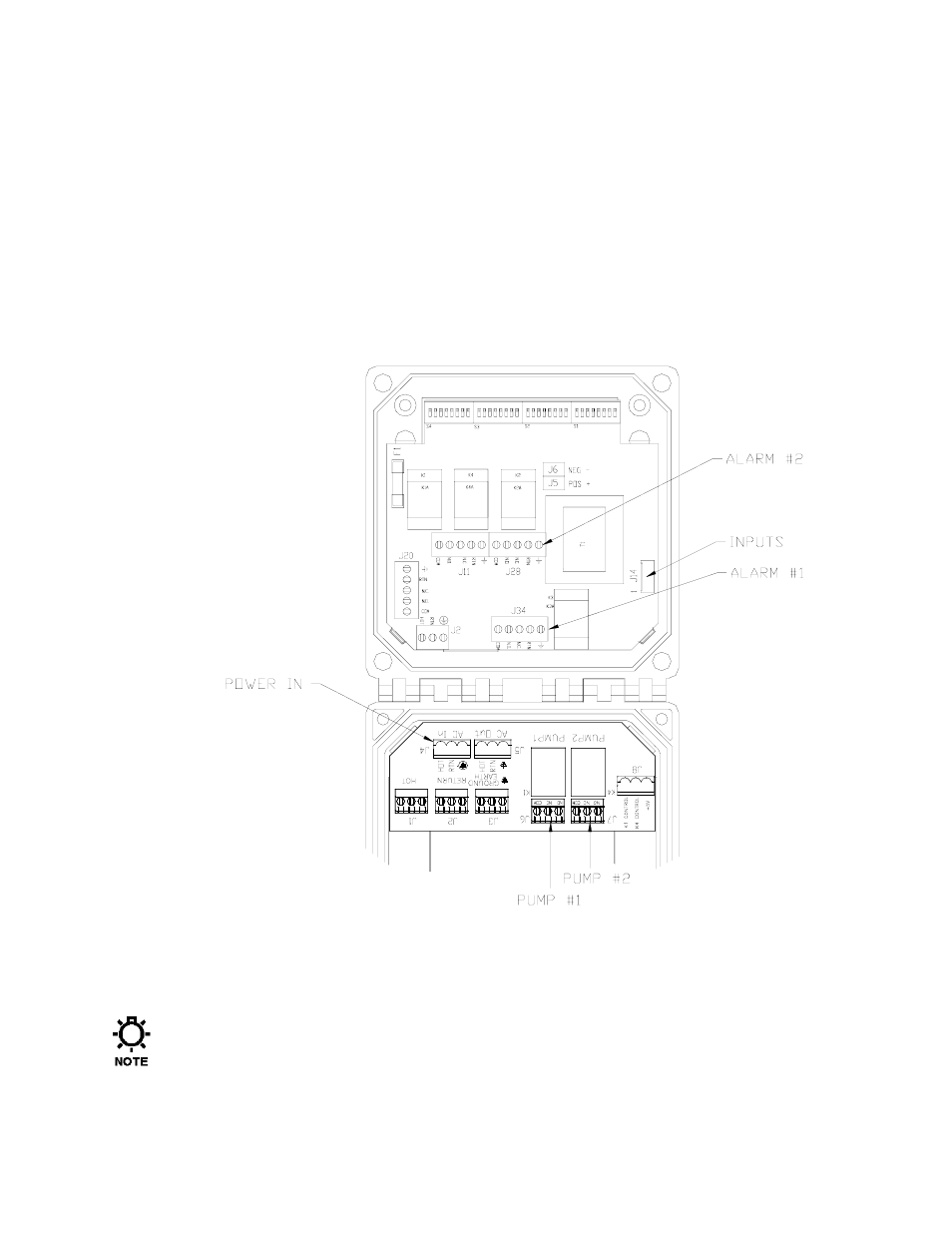

Figure 13 – Main Circuit Board

Complete the electrical wiring of your DGF following the steps defined below, in the order
specified. For a proper setup, do not skip or modify any steps.

Install the unit according to IEC 1010 Clause 6, and to local wiring code(s).
