Step 6.

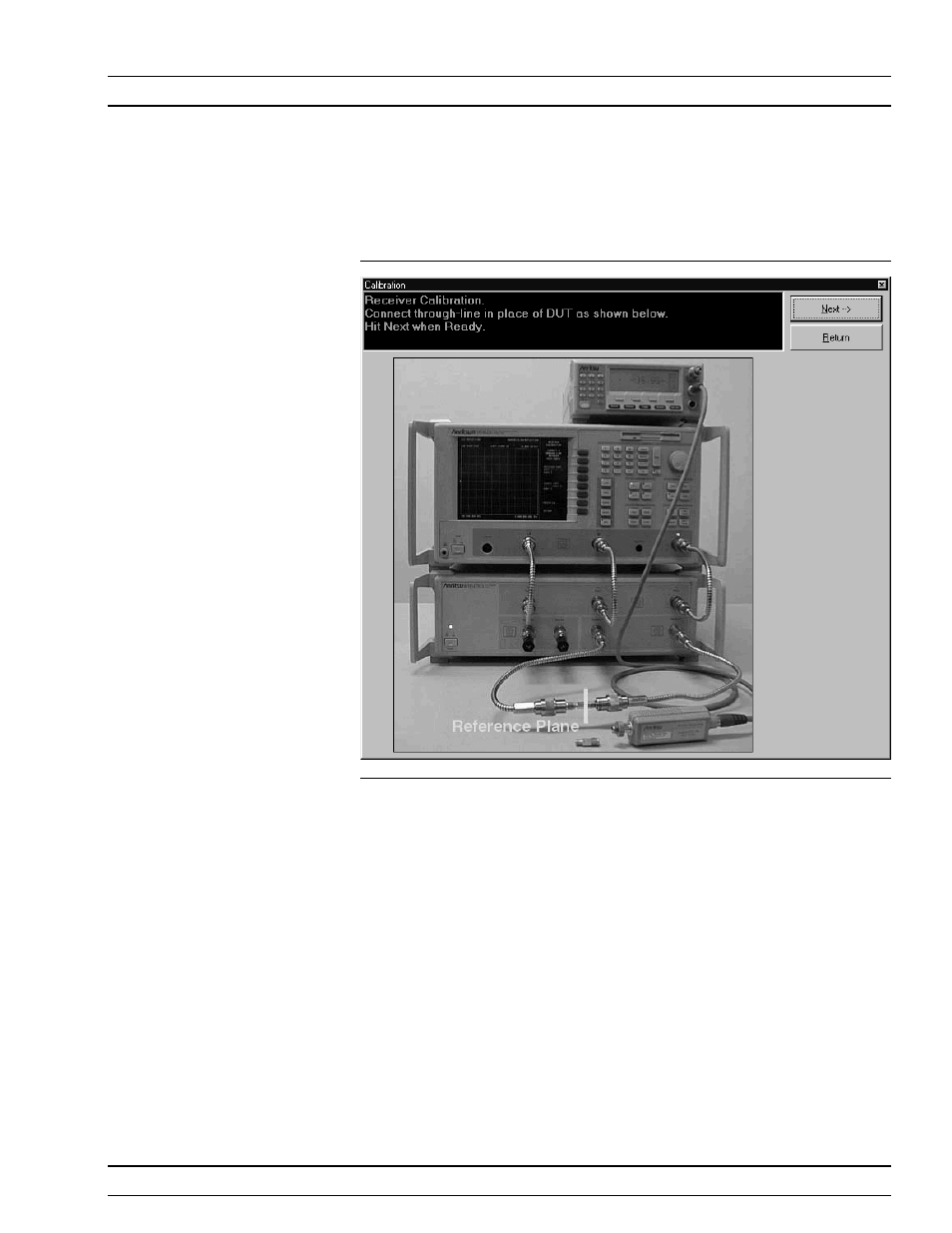

Before pressing “Next” disconnect the power sensor and con-
nect a throughline between Test Ports 1 and 2 on the
MS4782X Test Set, as shown below.

Step 7.

Press “Next” to perform a receiver calibration. When this cali-
bration finishes, the program returns to the main screen.

OPERATIONS, CALIBRATION

POWER LEVEL

ME7840A OMM

4-7
