CONFIGURATION
74

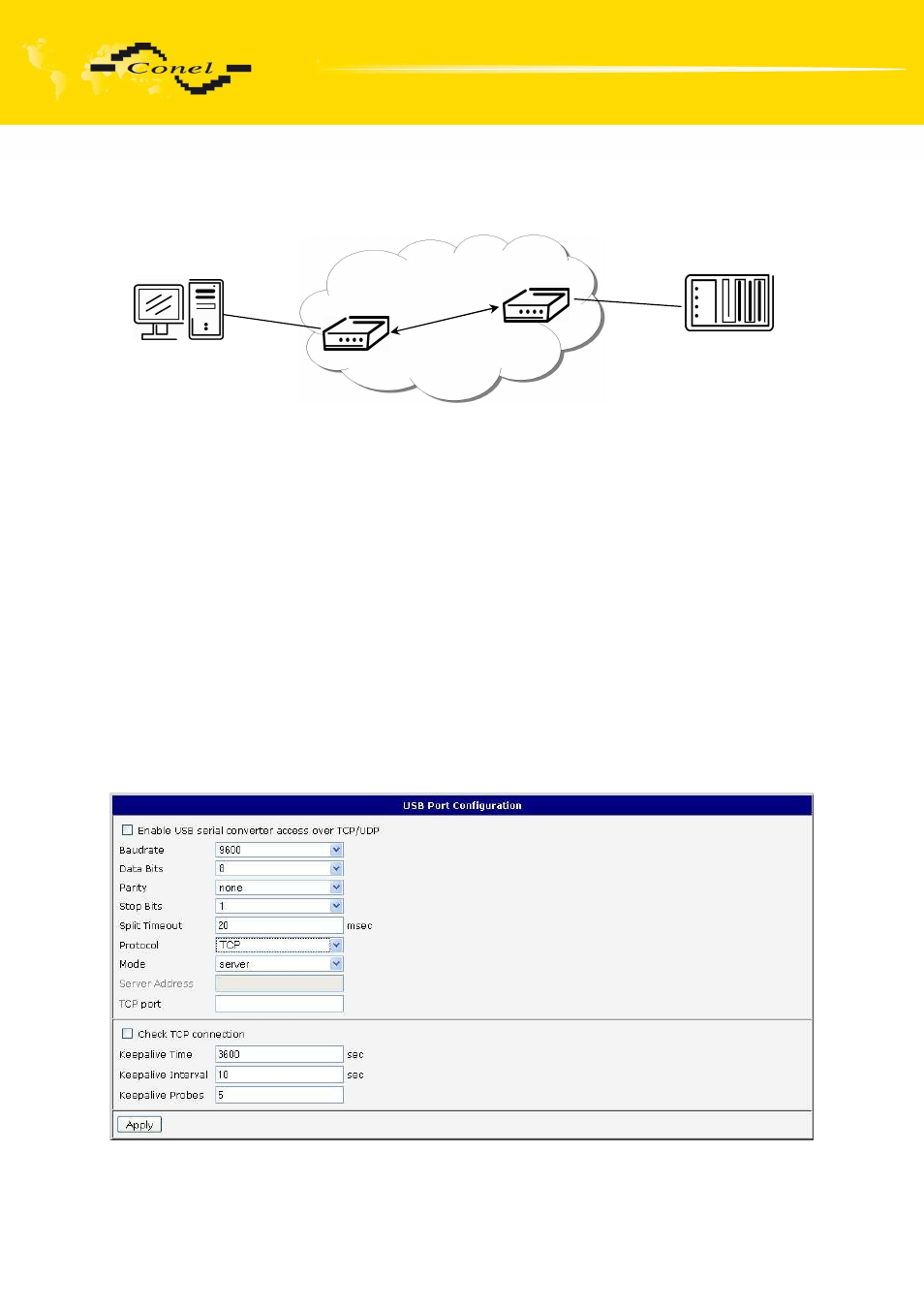

6.22. USB Port Configuration
The USB port configuration can be called up by airbrush option USB Port in menu.
Inside the window can be defined Baudrate, number of Data bits, Parity, number of Stop bits,
Protocol and Mode. Split timeout is for messages.
In mode TCP server it is necessary to enter the TCP port, on which the router will
listen to incoming requests about TCP connection. In mode TCP client it is necessary
to enter the Server address and final TCP port.
At Check TCP connection it activates verification of coupled TCP connection. Inside
the window can be defined time, after which it will carry out verification of the connection
(Keepalive Time), waiting time on answer (Keepalive Interval) and number of tests
(Keepalive Probes).
The changes in settings will apply after pressing the Apply button
ppp0 10.0.0.1
ppp0 10.0.0.2
Settings in the router
Mode: TCP server
Server Address: -
TCP Port:
2000
RS232
RS232
PC PLC
Settings in the router
Mode: TCP client
Server Address: 10.0.0.2
TCP Port:
2000
