CONFIGURATION
58

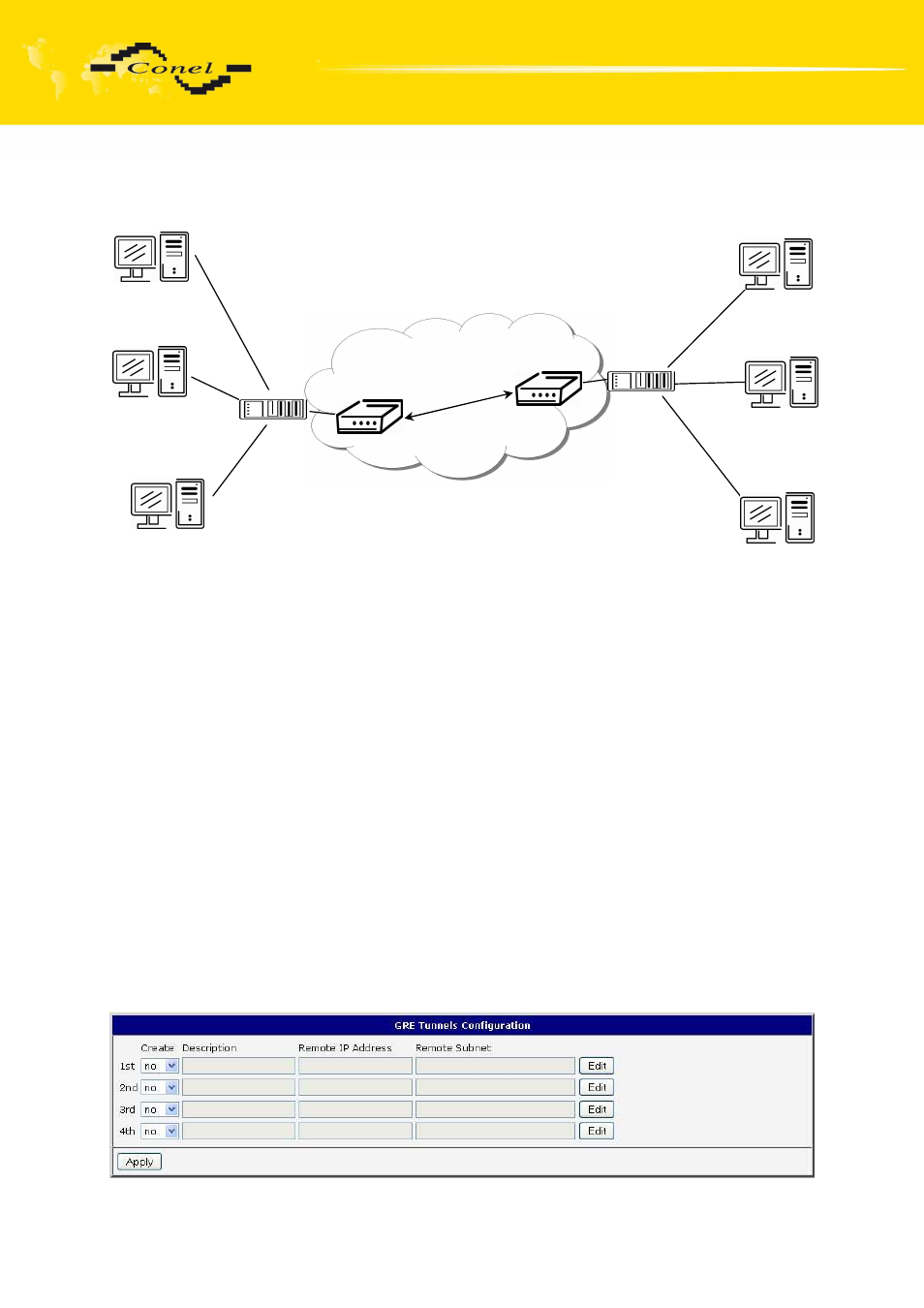

Example of the IPSec Tunnel configuration:
IPsec tunnel configuration:
A B
Remote IP Address: 10.0.0.2 10.0.0.1
Remote Subnet: 192.168.2.0 192.168.1.0
Remote Subnet Mask: 255.255.255.0 255.255.255.0
Local Subnet: 192.168.1.0 192.168.2.0
Local Subnet Mask: 255.255.255.0 255.255.255.0
Authenticate mode: pre-shared key pre-shared key
Pre-shared key test test
6.14. GRE Tunnels Configuration
To enter the GRE tunnels configuration, select the GRE menu item. It is possible
to configure up to four GRE tunnels. In the GRE Tunnels Configuration window are four
rows, each row for one configured GRE tunnel. The column Create switches on tunnels,
other columns contain values view set in the GRE Tunnel Configuration windows;
configuration is possible by Edit button.
192.168.1.4
192.168.1.3
192.168.1.2
192.168.2.2
192.168.2.3
192.168.2.4
ppp0 10.0.0.1
192.168.1.0
ppp0 10.0.0.2
192.168.2.0
IPSec tunel
Default Gateway 192.168.1.1
Default Gateway 192.168.2.1
A
B
