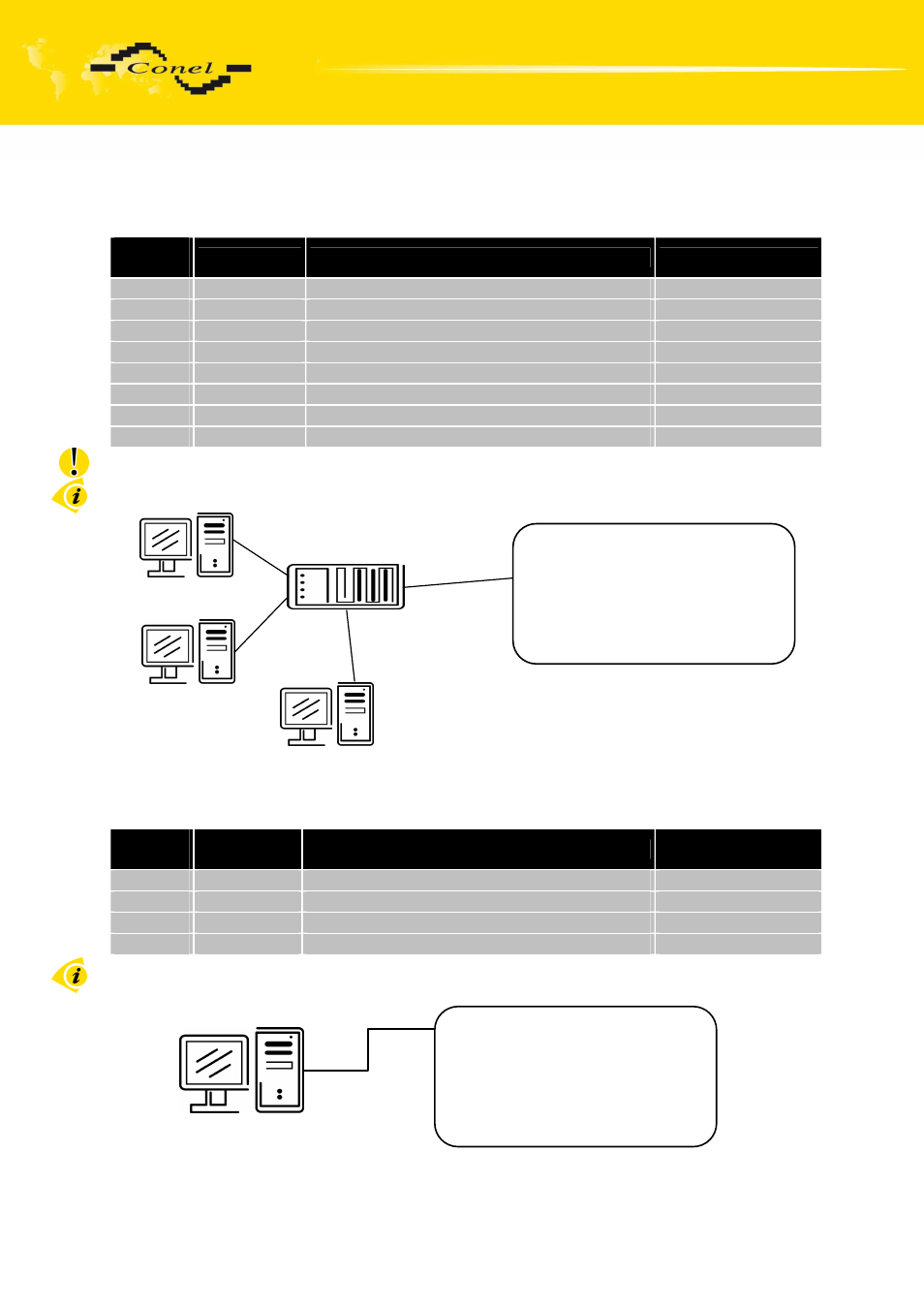

EXPANSION PORT MOUNTING
18
2.8.8.
Connection of the ETH Connector
Panel socket RJ45.
Pin
number
Signal mark
Description
Data flow direction
1
TXD+
Transmit Data – positive pole
Input/Output
2
TXD-
Transmit Data – negative pole
Input/Output
3
RXD+
Receive Data – positive pole
Input/Output
4
---
---
5
---
---
6
RXD-
Receive Data – negative pole
Input/Output
7
---
---
8
---
---
ATTENTION! Port ETH is not POE (Power Over Ethernet) compatible!
The ETH router connection:
2.8.9.
Connection of the Connector USB
Panel socket USB-A.
Pin
number
Signal mark
Description
Data flow direction
1
VCC
Positive pole of 5V DC supply voltage
2
USB data - USB data signal – negative pole
Input/Output
3
USB data + USB data signal – positive pole
Input/Output
4
GND
Negative pole of DC supply voltage
The USB router connection:
Router
USB
ETH
PORT1
PWR
USB cable A-B
Router
USB
ETH
PORT1
PWR
UTP cable
Switch
