CONFIGURATION

64

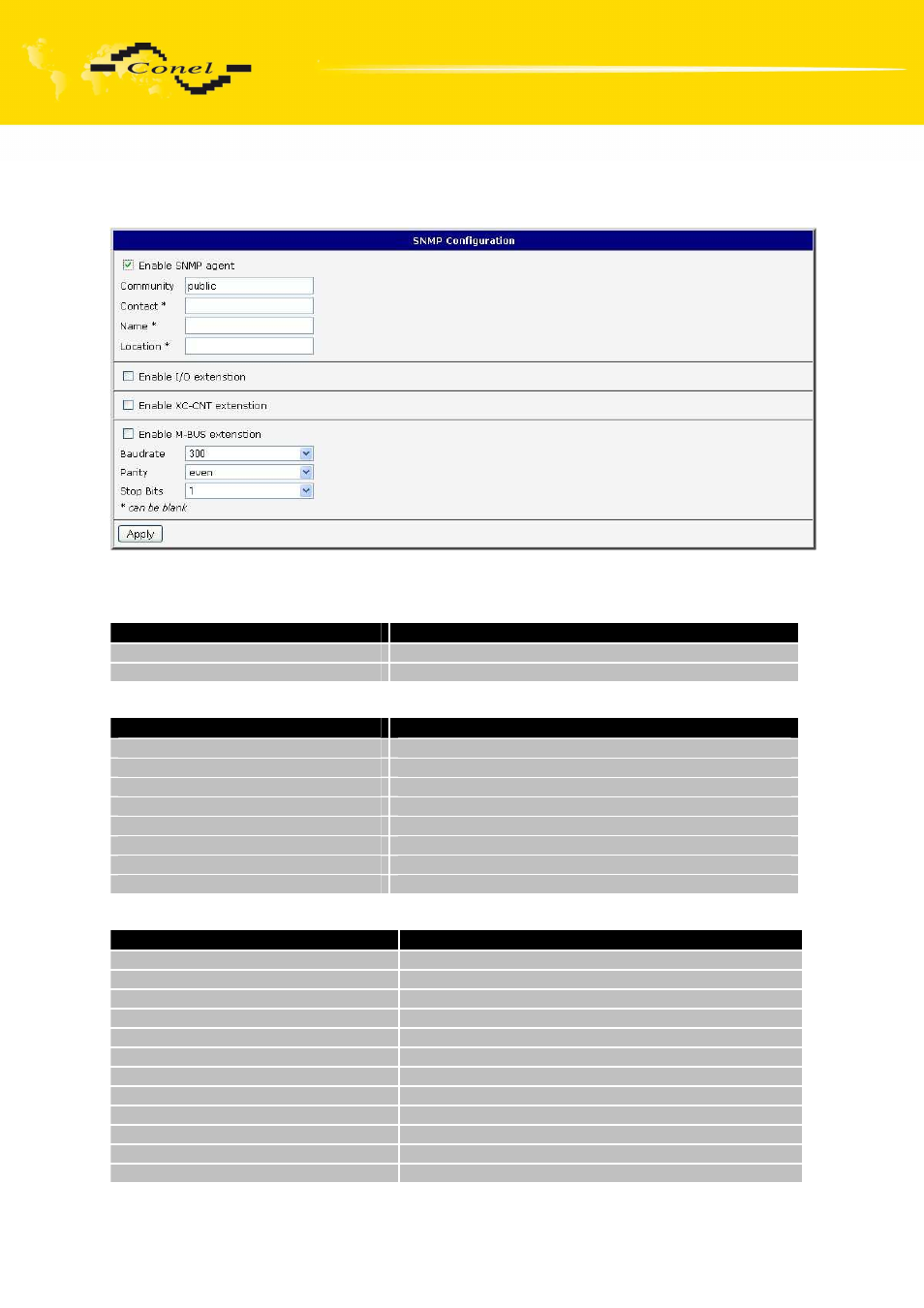

M-BUSD status. Parameters Enable XC-CNT extension and Enable M-BUS extension can
not be checked together.

Every monitor value is uniquely identified by the help of number identifier OID - Object

Identifier. OID is finished by „.9“.

For binary input and output the following range of OID is used:

OID

Description

.1.3.6.1.4.1.30140.2.3.1.0

Binary input BIN0 (values 0,1)

.1.3.6.1.4.1.30140.2.3.2.0

Binary output OUT0 (values 0,1)

For the expansion port CNT the following range of OID is used:

OID

Description

.1.3.6.1.4.1.30140.2.1.1.0

Analogy input AN1 (range 0-4095)

.1.3.6.1.4.1.30140.2.1.2.0

Analogy input AN2 (range 0-4095)

.1.3.6.1.4.1.30140.2.1.3.0

Counter input CNT1 (range 0-4294967295)

.1.3.6.1.4.1.30140.2.1.4.0

Counter input CNT2 (range 0-4294967295)

.1.3.6.1.4.1.30140.2.1.5.0

Binary input BIN1 (values 0,1)

.1.3.6.1.4.1.30140.2.1.6.0

Binary input BIN2 (values 0,1)

.1.3.6.1.4.1.30140.2.1.7.0

Binary input BIN3 (values 0,1)

.1.3.6.1.4.1.30140.2.1.8.0

Binary input BIN4 (values 0,1)

For the expansion port M-BUSD the following range of OID is used:

OID

Description

.1.3.6.1.4.1.30140.2.2.

.1.0

IdNumber – meter number

.1.3.6.1.4.1.30140.2.2.

.2.0

Manufacturer

.1.3.6.1.4.1.30140.2.2.

.3.0

Version – specified meter version

.1.3.6.1.4.1.30140.2.2.

.4.0

Medium – type of metered medium

.1.3.6.1.4.1.30140.2.2.

.5.0

Status – errors report

.1.3.6.1.4.1.30140.2.2.

.6.0

0. VIF – value information field

.1.3.6.1.4.1.30140.2.2.

.7.0

0. measured value

.1.3.6.1.4.1.30140.2.2.

.8.0

1. VIF – value information field

.1.3.6.1.4.1.30140.2.2.

.9.0

1. measured value

.1.3.6.1.4.1.30140.2.2.

.100.0 47. VIF – value information field
.1.3.6.1.4.1.30140.2.2.
.101.0 47. measured value
