Advanced Operations

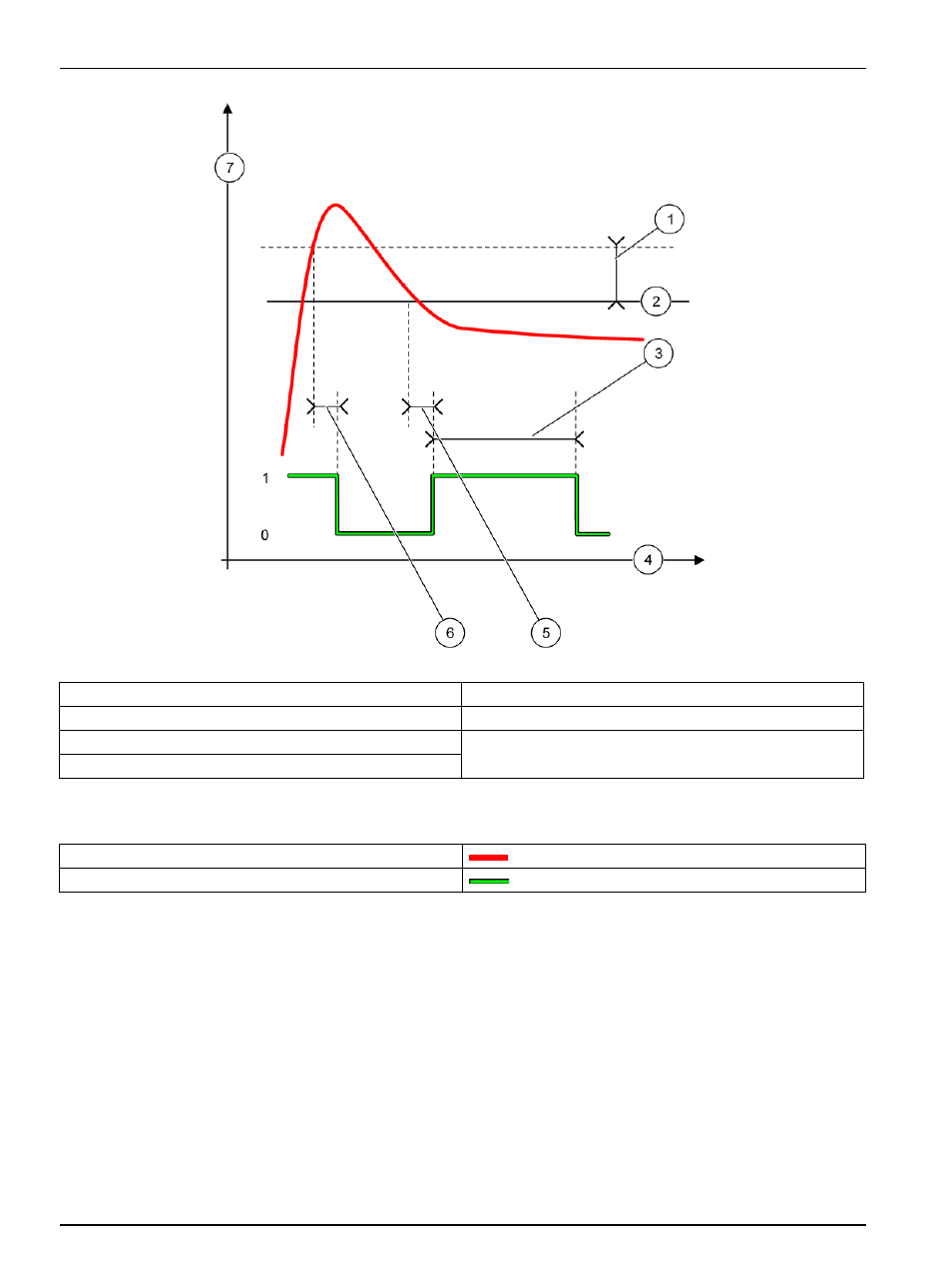

Figure 56 Relay behavior—Feeder Control mode (Phase low, OnMax Timer)
1
Deadband
5
ON delay
2
Set point
6
OFF delay
3
OnMax Timer
7
Source (y-axis)
4
Time (x-axis)
Table 29 Color/line code for
Figure 56
Selected source
Relay contact (phase low)
