Figure 31, Installation – Hach sc1000 User Manual
Page 43
41
Installation

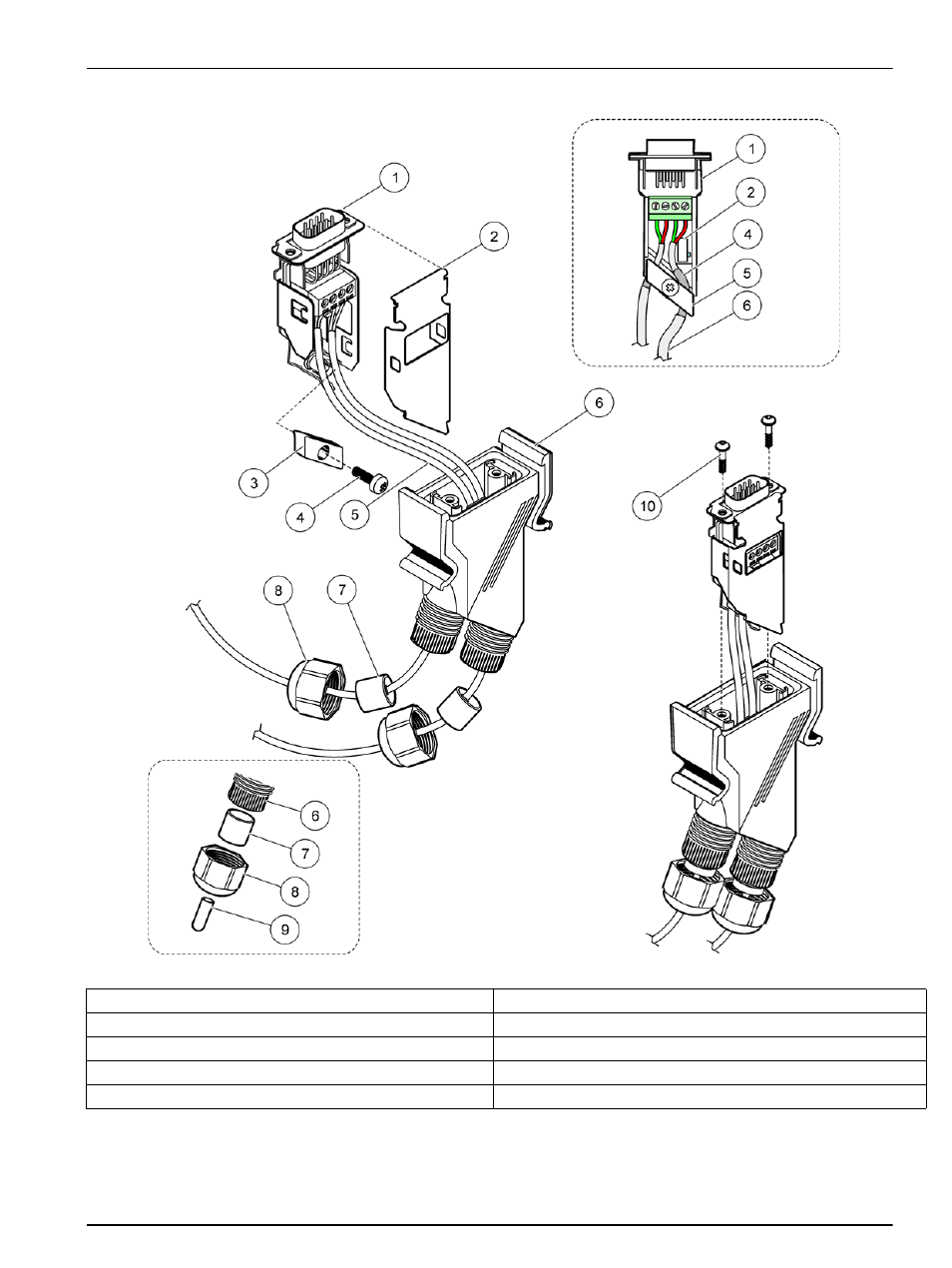

Figure 31 Connecting the network connector to the sc1000 network terminating resistor
1
Shell, bottom
6
Housing, network connector
2
Network connector printed circuit board with shell bottom
7
Seal, cord grip
3
Clamp, network cable(s)
8
Cord grip
4
Screw, pan head
9
Plug, rubber, cord grip
2
5
Cables, network
1
10 Screws, self-tapping (2x)
1
Route cables as shown and make sure that clamp is fastened securely.
2
Use this plug if the cord grip is not used, refer to inset in
