Page 34
32
Installation

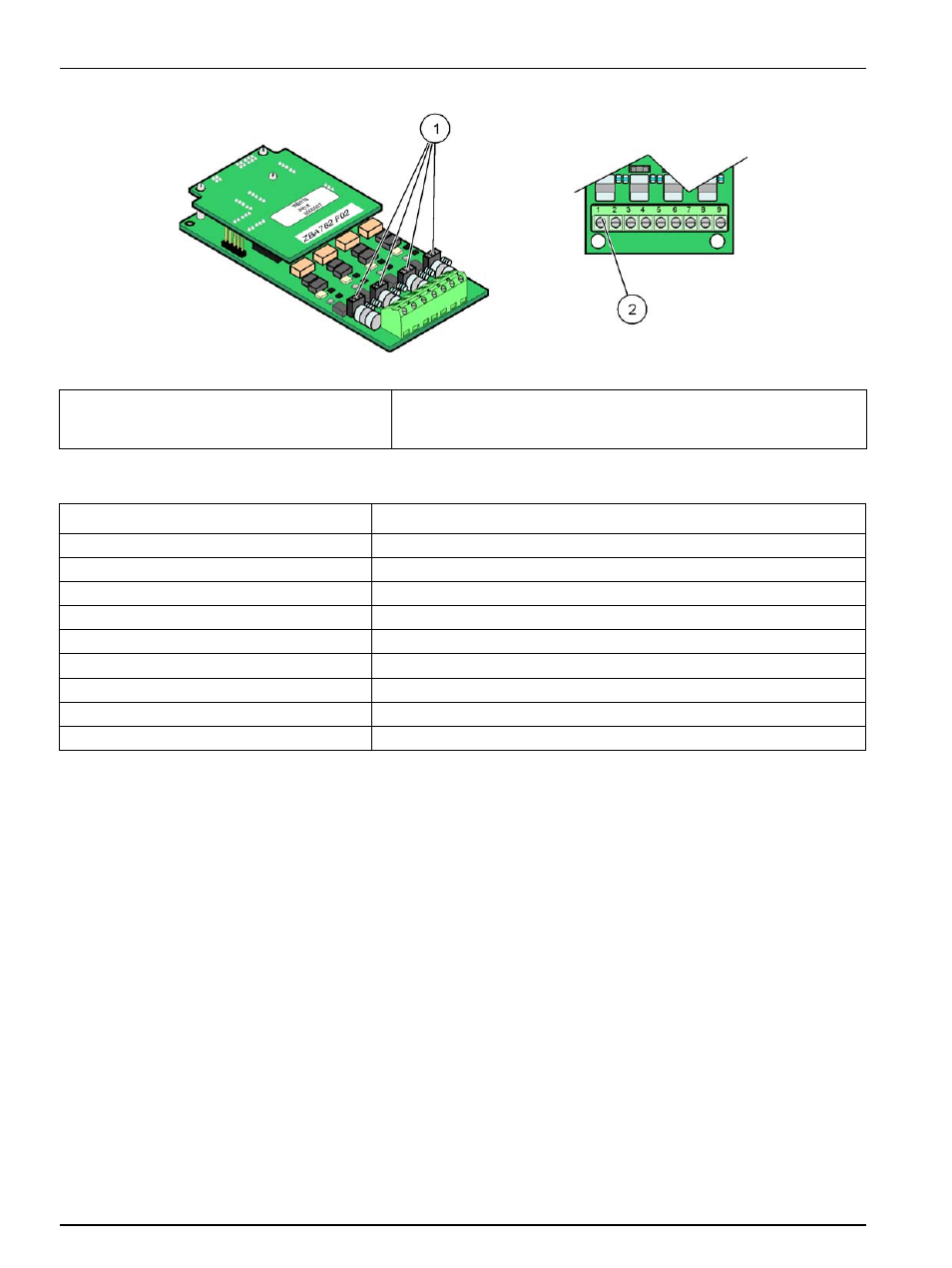

Figure 22 Input card (YAB018) cable connections and jumper setting
1
Jumper switches
Digital input=Jumper closed
Analog input=Jumper opened
2
Terminal block– Refer to
Table 5 Input card (YAB018) terminal assignments
Terminal
Designation
1
Input 1 +
2
Input 1 –
3
Input 2 +
4
Input 2 –
5
Input 3 +
6
Input 3 –
7
Input 4 +
8
Input 4 –
9
PE (Protective earth)
