Advanced Operations
TEST/MAINT
Default value: DISABLED
This menu works independently from the simulation.
DISABLED: Normal operation mode
ENABLED: Sets the TEST/MAINT bit (0x0040) of every status register of every configured slave
to indicate the “Service” mode.
VERSION
Displays the current software version of the Modbus network adapter card.
LOCATION
Displays the current location.
SYSTEM SETUP
NETWORK MODULES
FIELDBUS

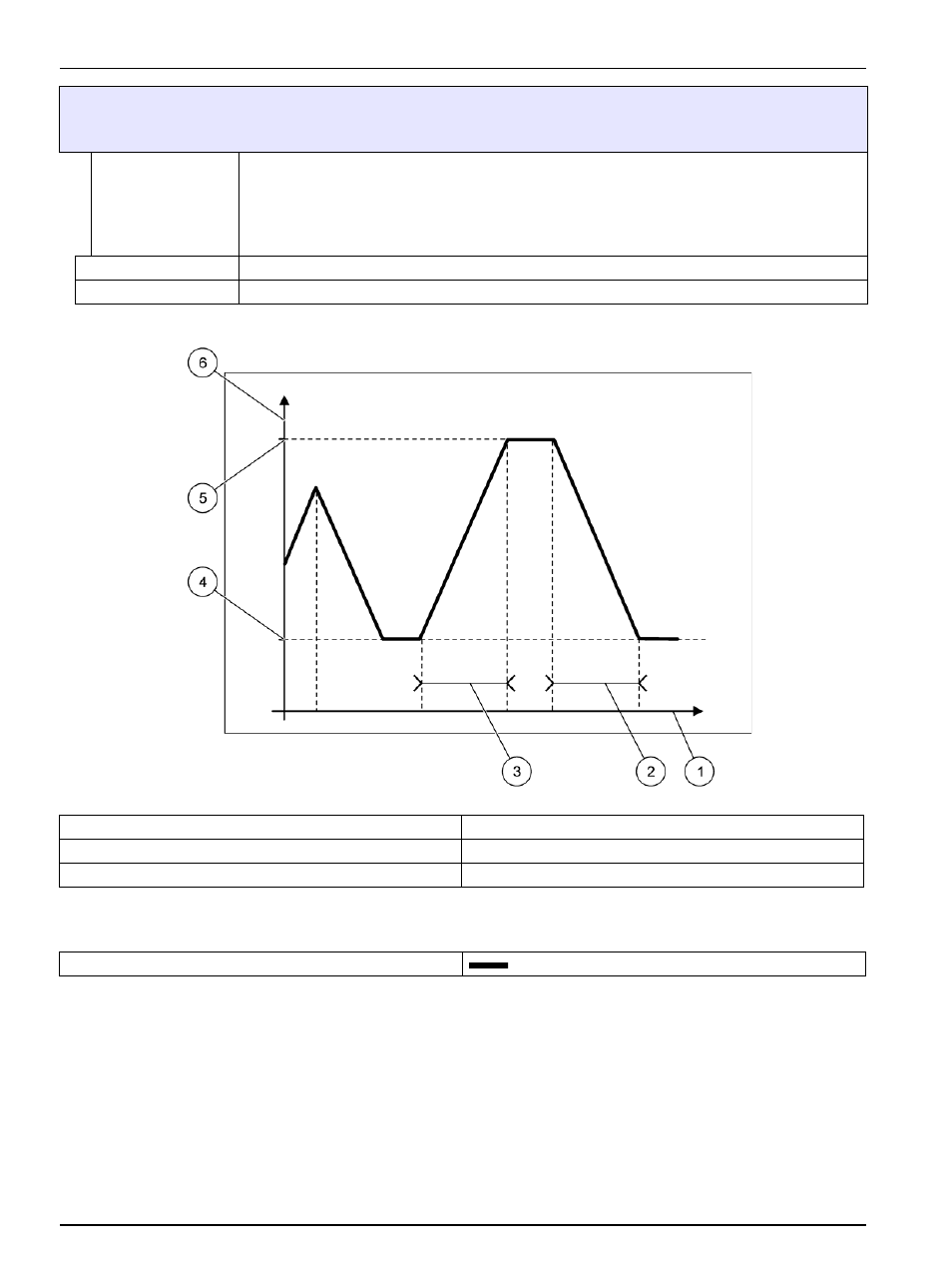

Figure 66 Modbus simulation mode
1
Time (x-axis)
4
Minimum
2
Period
5
Maximum
3
Period
6
Simulated value (y-axis)
Table 38 Color/line code for
First floating point value
