Page 38: Installation
36
Installation
After installation and connection of a plug-in expansion card, the card must be configured
to the system. For Profibus card setup instructions refer to

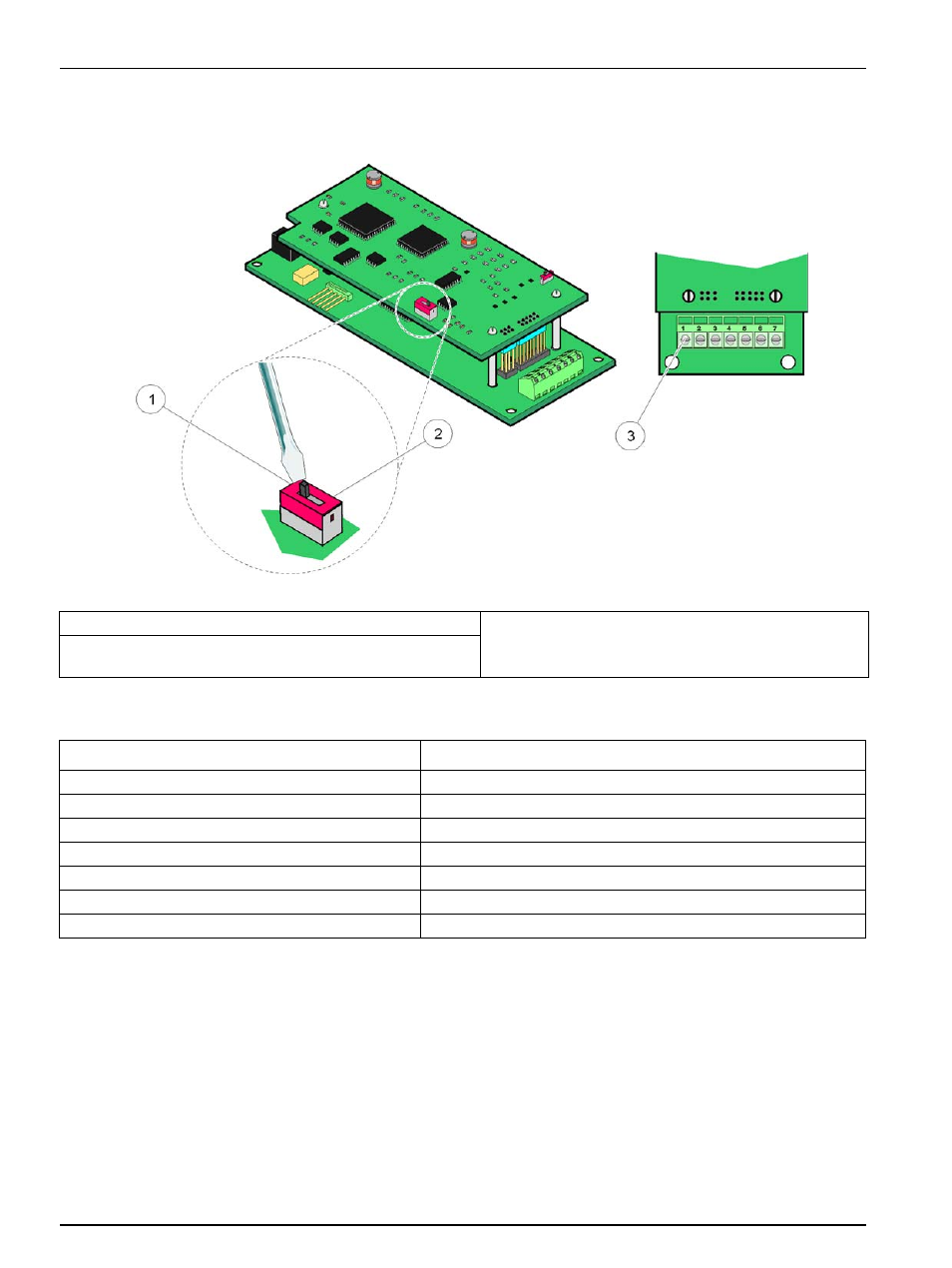

Figure 26 Profibus DP card (YAB020) connections
1
Network termination activated, last device on network
3
Terminal Block – Refer to
for terminal
assignments.
2
Network termination deactivated, other devices on network
after this device.
Table 9 Profibus DP card (YAB020) terminal assignments
Terminal
Designation
1
Not used
2
Not used
3
B in (wire color red)
4
A in (wire color green)
5
B out (wire color red)
6
A out (wire color green)
7
PE (Protective Earth)
