Advanced Operations
Figure 63

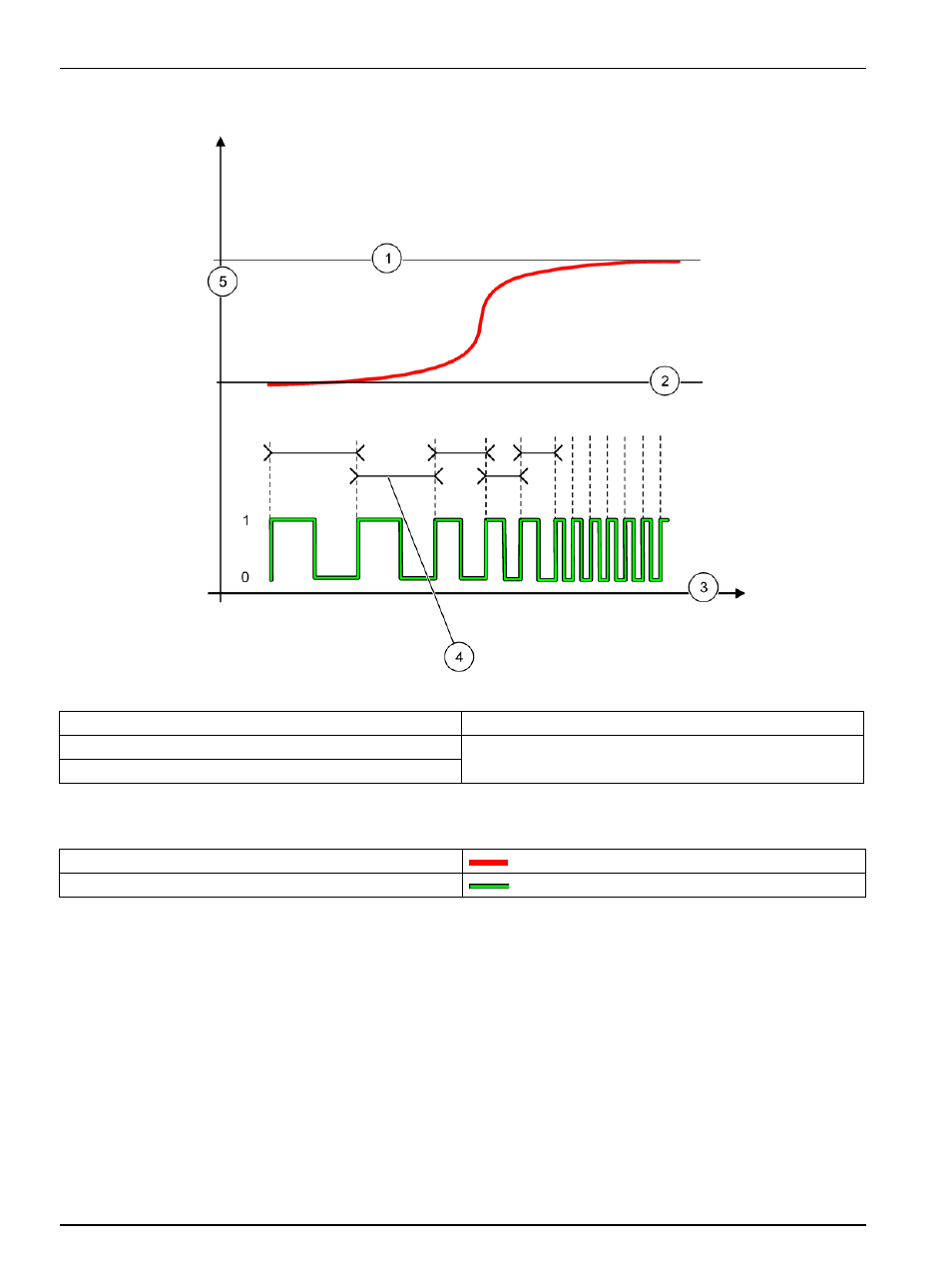

shows the behavior of the relay in the FREQ. Control/Linear mode.
Figure 63 Relay behavior—FREQ. Control/Linear mode
1
High Limit
4
Cycle duration
2
Low Limit
5
Selected source (y-axis)
3
Time (x-axis)
Table 35 Color/line code for
Figure 63
Selected source
Relay contact
