Advanced Operations
shows the output current depending on the process value, the set low value
and the set high value with an output range of 4
–
20 mA.
The output current is determined according to formula
:
(2)
where:
OC=Output current
PV=Process value
LV=Low value
HV=High value

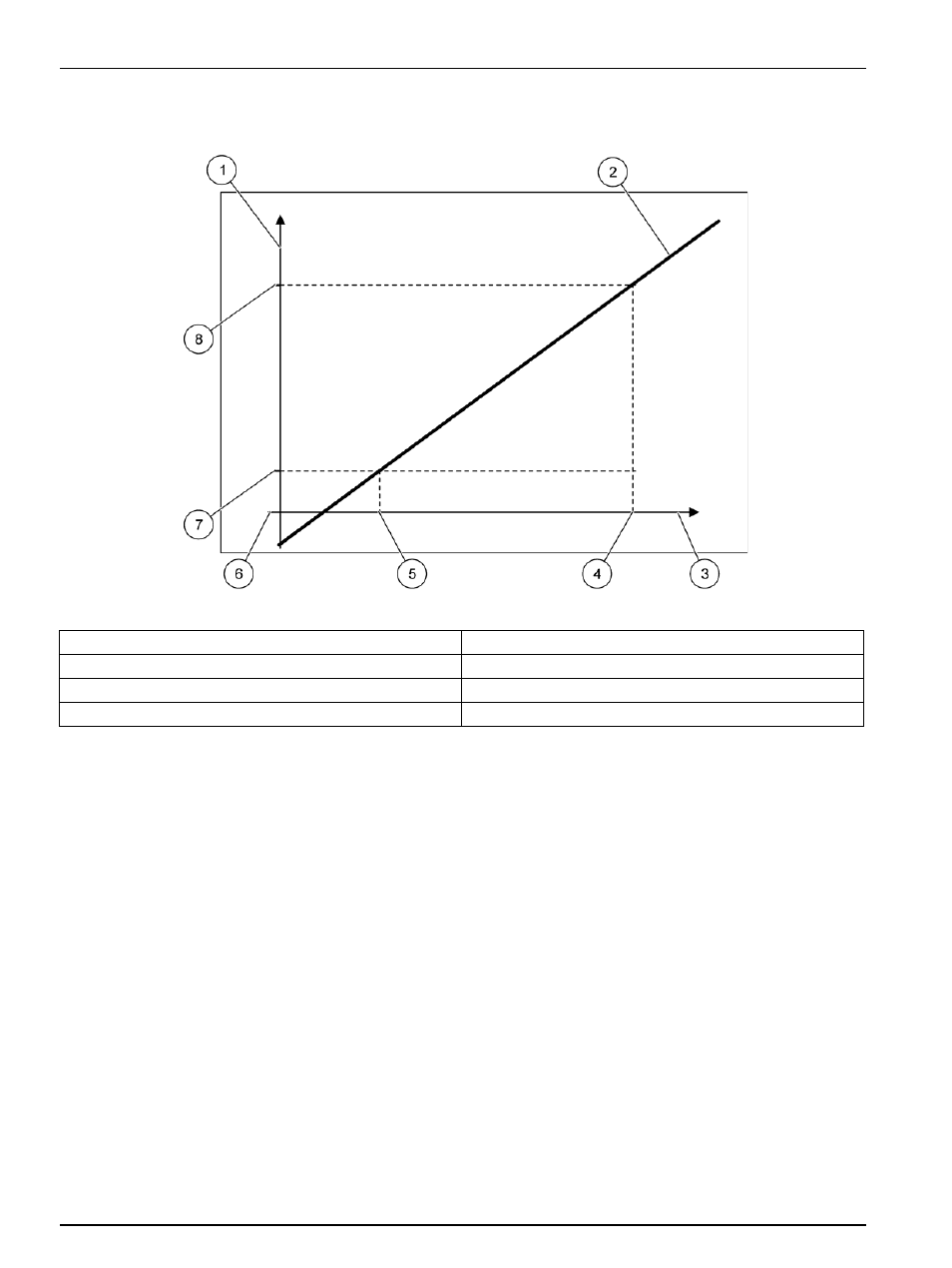

Figure 51 Output current with an output range of 4
–
20mA
1
Output current (OC) (y-axis)
5
Low value (LV)
2
OC=f(PV)
6
0mA
3
Process value (PV) (x-axis)
7
4 mA
4
High value (HV)
8
20 mA
OC
f(PV)
16mA
HV LV
–
----------------------
(PV-LV) 4mA
+
Ч
=
=
