Advanced Operations
shows the output value depending on the input current, the set low value and
the set high value with an input range of 4
–
20 mA.
The output value (OV) is determined according to formula
(4)
where:
OV=Output value
IC=Input current
LV=Low value
HV=High value

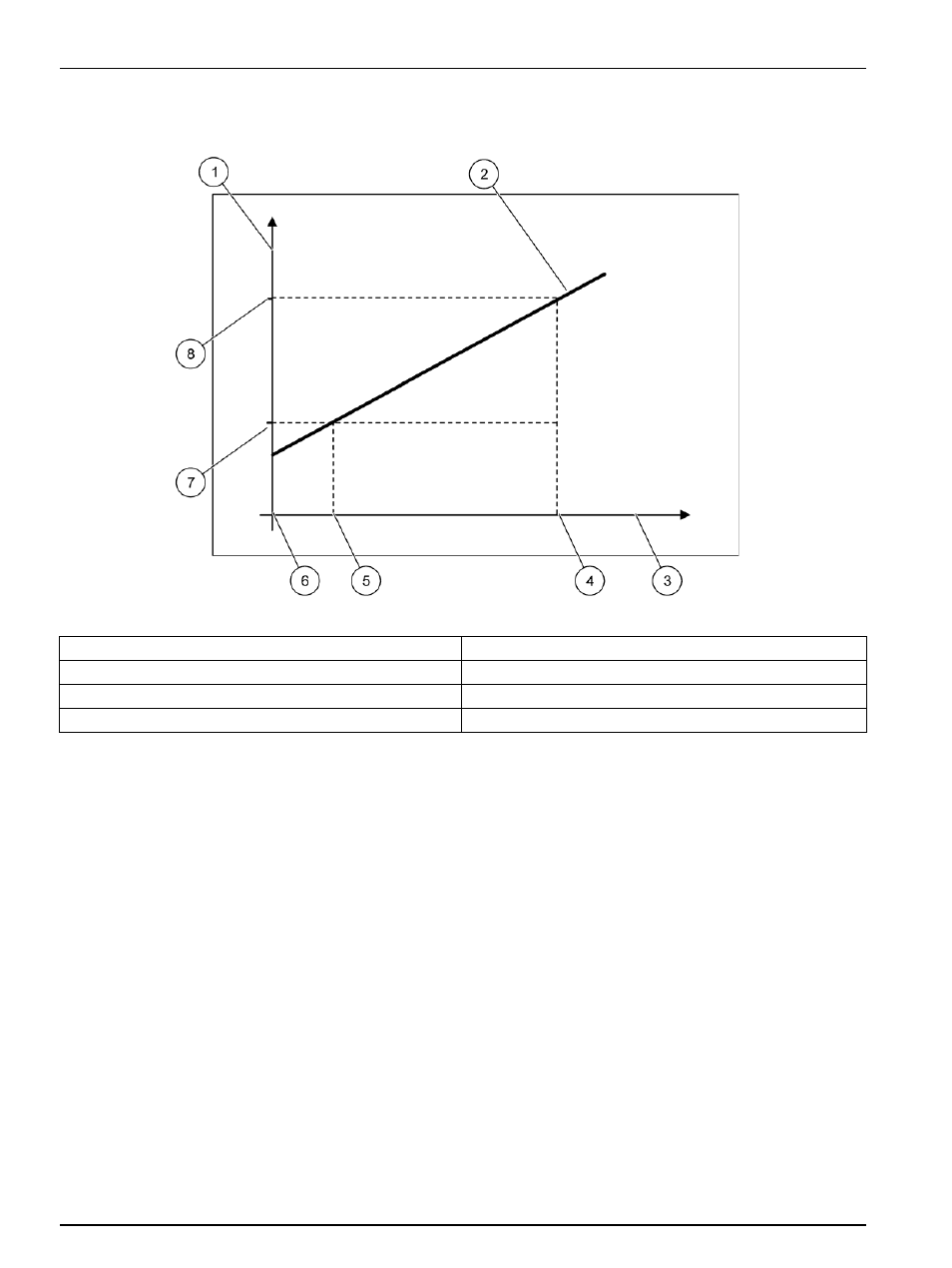

Figure 53 Output value with an input range of 4
–
20 mA
1
Output value (concentration) (y-axis)
5
4 mA
2
OV=f(IC)
6
0 mA
3
Input current (x-axis)
7
Low value (LV)
4
20 mA
8
High value (HV)
OV
f(IC)
HV-LV
16mA
-----------------
(IC-4mA)
×
LV
+
=
=
