91
Advanced Operations
Figure 55 and Figure 56 show the behavior of the relay in the Feeder Control function
under different conditions.

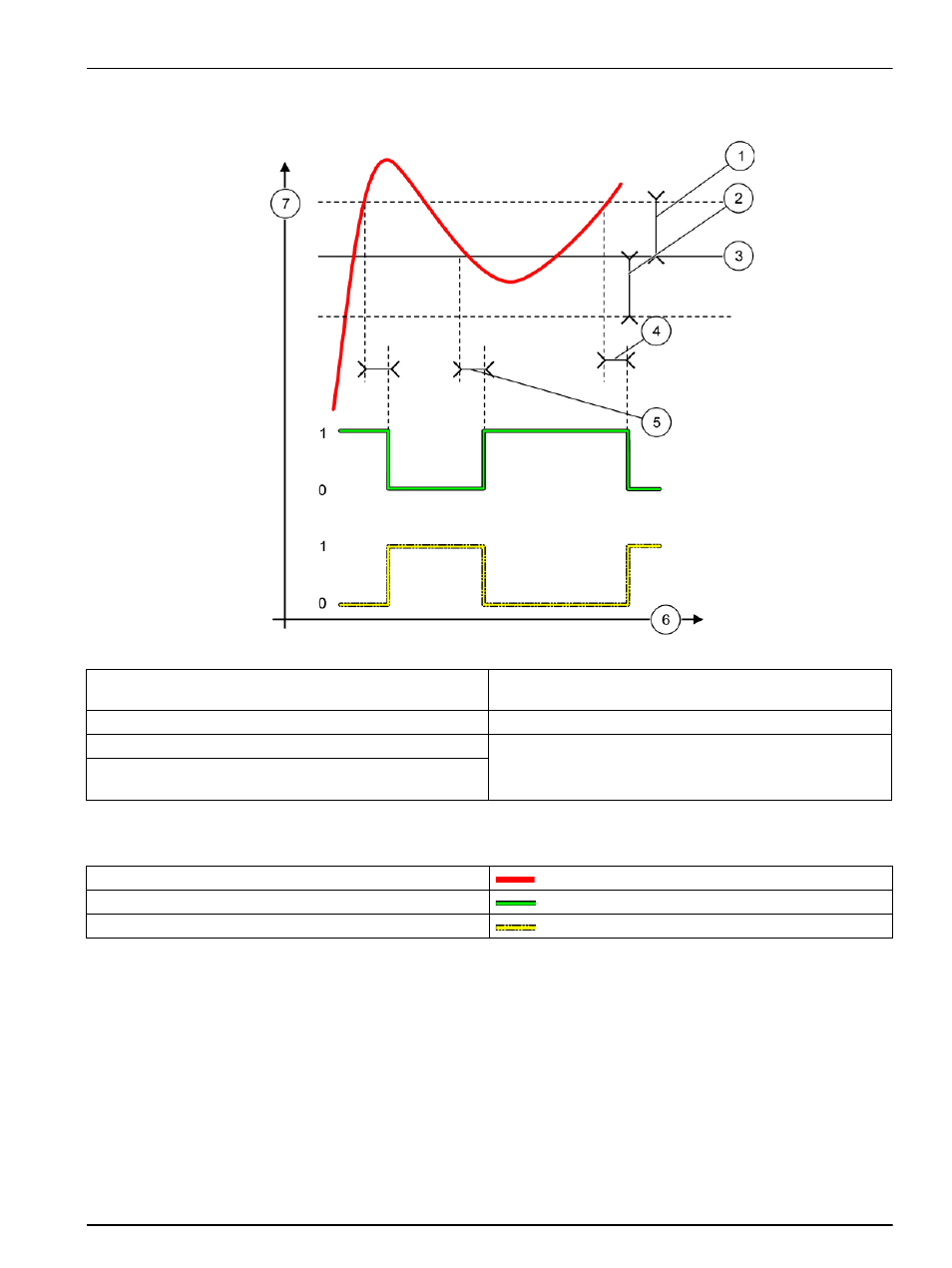

Figure 55 Relay behavior, Feeder Control mode
1 Deadband (Phase=Low) 5 ON delay (with phase set low)
OFF delay (with phase set high)
2 Deadband (Phase=High) 6 Time (x-axis)
3 Set point 7 Source (y-axis)
4 OFF delay (with phase set low)/
ON delay (with phase set high)
Table 28 Color/line code for Figure 55
Selected source
Relay contact (phase low)
Relay contact (phase high)
