Section 5
Standard Operations
5.1 The display module
The sc1000 display module is a color graphical user interface that uses touch screen
technology. The touch screen is a 5.5” (14 cm) LCD monitor. The touch screen display
must be calibrated prior to configuring or viewing data (refer to
). In
normal operation the touch screen displays the measured values for the probes selected.
One display module controls a single probe module or a number of probe modules
connected by a sc1000 network. The display module is portable and can be disconnected
and moved within the network.
Prior to configuring the system it is important to program the display language (refer to
) and the Date and Time information (refer to
5.1.1 Attach the display module to the probe module
Attach the display module to the probe module (refer to
). Connect the cable
connector from the display module to the middle socket on the probe module (refer to
.

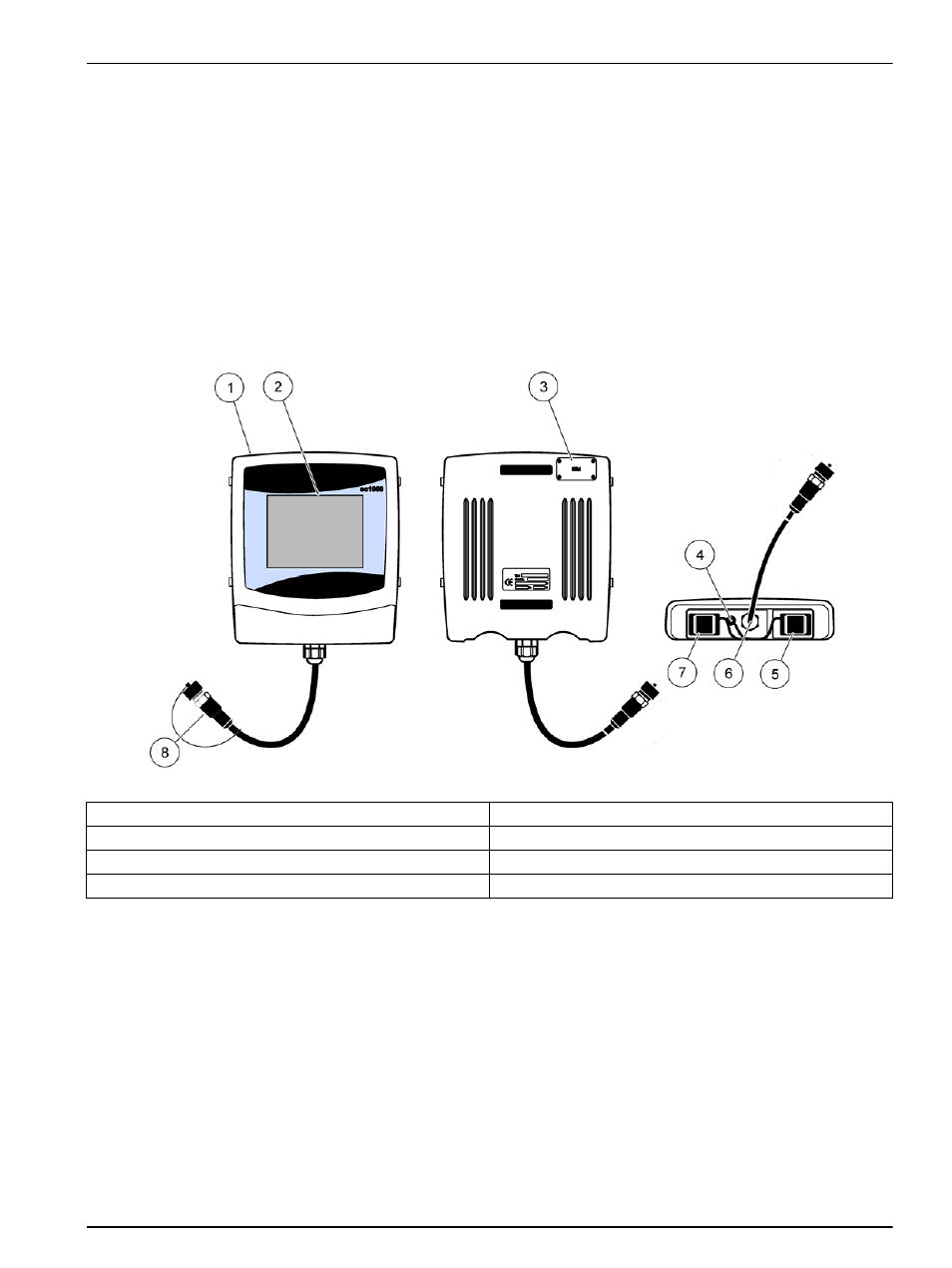

Figure 37 Display module overview
1
Display module
5
Service port
2
Display screen
6
Cable connection to the probe module
3
Access to SIM card (only for optional GSM modem)
7
Slot for storage card
4
Antenna connection (only for optional GSM modem)
8
Connector
