Nwmx1-4 front panel view -34, Wmx-1-4 switch and function of led indications -34 – Hitachi GR2000 User Manual
Page 136
The NWMX1-4 physically appears as Figure 3-34. This NIF has four ports for
connection with 8-pin modular connectors of RJ-45 in compliance with IS8877.
Table 3-36 shows the connector specifications.

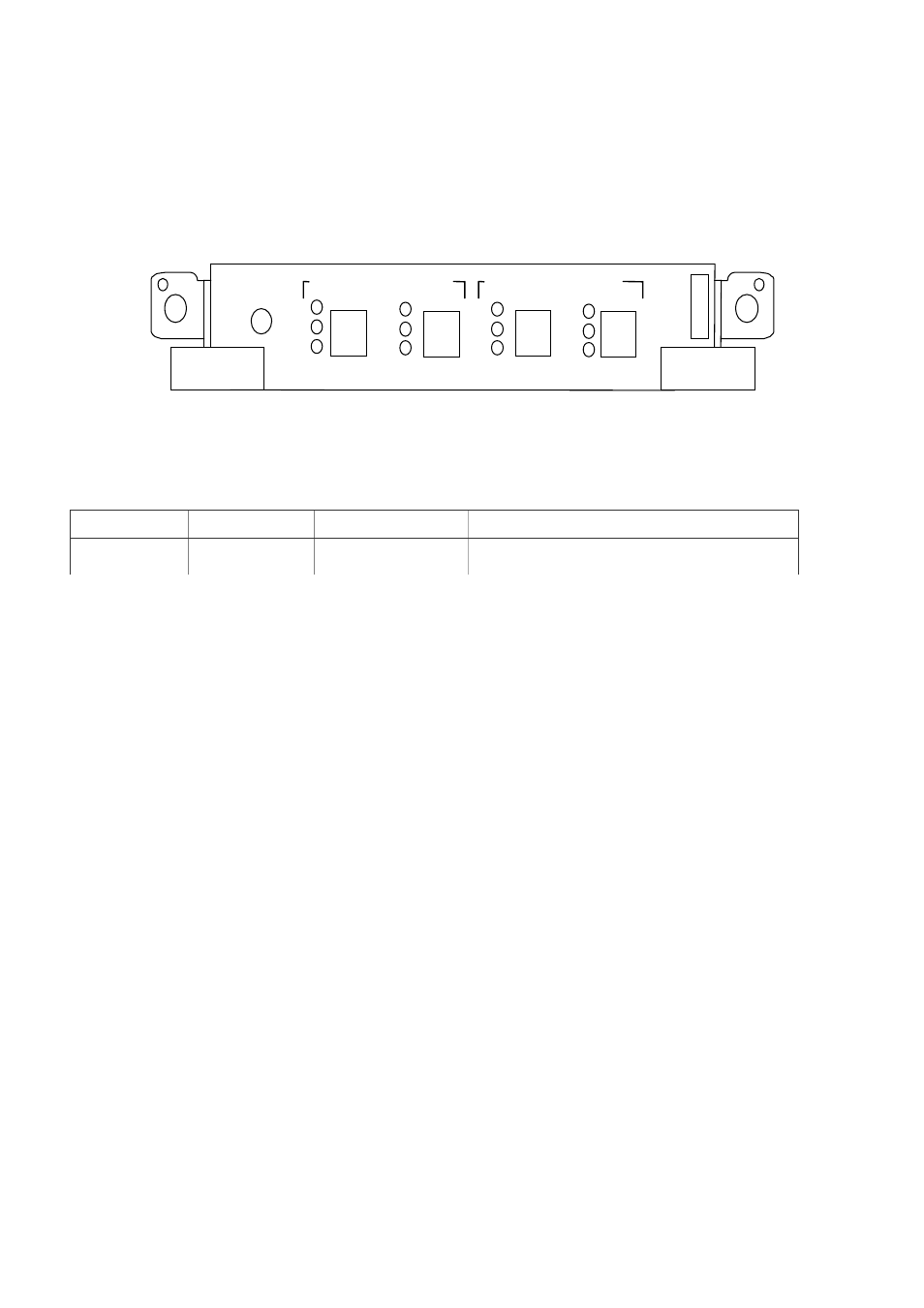

Figure 3-34 NWMX1-4 Front Panel View
Switch and LED indication
Table 3-35 WMX-1-4 switch and function of LED indications
Name
LED: Color
Status
Content
STATUS
LED: Green/
Yellow/ Red
Shows the operating
condition of NIF.
Green: Operable operation
Yellow: Blocking and the board replaceable state.
NW
M
X
-4
LINE 0
LINE 1
LINE 2
LINE 3
LINE ERR
ACT
T/R
ST
AT
U
S
ISDN/HSD 1.5Mbps (JAPAN)
ISDN/HSD(I)64k/128k(JAPAN)
