Server component identification

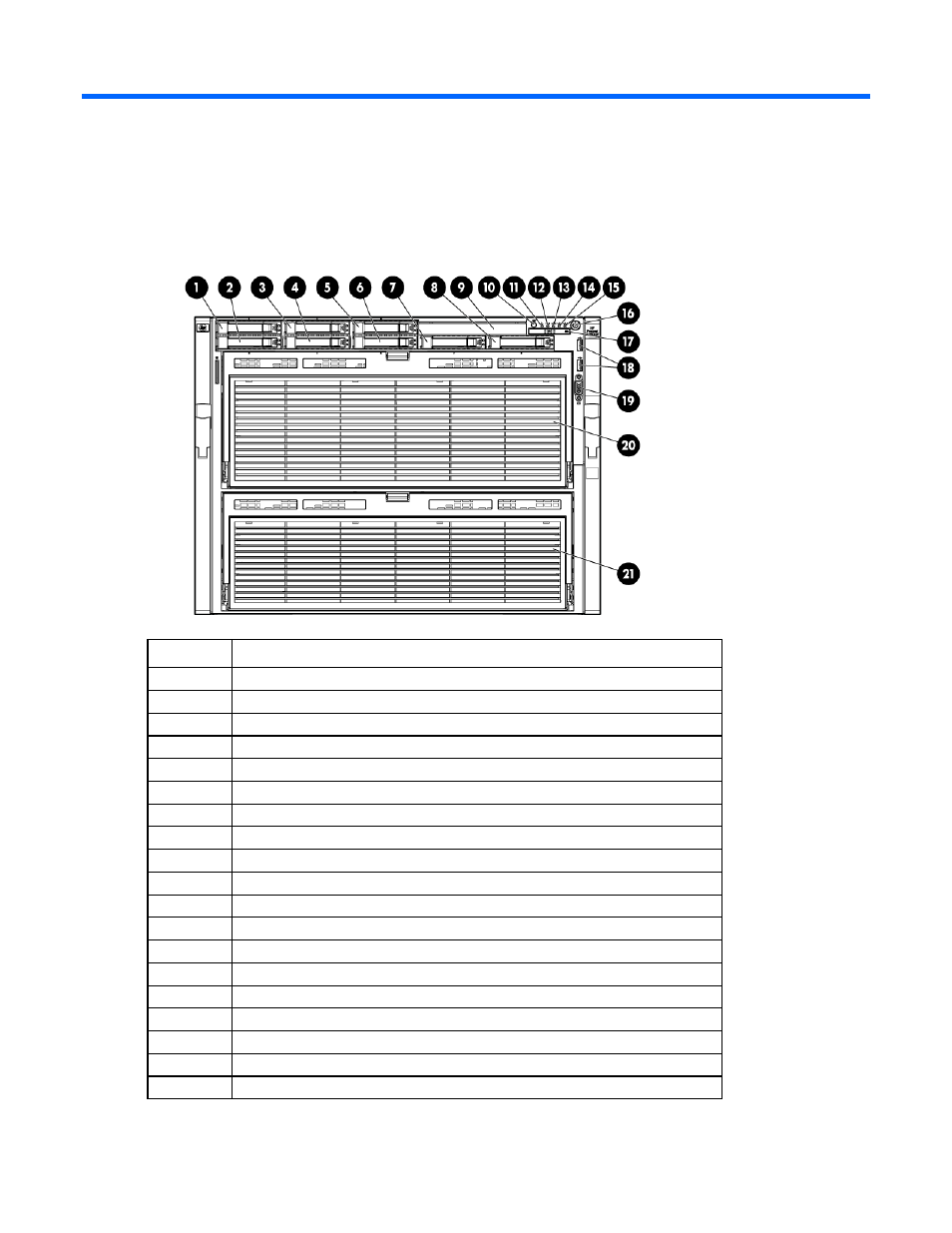

Front panel components
Item Description
1
Hard drive bay 1
2 Hard drive bay 2
3 Hard drive bay 3
4 Hard drive bay 4
5
Hard drive bay 5
6 Hard drive bay 6
7 Hard drive bay 7
8 Hard drive bay 8
9
Optical drive bay
10 UID button and LED
11 Health LED
12 NIC 1 LED
13 NIC 2 LED
14 NIC 3 LED
15 NIC 4 LED
16 Power on/Standby button and LED
17
SID
18 USB connectors
19 Video connector
