5 598-1314-00
Note: When first turned on wait about 1 1 /
2
minutes
for the circuitry to calibrate.
* resets to Auto Mode at dawn.

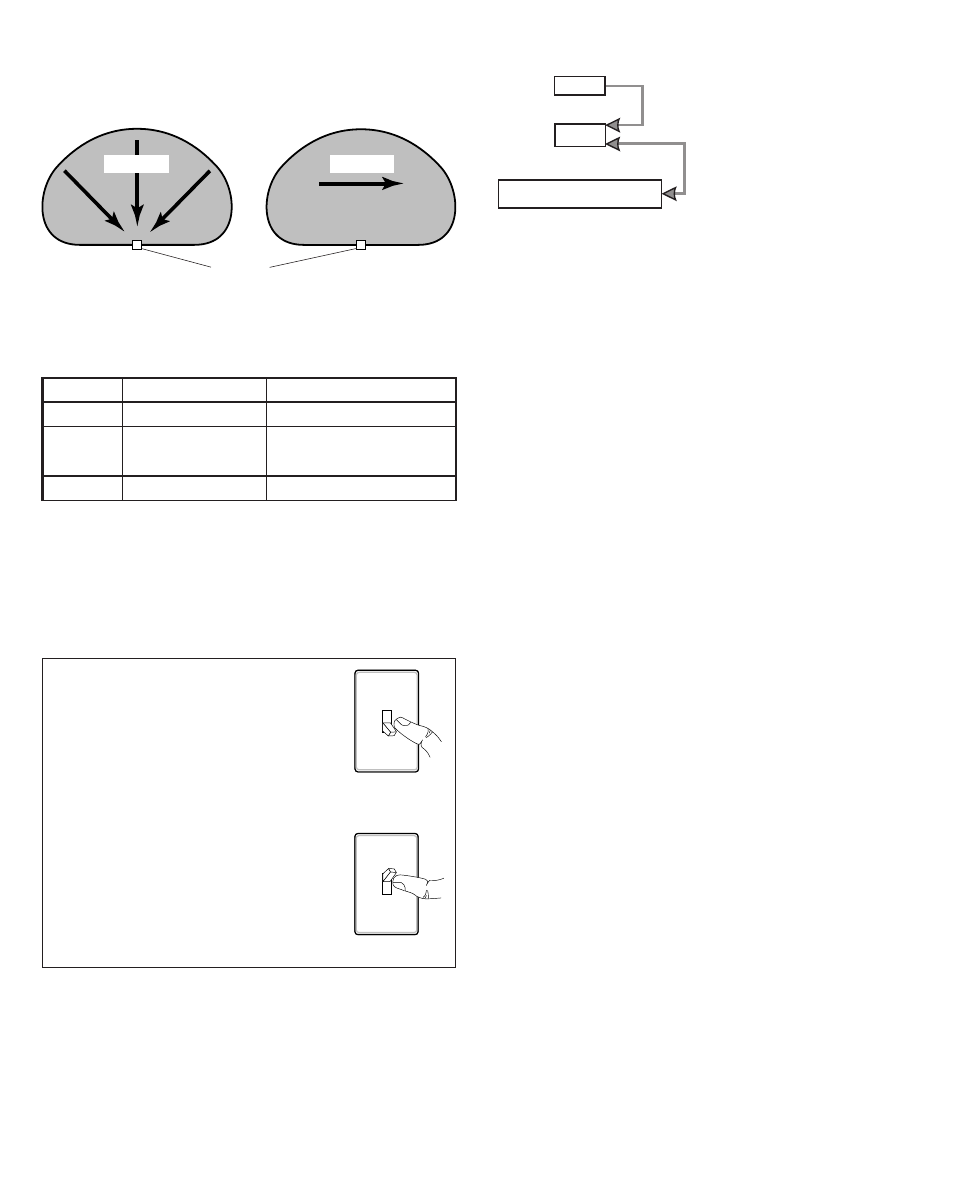

Least Sensitive Most Sensitive
The sensor is less sensitive to motion directly
towards it and more sensitive to motion across
coverage area.
Sensor
Motion Motion
OperatiOn
Mode: On-Time Works: Day Night
test 5 Seconds x x
auto 1, 5, or 10
Minutes
x
Manual To Dawn* x
MANUAL MODE
AUTO
TEST
ON-TIME Switch at 1, 5, or
10 minutes
... back on.
1 Second OFF
then...
Manual mode only works at night
because daylight returns the sen-
sor to AUTO.
Flip the light switch off for one
second then back on to toggle
between AUTO and MANUAL
MODE.
Manual mode works only with
the ON-TIME switch in the 1, 5,
or 10 position.
MODe sWitching suMMary
Flip light switch off
for one second then
back on*
* If you get confused while switching modes, turn
the power off for one minute, then back on. After the
calibration time the control will be in the AUTO mode.
ManuaL MODe
aDjustMent OF cOverage area
The sensor on this light fixture detects “motion” by the
movement of heat across the coverage area. However,
following are examples of objects that also produce
heat and can cause the sensor to trigger:
• Pools of Water
• Air Conditioners
• Dryer Vents • Animals
• Heating Vents • Automobile Traffic
If you suspect that a heat source of this type is trig-
gering the sensor, reduce the sensitivity.
speciFicatiOns
Range ........................... Up to 30 ft. (9.1 m) [varies
with surrounding tempera-
ture].
Sensing Angle .............. 180°
Electrical Load .............. Up to 100 Watt Maximum
Incandescent
Bulb Type ...................... Medium Base, Type “A”,
100 Watt Maximum
Sensor Capacity ........... 360 Watt (3.0 A) Maximum
Power Requirements .... 120 VAC, 60 Hz
Operating Modes .......... TEST, AUTO, and
MANUAL MODE
ON-Timer ...................... 1, 5, 10 minutes
Test Timer ..................... 5 Seconds
Manual Mode Timer ...... Dusk-to-Dawn
