Heath Zenith 5326 - Manual

© 2008 HeathCo LLC 598-1269-02
Model 5326
D
ual
B
rite
® Motion Sensor
Light Control
TEST
2 Shells
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Softstart lighting technology slowly increases light
intensity when lights turn on and slowly decreases
light intensity when lights turn off.
• D
ual
B
rite ® Timer.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
TEST 1 5 20
ON-TIME
Off 3 6 Dusk to
Dawn
D
ual
B
rite
® Put ON-TIME switch
on the sensor bottom
to TEST and the D
ual
-
B
rite ® switch OFF.
OPERATION
* resets to Auto Mode at dawn.
ON-TIME
TEST 1 5 20
... back on.
1 Second OFF
then...
Put the ON-TIME switch in the 1, 5,
or 20 minute position.
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.
Note: When first turned on wait about 1 1 /
2
minutes for
the circuitry to calibrate.

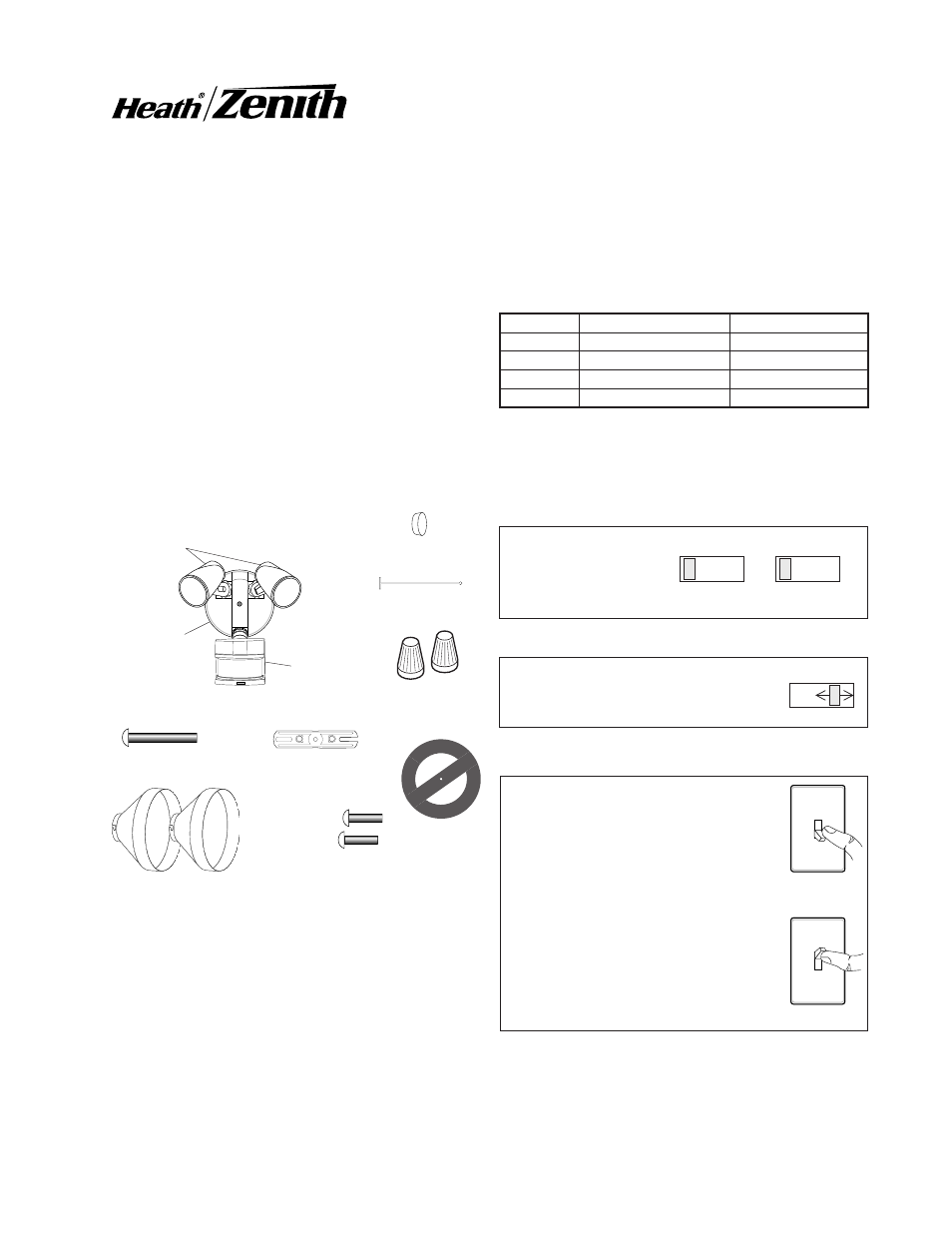

This package includes:
Light Control
Sensor
Cover
Plate
Bulb
Holders
Plastic Hanger
Rubber Plug
Gasket
6 Screws
(3 sizes included)
Mounting Strap
Mounting Bolt
2 Wire
Connectors
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a
qualified electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
Mode: On-Time Works: Day Night
Test 5 Seconds x x
Auto 1, 5, or 20 Min x
Manual To Dawn* x
Accent 3, 6 Hr, to Dawn x
AUTO
MANUAL MODE
