Heath Zenith BL-5511 - Manual

Compact 150 Watt
Motion Sensing Halogen
Model BL-5511
The Motion Sensor Quartz Security Light turns on 150
watts of quartz-halogen lighting when motion is detected
and then, after a selectable period of time, automati-
cally turns the lighting off. The built-in photocell keeps
the lighting off during daylight hours.
Cover
Plate
Sensor
3 Wire
Connectors
4 Screws
(2 sizes)
Light Fixture
Cover Plate
Gasket
© 2007 HeathCo LLC 598-1324-01
Halogen
Bulb
OPERATION
Move ON-TIME Switch
to 10 minutes
Mode Switching Summary
Flip switch off for
one second then
back on*
* resets to Auto Mode at dawn.
TEST
AUTO
MANUAL MODE
ON-TIME
ON-TIME
Requirements
• The light control requires 120-volts AC. Do not con-
nect through a dimmer or other electronic switch.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
• The backplate has knockouts so the sensor can be
mounted on most junction boxes.
• In some applications a universal adaptor plate may
be needed. Adaptors are available at Home Centers
and Electrical Supply Stores.
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the
calibration time (1
1 /
2
min.) the control will be in the
AUTO mode.
10 TEST
10 TEST
MANUAL MODE
AUTO
TEST
... back on.
1 Second OFF
then...
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the ON-
TIME switch in the 10 position.

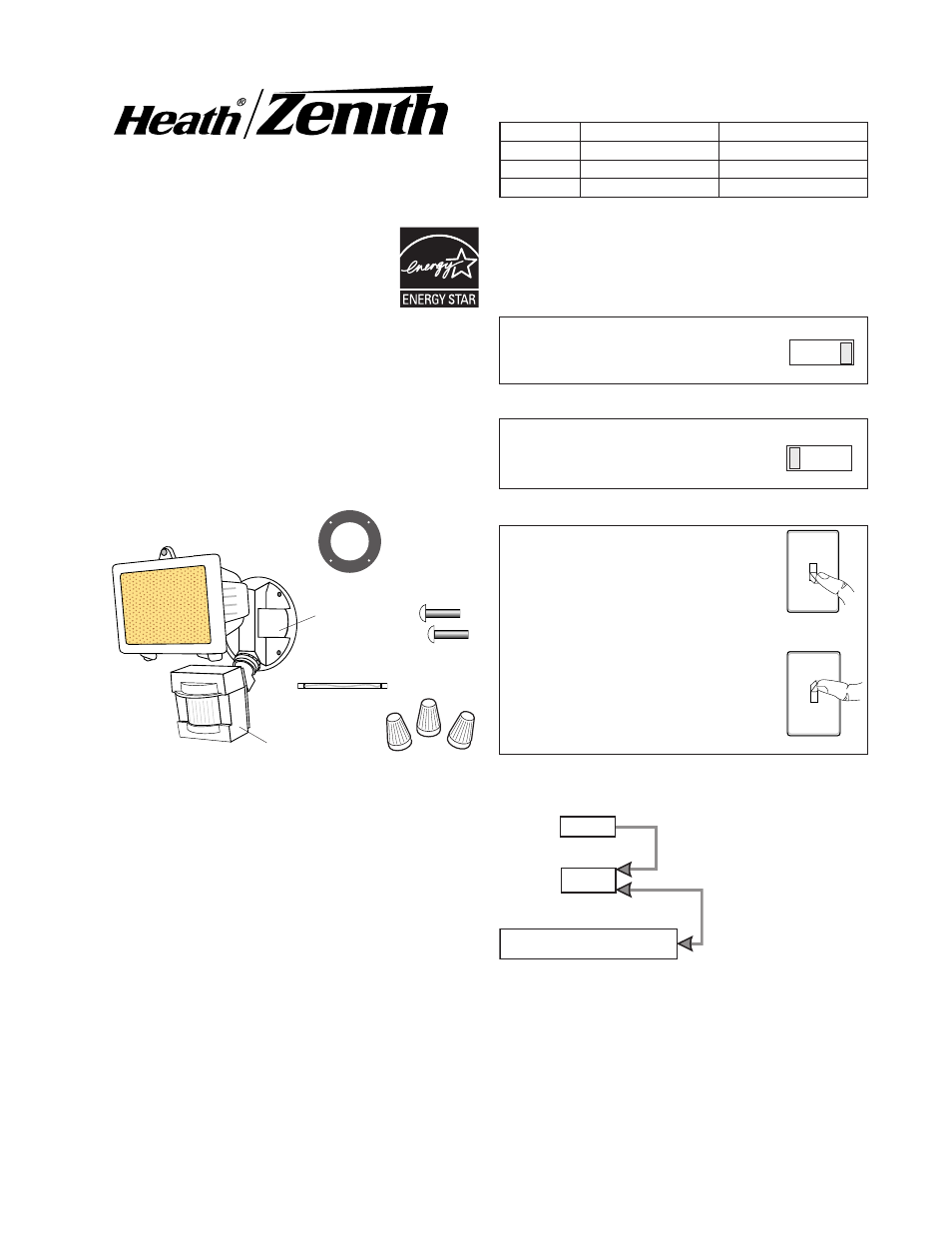

This package includes:
Note: When first turned on wait about 1 1 /
2
minutes for
the circuitry to calibrate.
Put the ON-TIME switch in the 10
minute position.
Put the ON-TIME switch on the bottom
of the sensor in the TEST position.
Mode: On-Time Works: Day Night
Test 5 Seconds x x
Auto 10 Min x
Manual Until Dawn* x
