2 598-1314-00

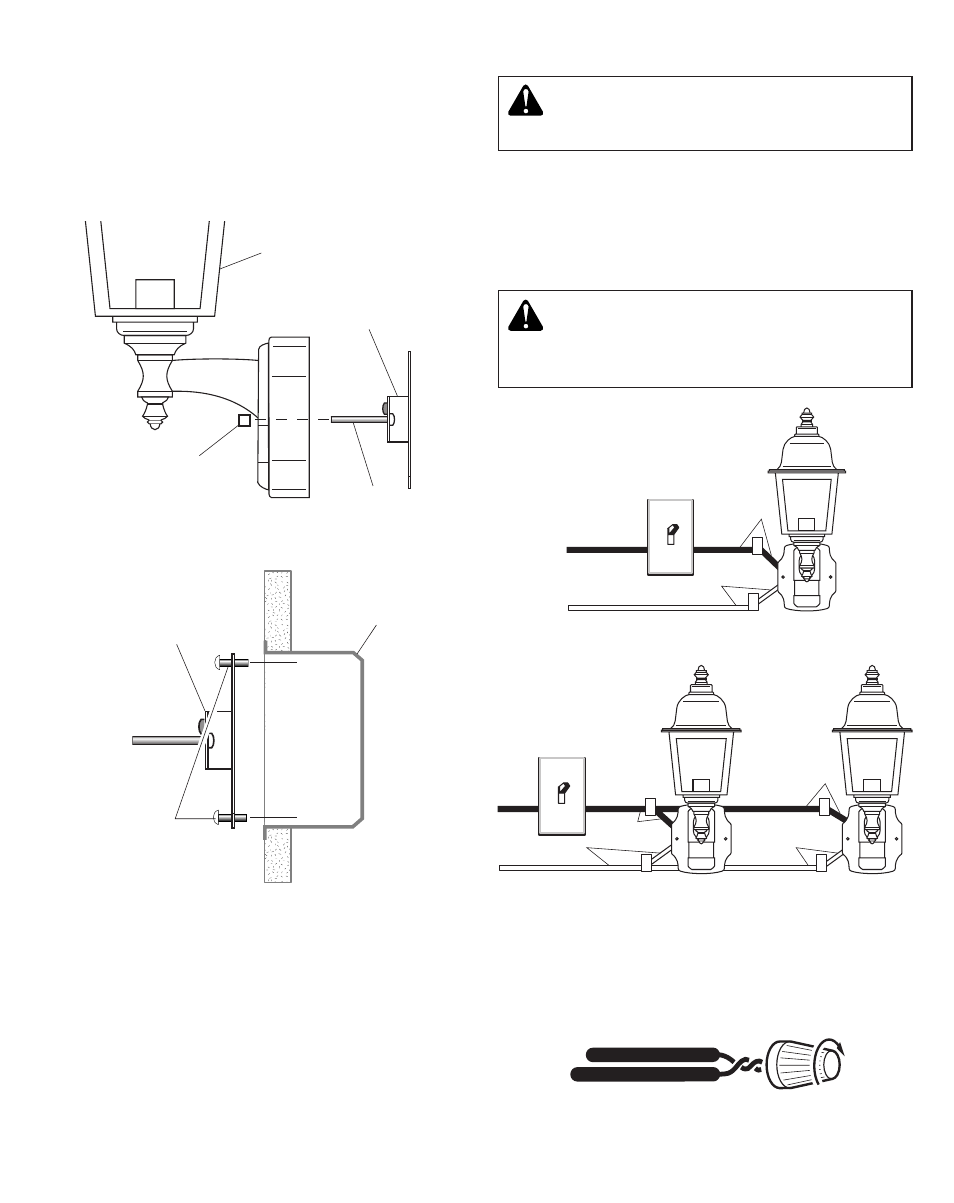

Wiring instaLLatiOn
For best performance, mount the fixture about 6 feet
(1.8 m) above the ground.
1. Remove two decorative nuts.
2. Remove X-Bar.
3. Tighten mounting screws on X-Bar finger tight.
4. Attach X-Bar to junction box.
Junction Box
X-Bar
Decorative Nut
Lantern
Lantern Mounting
Screw
X-Bar
One Motion Light
BLACK
WHITE
Two Motion Lights
BLACK
BLACK
WHITE
cautiOn: DO nOt connect the reD wire
unless you want to control other lights from
the motion sensor (see Optional Wiring).
WHITE
Note: All wiring should be run in accordance with the
National Electrical Code through conduit or another
acceptable means.
contact a qualified electrician
if there is any question as to the suitability of
the system.
Warning: turn power off at circuit breaker
or fuse.
Bracket Mounting
Screw
Connect the fixture wires to the wires in the junction
box. Twist the wires together and secure with wire
connectors.
Note: We recommend having an assistant help hold
the lantern assembly during the wiring process.
