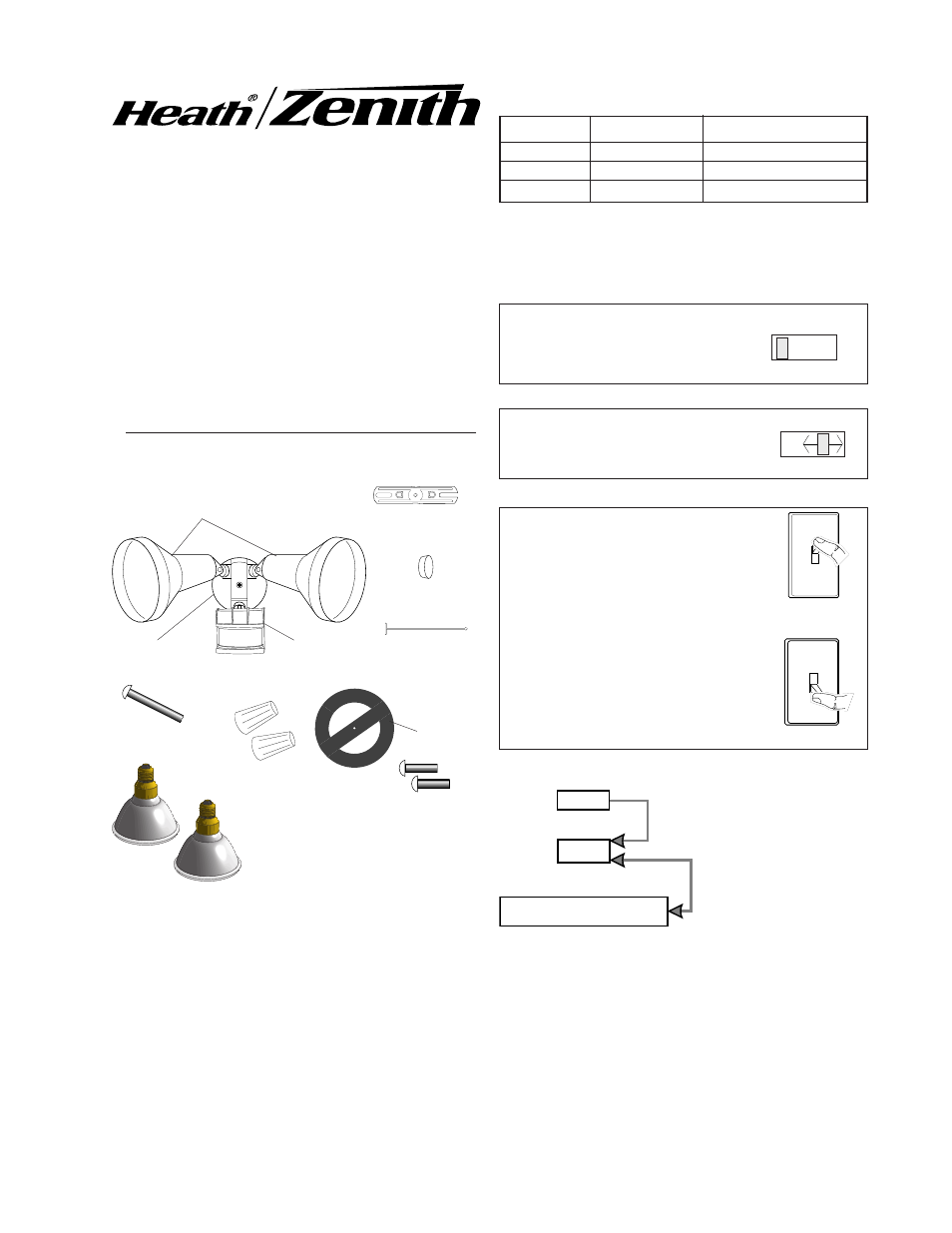

Heath Zenith HEATH CB-2011 - Manual

Mode: On-Time: Works: Day Night
Test 5 Sec x x
Auto 1, 5, 20 min. x
Manual Until Dawn* x
OPERATION
Model CB-2011
Motion Sensor
Light Control with
Protective Lamp
Shields
© 2003 DESA Specialty Products™ 598-1111-01
* resets to Auto Mode at dawn.
TEST
Light Control
Sensor Cover
Plate
Lamp
Holders
6 Screws
(3 sizes included)
Gasket
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.
Requirements
• The Light Control requires 120-volts AC.
• If you want to use the Manual Mode, the control must
be wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
TEST 1 5 20
ON-TIME Put ON-TIME switch on the sensor
bottom to TEST.
MANUAL MODE
ON-TIME
TEST 1 5 20
... back on.
AUTO
1 Second OFF
then...
Move ON-TIME Switch to
1, 5 or 20 minutes
Mode Switching Summary
Flip light switch off for
one second then back
on*
MANUAL MODE
AUTO
TEST
Note: When first turned on wait about 1 1 /
2
minutes for
the circuitry to calibrate.
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the
calibration time the control will be in the AUTO mode.
Mounting Bolt
Mounting Strap
Rubber Plug
Plastic Hanger
2 PAR Lamps
2 Wire
Connectors
This package includes:
Put the ON-TIME switch in the 1, 5,
or 20 minute position.
