4 598-1314-00

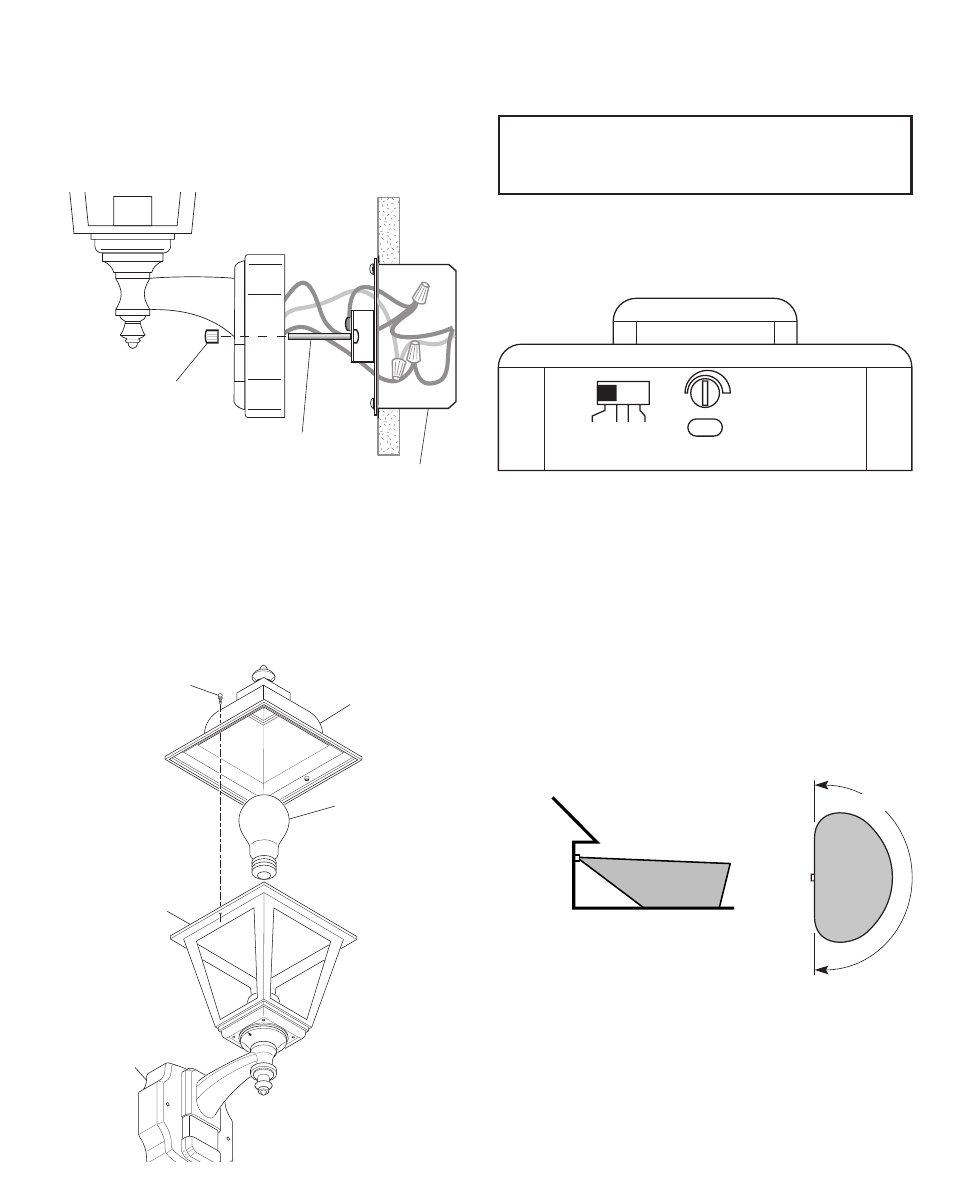

testing anD aDjustMents
1. turn on the circuit breaker and light switch.
Note: Sensor has a 1 1 /
2
minute warm up period
before it will detect motion. When first turned on
wait 1
1 /
2
minutes.
2. Set:
ON-TIME switch to TEST
SENSITIVITY dial to Midway
3. Walk through the coverage area noting where you
are when the lights turn on. In TEST mode, light
will stay on for 5 seconds after sensing motion and
then turn off.
4. Adjust the SENSITIVITY to increase or decrease
the range as needed. Too much sensitivity may
cause false triggering due to heat sources in the
coverage area (see Adjustment of Coverage Area
or Troubleshooting section).
5. Set the amount of ON-TIME you want the light
to stay on after motion is detected (1, 5, or 10
minutes).
Maximum Range Maximum
Coverage Angle*
(Top View)
FinaL asseMBLy
1. Push the wires into the junction box. Make sure
none of the wires get pinched.
2. Slide the fixture assembly onto the mounting screws.
Tighten decorative nuts removed in step 1 of Instal-
lation section securely against fixture base.
Junction Box
Mounting Screw
Decorative Nut
3. Install one medium base light bulb (100 Watt
maximum).
4. Place top cover onto fixture and attach using
the two decorative nuts (included). Hand tighten
only.
5. After completing the tests on page 5, caulk around
fixture base with silicone weather sealant.
Top Cover
Decorative Nut
Light Bulb (100
Watt Maximum)
Fixture Assembly
Caulk Around
Fixture Base
TEST 1 5 10
MINUTE
– +
SEN
30 ft.
(9.1 m)
6 ft.
(1.8 m)
180°
