HP 8517B S-Parameter Test Set Manual 3-16

CAUTION

Important! The test set RF connector becomes loosened easily. Hold the RF
cable securely throughout the remainder of this procedure. Do not allow the
cable to rotate.

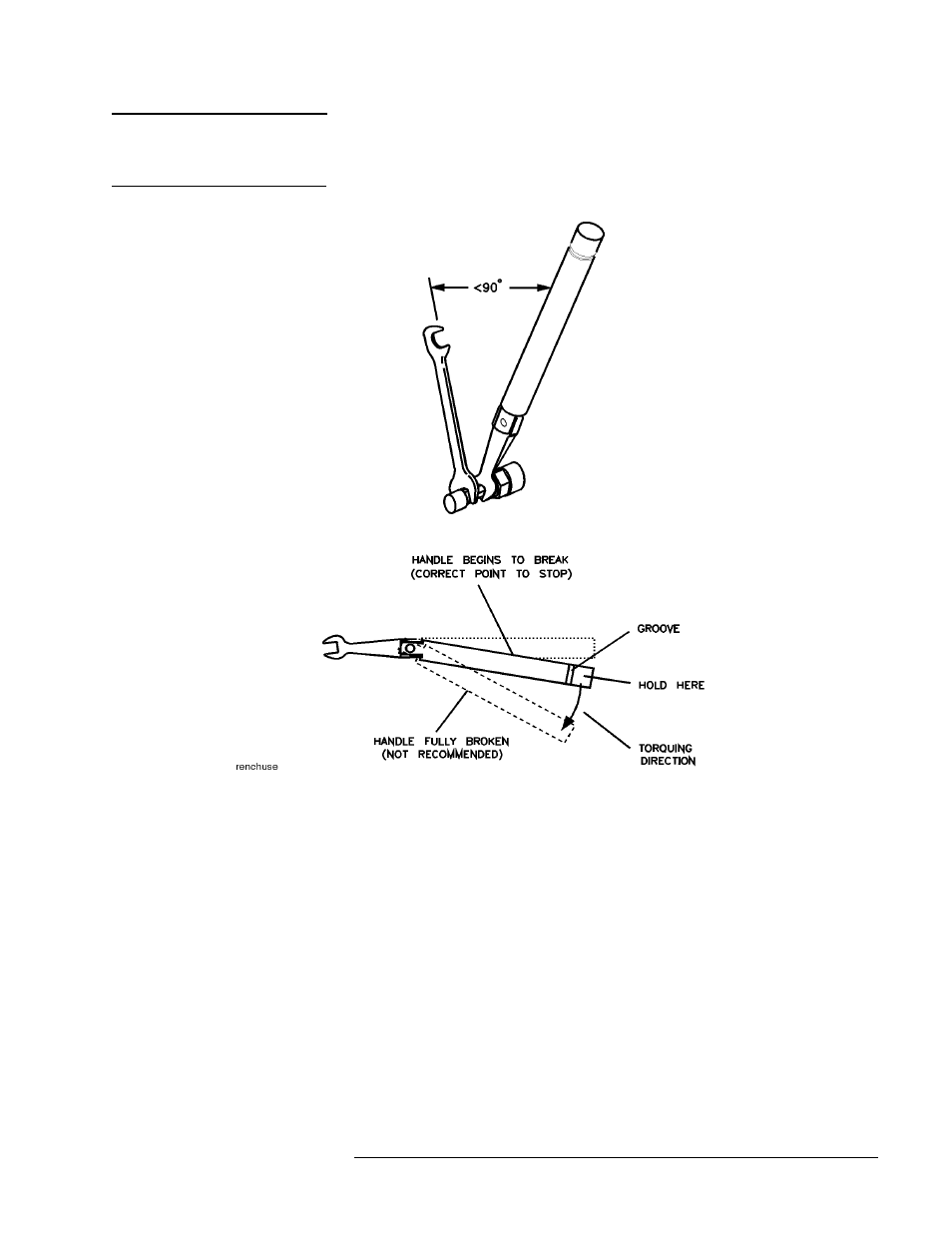

Figure 3-5

Using a Torque Wrench Correctly

Positioning the thumb-screw

See Figure 3-6. Position the clamp so the thumb-screw is positioned at the
top of the clamp.

•

Turn the clamp to visually align the clamp flats with the flats on the test
port connector nut.

•

This positioning minimizes rotating the connector in the procedure step.
