HP 8517B S-Parameter Test Set Manual 2-5
Installation
Configuring the Test Set in a System
Configuring the Test Set in a System

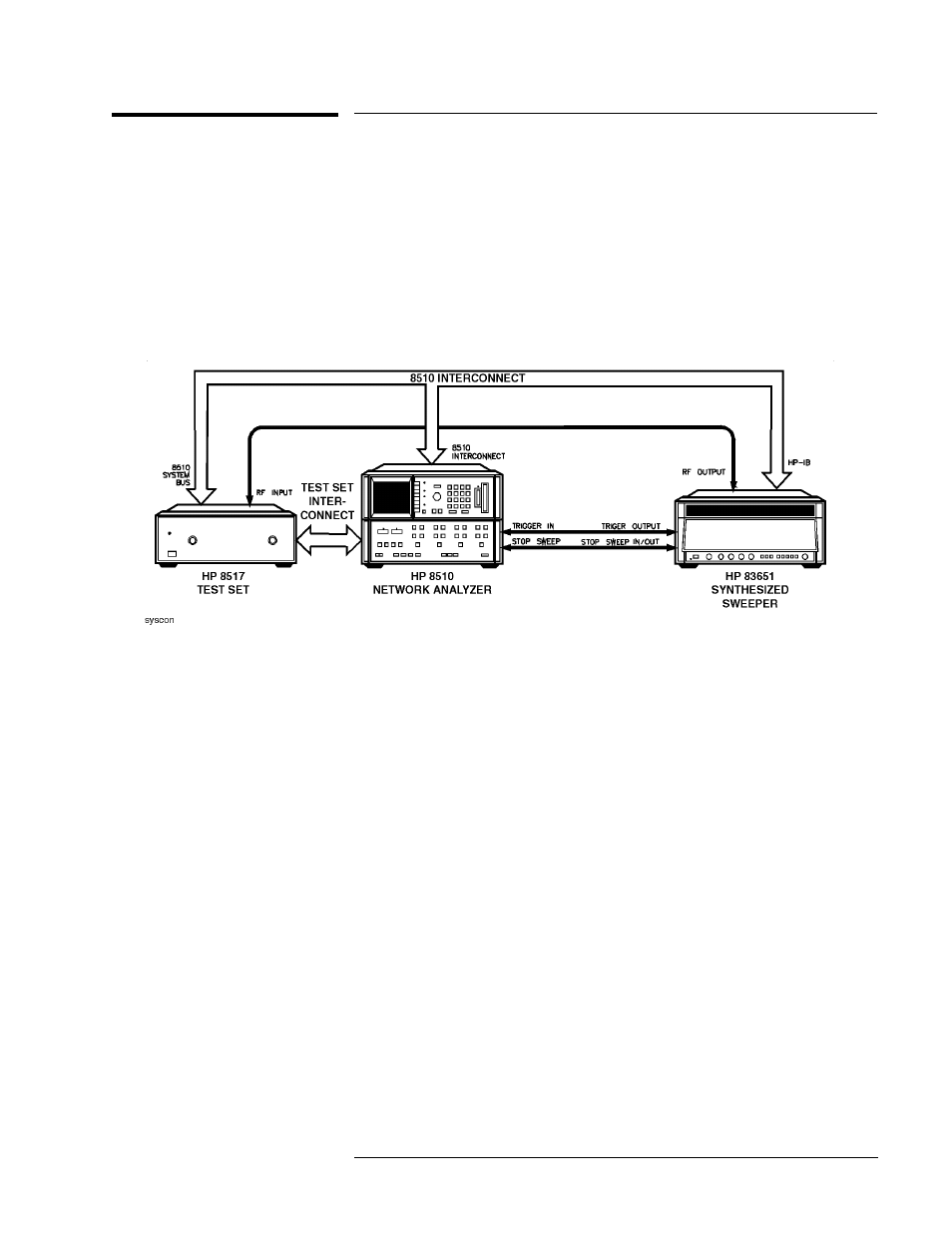

Figure 2-3 illustrates the cable connections for installing an HP 8517B in a
system. Refer to the information that follows to install the test set.
Figure 2-3
Configuring an HP 8517B Test Set in a System
